Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

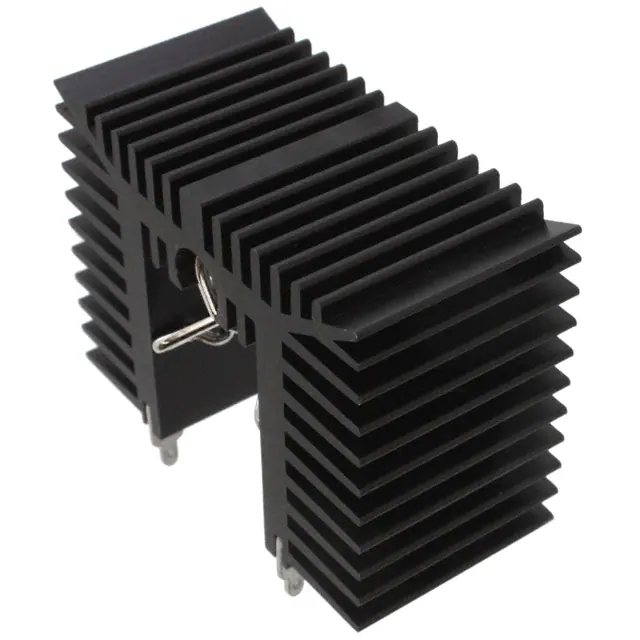

MA-301-27EHEATSINK W/CLIP - TO-247/TO-264 |
1,454 | 11.05 |
|
Datasheet |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 1.060" (26.92mm) | 2.200" (55.88mm) | - | 1.712" (43.48mm) | - | - | 4.60°C/W | Aluminum | Black Anodized |
|

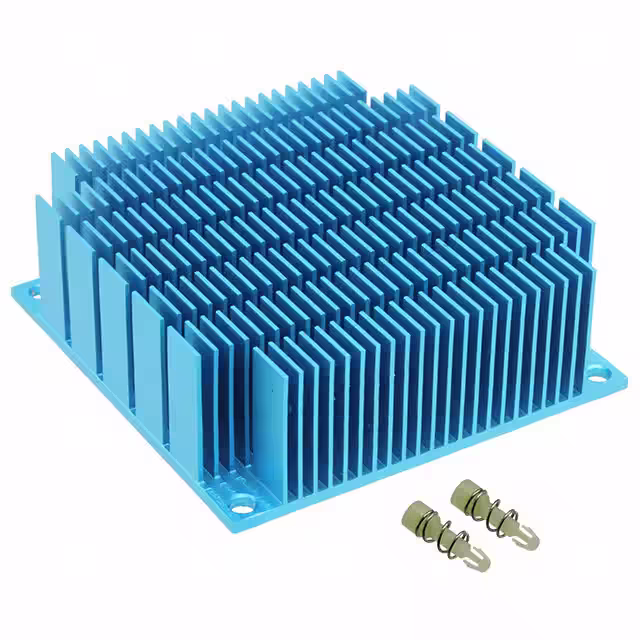

ATS-P1-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
1,022 | 10.40 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
1542199-4SALEABLE PACKAGED VERSION. |
3,747 | 9.95 |
|
Datasheet |
- | Tray | Active | Top Mount | - | - | Cylindrical | - | - | 0.984" (24.99mm) OD | 0.837" (21.26mm) | - | - | - | - | Black Anodized |
|
ATS-H1-28-C1-R0HEATSINK 70X70X15MM XCUT |
2,672 | 10.44 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
566010B02800GHEATSINK TO-220 CLIP-ON W/TABS |
1,119 | 9.76 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | Multiwatt, SIP | Clip and Board Locks | Rectangular, Fins | 1.220" (30.99mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 5.00°C/W @ 200 LFM | 11.50°C/W | Aluminum | Black Anodized |
|
ATS-H1-208-C3-R0HEATSINK 70X70X6MM XCUT T412 |
4,580 | 10.47 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-156-C2-R0HEATSINK 40X40X25MM L-TAB T766 |
2,544 | 10.54 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UP1-348-CBUP1-348-CB DISSIPATOR |
1,982 | 0.00 |
|
Datasheet |
UP1 | Tray | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.500" (12.70mm) | - | - | 10.40°C/W | - | - |
|
|
ATS-50290P-C4-R0HEATSINK 29X29X17.5MM CUSTOM TIM |
1,277 | 10.54 |
|
- |
maxiGRIP, maxiFLOW | Box | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

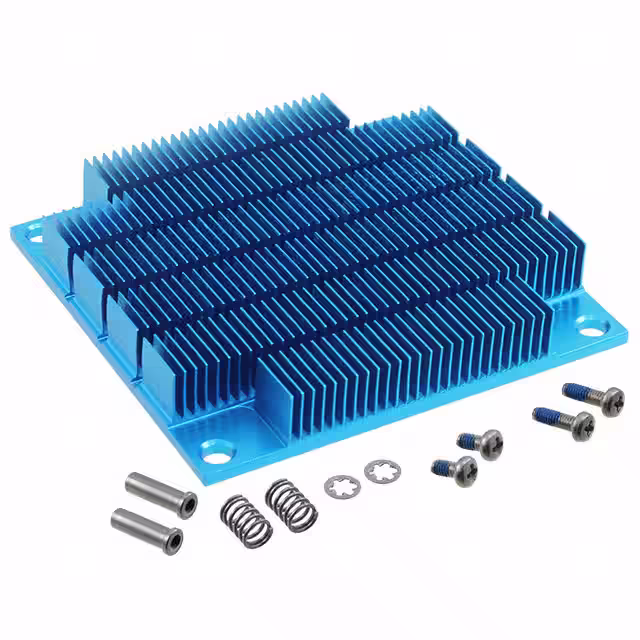

ATS-H1-111-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
3,439 | 10.57 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
2262RGHEATSINK |
4,365 | 10.63 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-H1-136-C1-R0HEATSINK 70X70X25MM XCUT |
2,510 | 10.63 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-209-C3-R0HEATSINK 70X70X10MM XCUT T412 |
2,454 | 10.64 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
MV-302-55EHEATSINK FOR TO-247 TO-264 |
3,742 | 11.24 |
|
Datasheet |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 2.170" (55.12mm) | 2.200" (55.88mm) | - | 1.712" (43.48mm) | 5.0W @ 20°C | 1.00°C/W @ 300 LFM | - | Aluminum | Degreased |
|

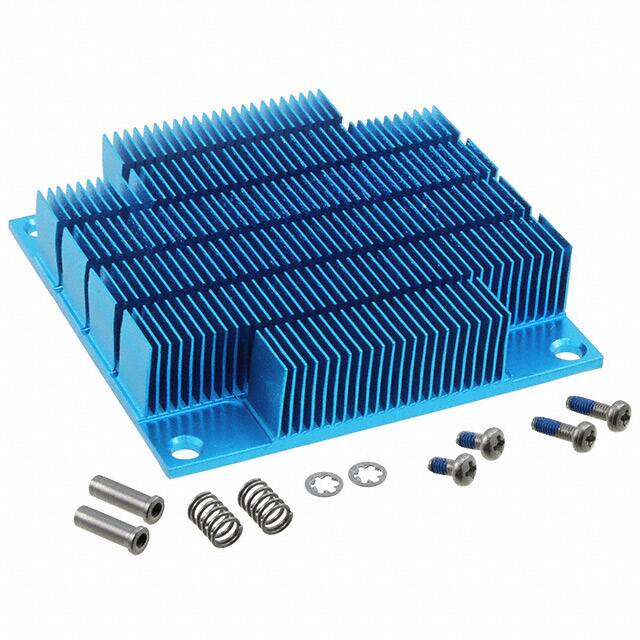

ATS-H1-112-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
2,348 | 10.67 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 26.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
3,514 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
1,528 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
4,099 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
2,911 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
1,259 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
