Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

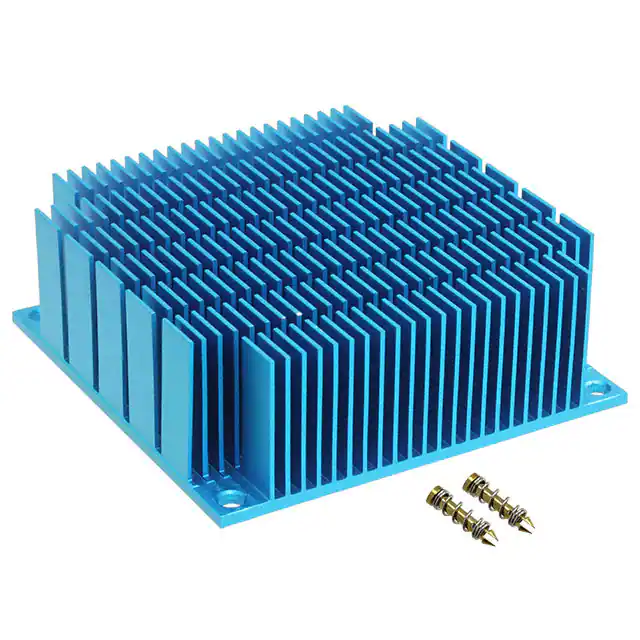

ATS-19E-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
4,786 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05A-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
2,784 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
V4330BPROFILE HEATSINK |
2,562 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2263RGHEATSINK |
3,460 | 10.71 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-H1-209-C2-R0HEATSINK 70X70X10MM XCUT T766 |
4,613 | 13.82 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.27°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-133-C2-R0HEATSINK 70X70X10MM XCUT T766 |
3,684 | 13.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04C-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
3,583 | 13.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11C-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
1,864 | 13.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06D-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
1,570 | 13.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
680-10KHEATSINK TO-220 OMNIDIRECT BLK |
1,261 | 10.85 |
|
Datasheet |
680 | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.000" (25.40mm) | 7.5W @ 52°C | 2.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-210-C3-R0HEATSINK 70X70X12MM XCUT T412 |
4,594 | 10.87 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | - | 5.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-53425W-C2-R0HEAT SINK 42.5X42.5X24.5MM |
2,189 | 10.88 |
|
- |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.768" (19.50mm) | - | - | - | Aluminum | Black Anodized |
|

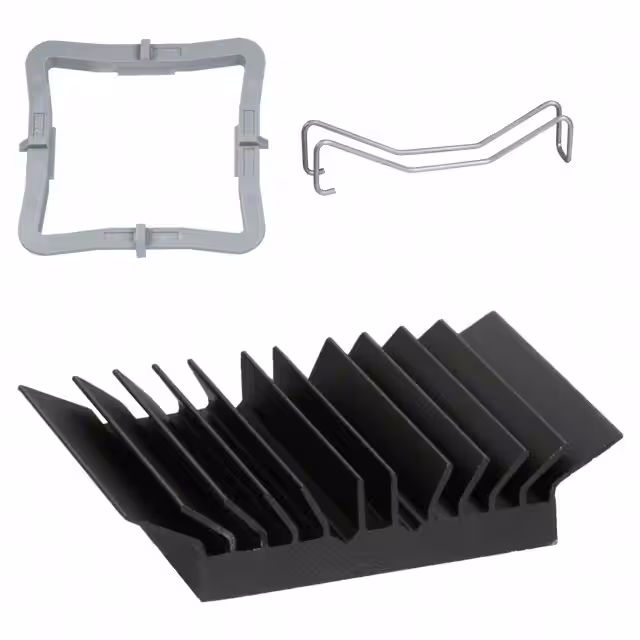

ATS-51325D-C1-R0HEAT SINK 32.5 X 32.5 X 9.5MM |
4,163 | 10.85 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.374" (9.50mm) | - | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
401VHEATSINK POWER TO-3 |
1,250 | 11.04 |
|
Datasheet |
401 | Bulk | Active | Board Level, Extrusion | TO-3 | Press Fit | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 80°C | 1.50°C/W @ 250 LFM | - | Aluminum | Black Anodized |
|
|
ATS-19F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
4,758 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01C-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
3,043 | 10.69 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
3,942 | 11.03 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
1542198-4SALEABLE PACKAGED VERSION |
1,581 | 10.57 |
|
Datasheet |
- | Tray | Active | Top Mount | - | - | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.837" (21.26mm) | - | - | - | - | - |
|
ATS-52290P-C0-R0HEATSINK 29X29X17.5MM W/OUT TIM |
3,081 | 8.88 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10A-30-C2-R0HEATSINK 70X70X25MM XCUT T766 |
1,660 | 13.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
