Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
566102B00000GBOARD LEVEL HEAT SINK |
2,033 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6260B-MT5HEAT SINK |
1,166 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6032DGHEAT SINK |
2,733 | 3.37 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 6.0W @ 60°C | 6.00°C/W @ 200 LFM | 8.30°C/W | Copper | Tin |
|
|
581101B02500GHEAT SINK |
1,167 | 3.96 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 3.0W @ 50°C | 5.00°C/W @ 200 LFM | 16.80°C/W | Aluminum | Black Anodized |
|
|
335314B00032GHEAT SINK |
4,635 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.433" (11.00mm) | - | 5.30°C/W @ 200 LFM | 1.00°C/W | Aluminum | Black Anodized |
|
|
530614B05300GHEAT SINK |
2,678 | 5.44 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
533701B02552GHEAT SINK |
2,482 | 0.00 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-247 | Clip and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 12.0W @ 70°C | 4.00°C/W @ 200 LFM | 5.70°C/W | Aluminum | Black Anodized |
|
|
AH10928V10000XEHEAT SINK EXTRUSION |
3,378 | 0.00 |
|
- |
HS | - | Active | Board Level, Vertical, Extrusion | Aluminum Housed Resistor | Bolt On | Rectangular, Fins | 10.000" (254.00mm) | 9.750" (247.65mm) | - | 2.280" (57.91mm) | - | - | - | Aluminum Alloy | Unfinished |
|
ATS-PCB1005HEATSINK TO220 HOR MNT W/TAB |
4,445 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.742" (18.85mm) | 0.860" (21.84mm) | - | 0.400" (10.16mm) | - | 11.00°C/W @ 200 LFM | 23.20°C/W | Aluminum | Black Anodized |
|

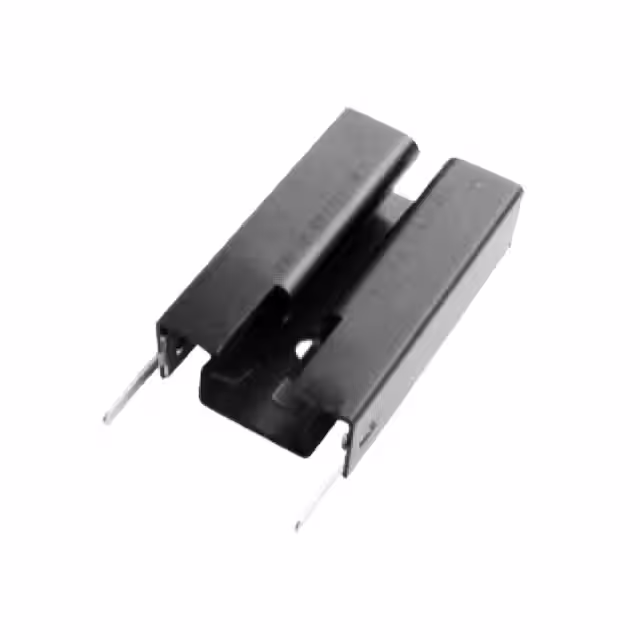

ATS-PCB1007HEATSINK TO-220 VERT MNT W/TAB |
3,089 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.375" (34.93mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | - | 11.00°C/W @ 200 LFM | 16.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1008HEATSINK TO-220 W/TABS |
1,112 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.375" (34.93mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | - | 11.00°C/W @ 200 LFM | 16.00°C/W | Aluminum | Black Anodized |
|

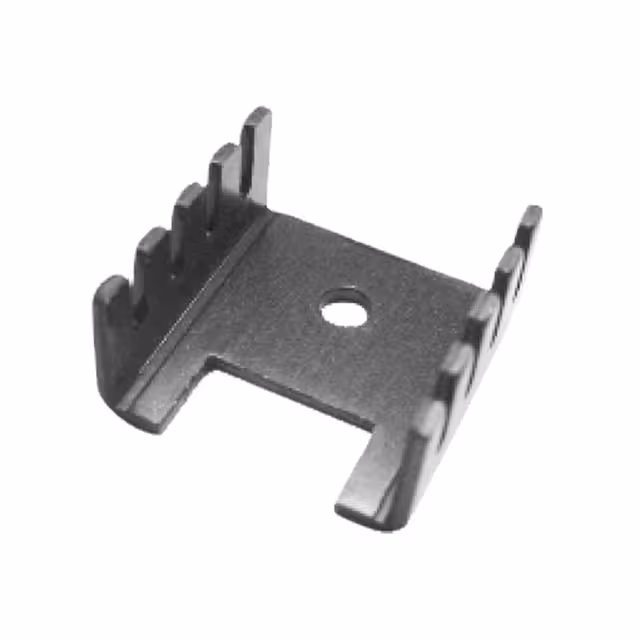

ATS-PCB1010HEATSINK TO-220 HOR MNT LOW PRO |
3,294 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Square, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | - | 10.00°C/W @ 200 LFM | 24.00°C/W | Aluminum | Black Anodized |
|

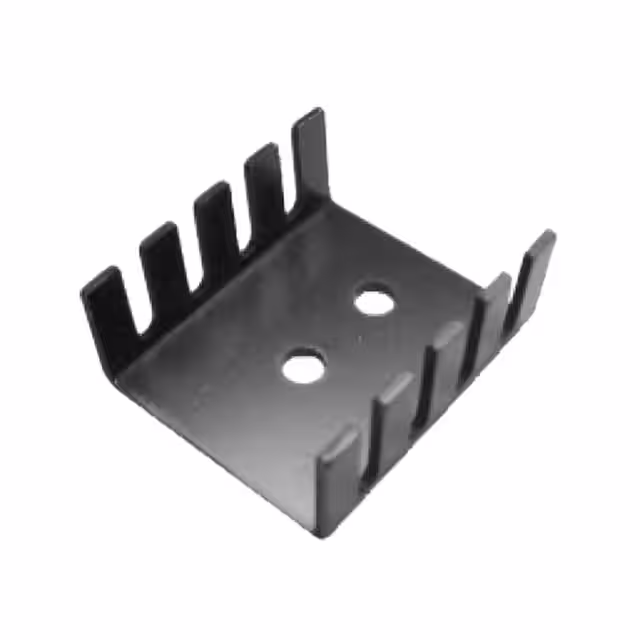

ATS-PCB1011HEATSINK TO-220 DUAL MNT BLACK |
4,134 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.189" (30.20mm) | 1.012" (25.70mm) | - | 0.496" (12.60mm) | - | 11.00°C/W @ 200 LFM | 16.70°C/W | Aluminum | Black Anodized |
|
ATS-PCB1012HEATSINK TO-220 BLACK 6-32NUT |
1,788 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | - | 12.00°C/W @ 200 LFM | 25.90°C/W | Aluminum | Black Anodized |
|

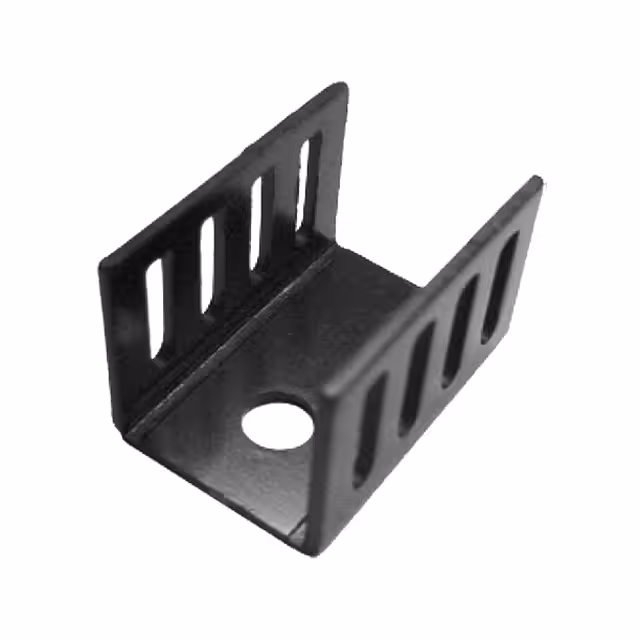

ATS-PCB1015HEATSINK LOW PRO BLACK TO-220 |
3,540 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | 10.20°C/W @ 200 LFM | 25.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1016HEATSINK TO-220 BLACK |
3,338 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.240" (31.50mm) | - | 0.368" (9.35mm) | - | 12.50°C/W @ 200 LFM | 20.60°C/W | Aluminum | Black Anodized |
|
ATS-PCB1020HEATSINK TO-220 DUAL BLACK |
1,067 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 0.780" (19.81mm) | - | 0.850" (21.60mm) | - | 5.00°C/W @ 200 LFM | 6.40°C/W | Aluminum | Black Anodized |
|

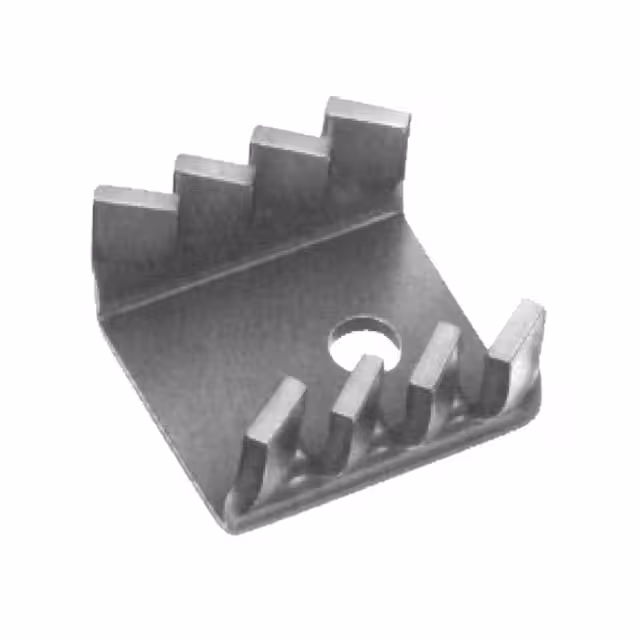

ATS-PCB1022HEATSINK TO-220 BLACK |
2,322 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Angled Fins | 0.748" (19.00mm) | 0.787" (20.00mm) | - | 0.433" (11.00mm) | - | 20.00°C/W @ 200 LFM | 30.00°C/W | Aluminum | Black Anodized |
|

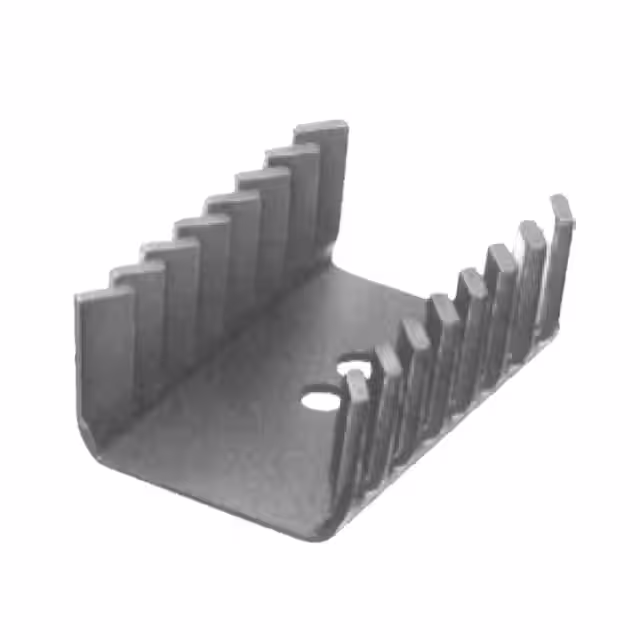

ATS-PCB1023HEATSINK TO-220 DUAL BLACK |
3,410 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Angled Fins | 1.496" (38.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 4.80°C/W @ 200 LFM | 7.20°C/W | Aluminum | Black Anodized |
|
ATS-PCB1026HEATSINK TO-220 DUAL |
1,083 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.181" (30.00mm) | 1.106" (28.10mm) | - | 0.905" (23.00mm) | - | 7.10°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
