Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

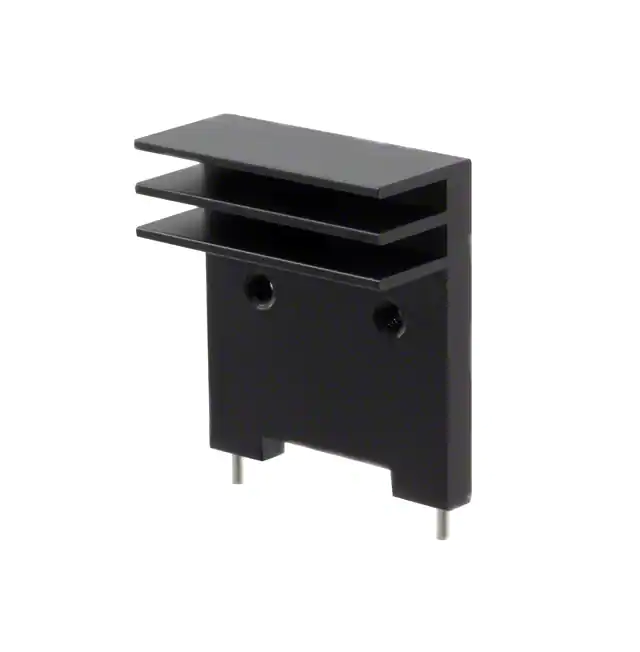

CSM221-28AEHEATSINK BLACK ANODIZED |
4,023 | 1.24 |
|
Datasheet |
CSM | Box | Obsolete | Board Level, Vertical | TO-220 | Solderable Feet | Rectangular, Fins | 1.102" (28.00mm) | 0.492" (12.50mm) | - | 1.228" (31.20mm) | 5.0W @ 60°C | - | 12.80°C/W | Aluminum | Black Anodized |
|
CSM221-40AEHEATSINK BLACK ANODIZED |
1,677 | 1.34 |
|
Datasheet |
CSM | Box | Obsolete | Board Level, Vertical | TO-220 | Solderable Feet | Rectangular, Fins | 1.575" (40.00mm) | 0.492" (12.50mm) | - | 1.228" (31.20mm) | 6.0W @ 65°C | - | 12.10°C/W | Aluminum | Black Anodized |
|
CSM222-30AEHEATSINK BLACK ANODIZED |
3,318 | 1.02 |
|
Datasheet |
CSM | Box | Obsolete | Board Level, Vertical | TO-220 | Solderable Feet | Rectangular, Fins | 1.173" (29.80mm) | 0.562" (14.27mm) | - | 1.228" (31.20mm) | 5.0W @ 60°C | - | 11.30°C/W | Aluminum | Black Anodized |
|

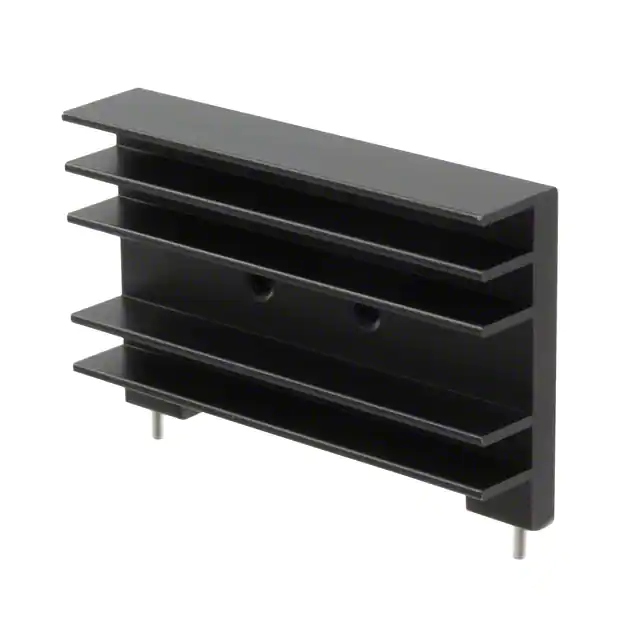

CSM223-50AEHEATSINK BLACK ANODIZED |
2,558 | 1.23 |
|
Datasheet |
CSM | Box | Obsolete | Board Level, Vertical | TO-220 | Solderable Feet | Rectangular, Fins | 1.969" (50.00mm) | 0.411" (10.45mm) | - | 1.228" (31.20mm) | 3.0W @ 30°C | - | 9.80°C/W | Aluminum | Black Anodized |
|
26922HEATSINK FOR TE0720 SPRINGLOADED |
1,837 | 24.00 |
|
- |
TE0720 | Bulk | Discontinued at Digi-Key | Top Mount | TE0720 | Push Pin | Rectangular, Fins | - | - | - | - | - | - | - | - | - |
|

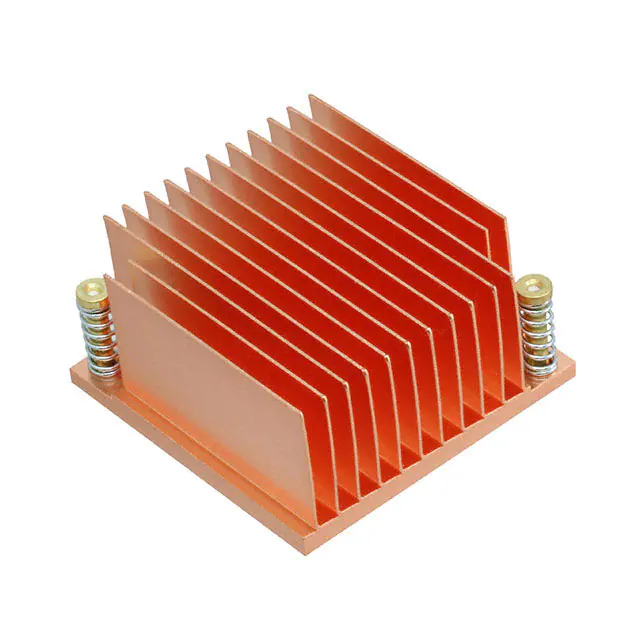

342942COPPER HEATSINK 45X44X22.5MM |
4,512 | 0.00 |
|
Datasheet |
- | Tray | Active | Top Mount, Skived | BGA | Push Pin | Square, Fins | 1.732" (44.00mm) | 1.772" (45.00mm) | - | 0.886" (22.50mm) | - | 1.65°C/W @ 200 LFM | 8.00°C/W | Copper | AavSHIELD 3C |
|
109X6512A2016P3, 800MHZ, FC-PGA |
4,051 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III (Thin) | Clip | Rectangular | 2.520" (64.00mm) | 2.000" (50.80mm) | - | 1.220" (31.00mm) | - | 1.15°C/W | - | Aluminum, Plastic | - |
|
|
109X9112PT0H016P4,775-LAND LGA |
1,717 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Round | - | - | - | 2.465" (62.60mm) | - | 0.27°C/W | - | Aluminum, Plastic | - |
|
|
109X9212PT0H016P4,775-LAND LGA |
3,434 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Round | - | - | - | 2.465" (62.60mm) | - | 0.28°C/W | - | Aluminum, Plastic | - |
|
|
109X9812H0016P4,CELERON,1.7-2.8GHZ,FC-PGA2 |
3,017 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Rectangular | 3.740" (95.00mm) | 3.606" (91.60mm) | - | 2.460" (62.50mm) | - | 0.42°C/W | - | Aluminum, Plastic | - |
|
|
109X9812T0H016P4,CELERON,1.7-2.8GHZ,FC-PGA2 |
3,787 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Rectangular | 3.740" (95.00mm) | 3.606" (91.60mm) | - | 2.460" (62.50mm) | - | 0.42°C/W | - | Aluminum, Plastic | - |
|
|
109X9912S0016P4,CELERON,1.7-3.2GHZ,FC-PGA2 |
4,883 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Rectangular | 3.740" (95.00mm) | 3.543" (90.00mm) | - | 2.441" (62.00mm) | - | 0.30°C/W | - | Aluminum, Plastic | - |
|
|
109X9912T0S016P4,CELERON,1.7-3.4GHZ,FC-PGA2 |
4,053 | 0.00 |
|
Datasheet |
San Ace MC | Box | Obsolete | Board Level | Pentium® III & Pentium® 4 | Clip | Rectangular | 3.740" (95.00mm) | 3.543" (90.00mm) | - | 2.441" (62.00mm) | - | 0.30°C/W | - | Aluminum, Plastic | - |
|
|
XL25B-10-10-3XL25 CERAMIC W/BUMPS 10X10X2MM |
4,616 | 0.00 |
|
Datasheet |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.118" (3.00mm) | - | - | - | Ceramic | - |
|
26921HEATSINK FOR TE0741 SPRINGLOADED |
1,922 | 24.00 |
|
- |
TE0741 | Bulk | Obsolete | Top Mount | - | Push Pin | Rectangular, Fins | 1.339" (34.00mm) | 1.732" (44.00mm) | - | - | - | - | - | - | - |
|
|
PICOHEATSINKKITPICO HEATSINK + THERMAL PAD + SC |
2,761 | 7.98 |
|
- |
- | Bulk | Active | Top Mount Kit | PICO System | Bolt On, Thermal Material | Rectangular | - | - | - | - | - | - | - | - | - |
|
|
TX05061BTHERMAL LINK PRESS ON BLK TO-5 |
3,041 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.650" (16.51mm) | - | - | - | Aluminum | Black Cadmium |
|
|
TX05062BTHERMAL LINK PRESS ON BLK TO-5 |
1,920 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.650" (16.51mm) | - | - | - | Aluminum | Black Cadmium |
|
|
TX05072BTHERMAL LINK PRESS ON BLK TO-5 |
3,481 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.590" (15.00mm) | - | - | - | Aluminum | Black Cadmium |
|
|
TX0522BTHERMAL LINK PRESS ON BLK TO-5 |
2,642 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.470" (11.94mm) | - | - | - | Aluminum | Black Cadmium |
