TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDJ43ATVS DIODE 43VWM 69.4VC DO214AB |
14,132 | 1.07 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 43.23A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD1E01B04DPLTTVS DIODE 3.6VWM 15VC 2X2SON |
12,664 | 0.99 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.4V (Typ) | 15V (Typ) | 2.5A (8/20µs) | 27W | No | HDMI | 0.18pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X2SON (0.6x0.3) |
|
TPD4E1B06DCKRTVS DIODE 5.5VWM 14.5VC SC70-6 |
6,583 | 0.64 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5.5V (Max) | 7V | 14.5V (Typ) | 3A (8/20µs) | 45W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
SMCJ45CA-13-FTVS DIODE 45VWM 72.7VC SMC |
18,282 | 0.84 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
CDSOD323-T15CTVS DIODE 15VWM 31.8VC SOD323 |
13,117 | 0.68 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 31.8V (Typ) | 10A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
CDSOD323-T05CTVS DIODE 5VWM 18.3VC SOD323 |
9,718 | 0.68 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6V | 18.3V (Typ) | 17A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
1.5KE400CATVS D5.4X7.5 342V 1500W BIDIR |
5,224 | 1.51 |
|
- |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 342V | 380V | 548V | 2.8A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|

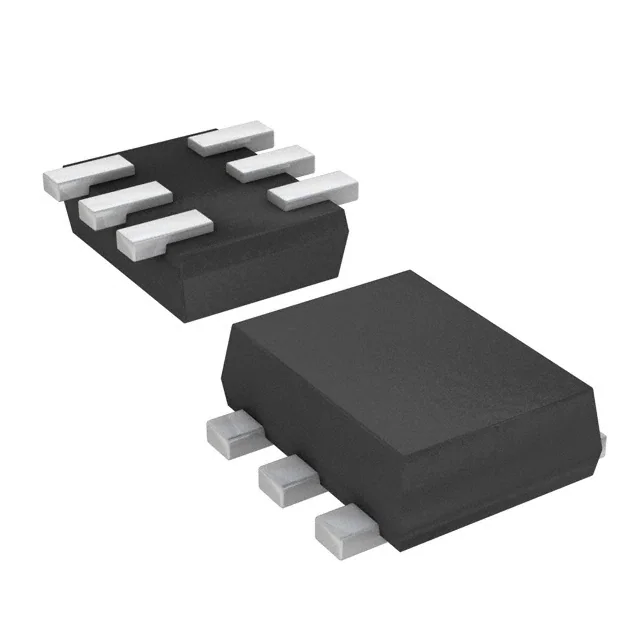

82400152TVS DIODE 5VWM 7.7VC SOT563 |
38,149 | 0.86 |
|
Datasheet |
SOT-563, SOT-666 | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 7.7V (Typ) | 6A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
CDSOD323-T15SCTVS DIODE 15VWM 33VC SOD323 |
19,928 | 0.74 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 33V (Typ) | 12A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMLVT3V3TVS DIODE 3.3VWM 10.3VC SMB |
18,892 | 0.82 |
|
Datasheet |
DO-214AA, SMB | SMLV, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 4.1V | 10.3V | 200A (8/20µs) | 600W | No | General Purpose | 5200pF @ 1MHz | -25°C ~ 175°C (TJ) | - | - | Surface Mount | SMB |
|
82400102TVS DIODE 5VWM 7.7VC SOT23-6L |
17,119 | 0.86 |
|
Datasheet |
SOT-23-6 | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 7.7V (Typ) | 6A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
CDSOD323-T08SCTVS DIODE 8VWM 18.5VC SOD323 |
15,126 | 0.74 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.5V | 18.5V (Typ) | 17A (8/20µs) | 400W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
USB6B1RLTVS DIODE 5.25VWM 8-SO |
10,628 | 1.79 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | USB | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | - | - | 500W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
CDSOD323-T12SCTVS DIODE 12VWM 29.5VC SOD323 |
8,543 | 0.74 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 29.5V (Typ) | 14A (8/20µs) | 400W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
82402305TVS DIODE 5VWM 6.8VC SOT23-6L |
6,467 | 0.86 |
|
Datasheet |
SOT-23-6 | WE-TVS | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6V | 6.8V (Typ) | 6A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -55°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-6L |
.jpg)
|
1KSMB24CATVS DIODE 20.5VWM 33.2VC DO214AA |
25,337 | 0.69 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 30.1A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

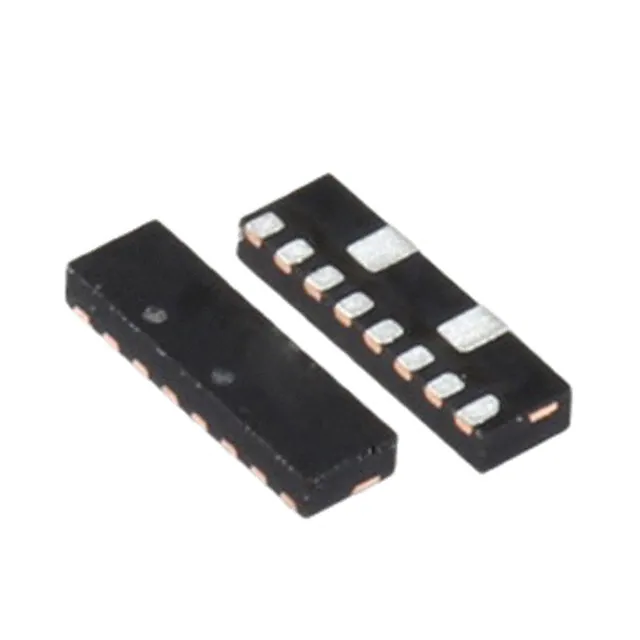

ESD8006MUTAGTVS DIODE 3.3VWM 8.4VC 8-UDFN |
5,330 | 0.96 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 6 | - | 3.3V (Max) | 5.5V | 8.4V (Typ) | 16A | - | No | USB | 0.32pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-UDFN (3.3x1.0) |
|
SESD0402Q2UG-0020-090TVS DIODE 7VWM 9.2VC 0402/3DFN |
122,895 | 0.83 |
|
Datasheet |
3-XFDFN | SESD, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402/3DFN (0.6x1) |
|
|
CDSOD323-T05LCTVS DIODE 5VWM 18.3VC SOD323 |
79,805 | 0.76 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6V | 18.3V (Typ) | 15A (8/20µs) | 250W | No | HDMI, USB OTG | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
CDSOD323-T12C-DSLTVS DIODE 12VWM 28.3VC SOD323 |
28,530 | 0.76 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 28.3V (Typ) | 11A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
