TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM05.TCTTVS DIODE 5VWM 9.8VC SOT23-3 |
99,688 | 0.56 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 9.8V | 17A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
SM24.TCTTVS DIODE 24VWM 43VC SOT23-3 |
76,757 | 0.56 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
UCLAMP0501H.TCTTVS DIODE 5VWM 12.5VC SOD523 |
68,438 | 0.56 |
|
Datasheet |
SC-79, SOD-523 | µClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 16A (8/20µs) | 240W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
SM36.TCTTVS DIODE 36VWM 60VC SOT23-3 |
40,092 | 0.56 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 60V | 4A (8/20µs) | 300W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NUP4202W1T2GTVS DIODE 5VWM 14.5V SC88/SC70-6 |
26,755 | 0.92 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 14.5V (Typ) | 28A (8/20µs) | 500W | No | General Purpose | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
PGB2010402KRHFTVS DIODE 12VWM 40VC 0402 |
8,846 | 0.94 |
|
Datasheet |
0402 (1005 Metric) | PulseGuard® PGB2 | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | - | 40V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|

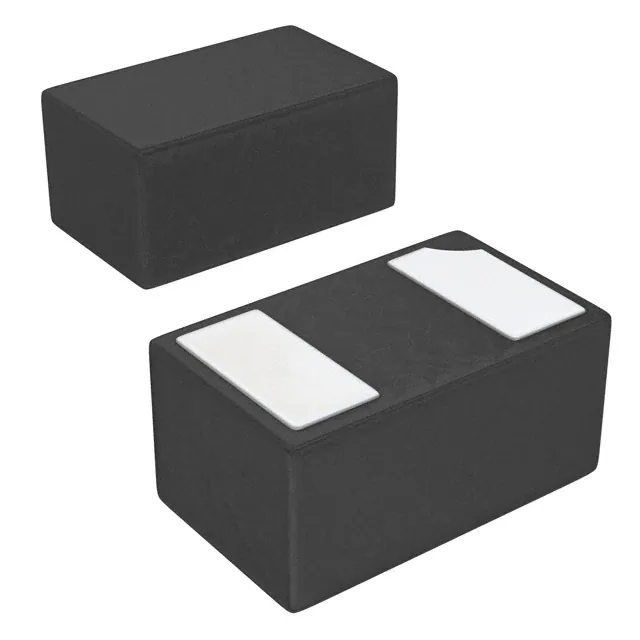

UCLAMP2801T.TCTTVS DIODE 28VWM 60VC SLP1006P2T |
8,484 | 0.56 |
|
Datasheet |
0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V (Max) | 32V | 60V | 4A (8/20µs) | 240W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
TPD1E0B04DPYTTVS DIODE 3.6VWM 19VC 2X1SON |
7,792 | 0.95 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.7V (Typ) | 19V (Typ) | 1.7A (8/20µs) | 15W | No | General Purpose | 0.13pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|
PGB102ST23WRTVS DIODE 24VWM 150VC SOT23-3 |
38,881 | 0.97 |
|
Datasheet |
3-SMD, SOT-23-3 Variant | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SMDJ5.0CATVS DIODE 5VWM 9.2VC DO214AB |
12,380 | 0.99 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6.4V | 9.2V | 326.09A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC550CATVS SMC 495V 1500W BIDIR |
52,822 | 0.95 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 495V | 522.5V | 760V | 2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP0504BAJTGTVS DIODE 5.5VWM 8.5VC SC70-5 |
17,321 | 1.00 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
TPD1E1B04DPYTTVS DIODE 3.6VWM 8.5VC 2X1SON |
7,838 | 0.92 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.4V (Typ) | 8.5V (Typ) | 6.3A (8/20µs) | 50W | No | General Purpose | 1pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|

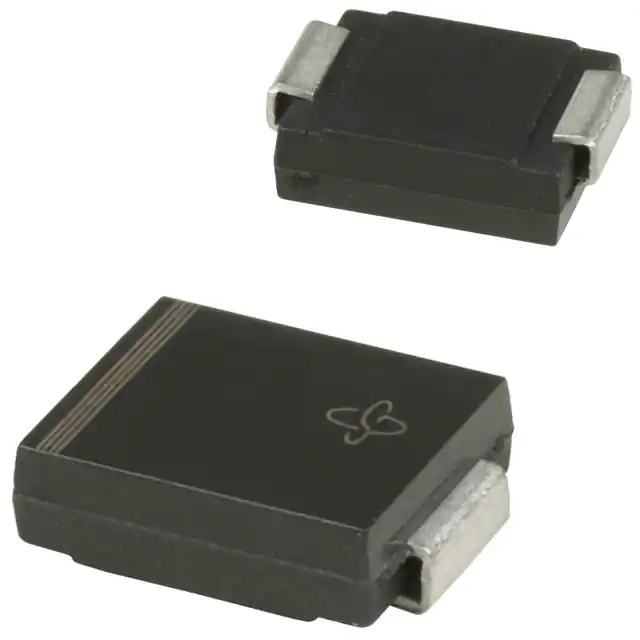

SMC5K30A-M3/ITVS DIODE 30VWM 48.4VC DO214AB |
7,000 | 0.91 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SESD1004Q4UG-0020-090TVS DIODE 7VWM 9.2VC 1004/10DFN |
5,608 | 1.02 |
|
Datasheet |
10-XFDFN | SESD, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 1004/10DFN (2.5x1.0) |
|
TPSMD36ATVS DIODE 36VWM 58.1VC DO214AB |
2,723 | 1.02 |
|
Datasheet |
DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
SP0504BAHTGTVS DIODE 5.5VWM 8.5VC SOT23-5 |
60,018 | 0.91 |
|
Datasheet |
SC-74A, SOT-753 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
RCLAMP0551P.TSTTVS DIODE 5VWM 20VC SLP1006P2 |
29,497 | 0.20 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 3A (8/20µs) | 60W | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|

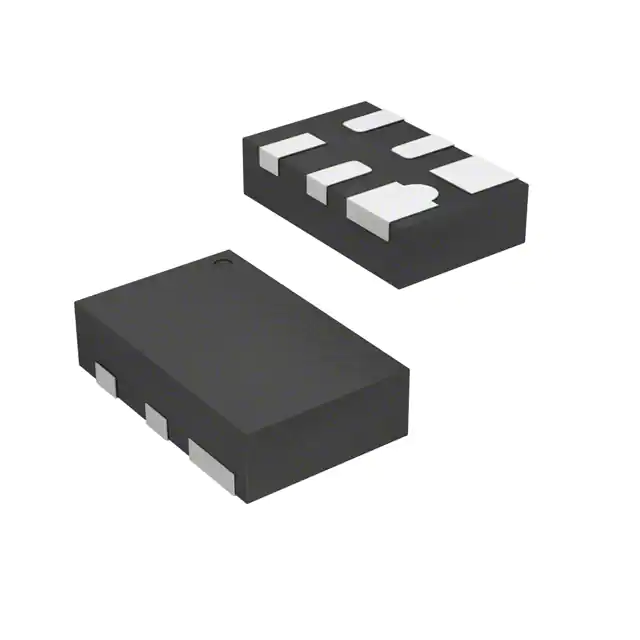

RCLAMP0522P.TCTTVS DIODE 5VWM 15VC SLP1610P4 |
22,838 | 0.60 |
|
Datasheet |
6-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 15V | 5A (8/20µs) | 150W | Yes | HDMI | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1610P4 |
|

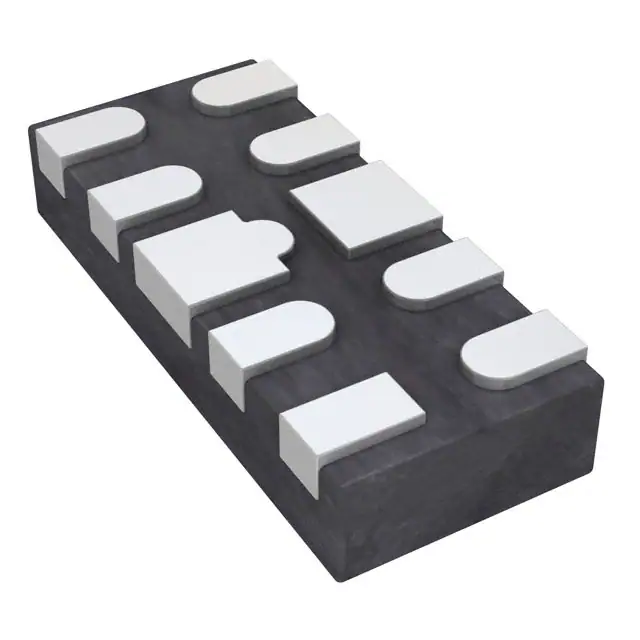

CDDFN10-2574NTVS DIODE 2.5VWM 11VC 10DFN |
15,496 | 1.06 |
|
Datasheet |
10-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 3V | 11V | 45A (8/20µs) | - | No | Ethernet | 1.7pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x2) |
