TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTVS10-380C-THTVS DIODE 380VWM 520VC AXIAL |
4,493 | 121.81 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 380V (Max) | 401V | 520V (Typ) | 10000A (10kA) (8/20µs) | - | No | General Purpose | 1200pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PESD5V0C1BLS-QYLTVS DIODE 5VWM 5.4VC DFN1006BD-2 |
20,000 | 0.08 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 7.5V | 5.4V (Typ) | 6.5A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 1MHz (Max) | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
PESD3V3S1BLYLTVS DIODE 3.3VWM 6.5VC DFN1006-2 |
1,089 | 1.00 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 6.5V (Typ) | 15A (8/20µs) | - | No | - | 35pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
DF2S6.8FS,L3MTVS DIODE 5VWM 9VC SOD923 |
487,248 | 0.18 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9V (Typ) | - | - | No | General Purpose | 25pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|
|
DF2S5.6FS,L3MTVS DIODE 3.5VWM SOD923 |
153,543 | 0.18 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.5V (Max) | 5.3V | - | - | - | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|

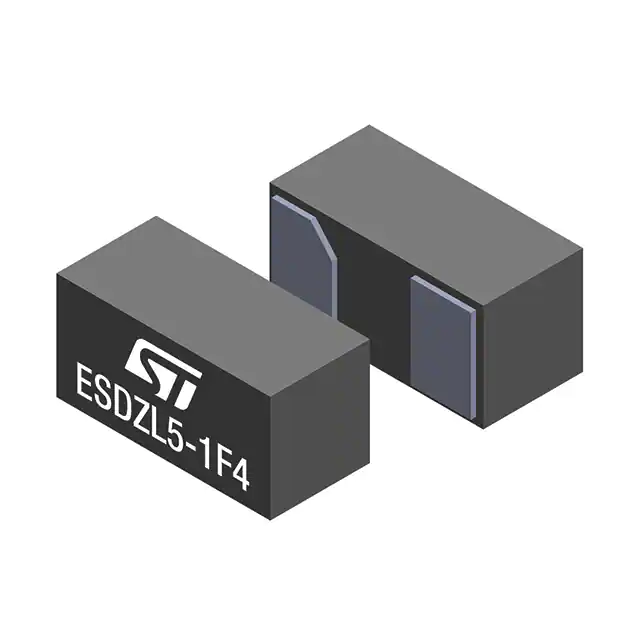

ESDZL5-1F4TVS DIODE 5.5VWM 10VC 0201 |
135,483 | 0.23 |
|
Datasheet |
0201 (0603 Metric) | ESDZ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | - | 10V | 7A (8/20µs) | 60W | No | General Purpose | 7.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
ESD200B1CSP0201XTSA1TVS DIODE 5.5VWM 13VC |
76,922 | 0.27 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6V | 13V (Typ) | 16A (8/20µs) | - | No | General Purpose | 6.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | - |
|
ESD246B1W01005E6327XTSA1TVS DIODE 5.5VWM 7.5VC WLL-2-2 |
74,863 | 0.27 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | - | 7.5V | 5.5A (8/20µs) | 44W | No | General Purpose | 5.5pF @ 1GHz | -55°C ~ 125°C | - | - | Surface Mount | SG-WLL-2-2 |
|
ESD5Z3.3T5GTVS DIODE 3.3VWM 14.1VC SOD523 |
63,418 | 0.27 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESD321DYAR0.8-PF 3.3-V 30-KV ESD PROTECTIO |
56,160 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.6V (Max) | 4.5V | 6.3V (Typ) | 6A (8/20µs) | 40W | No | USB | 0.9pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
|
DF2S30FS,L3MTVS DIODE 23VWM SOD923 |
52,300 | 0.18 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 23V (Max) | 28V | - | - | - | No | General Purpose | 7pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|

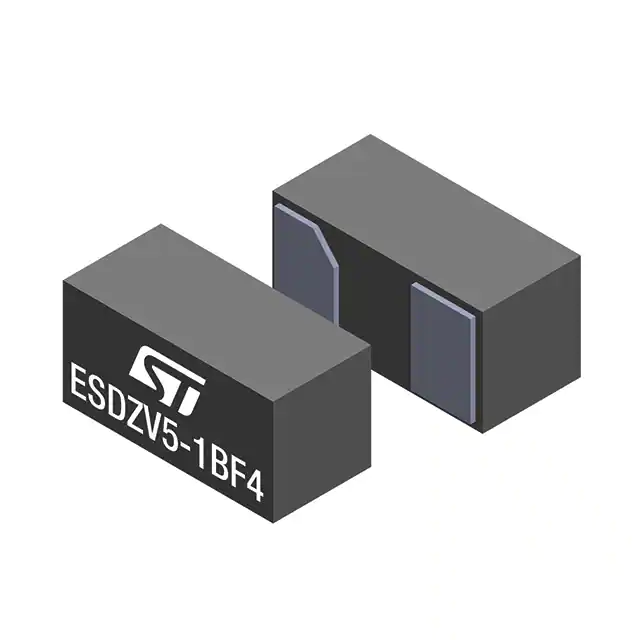

ESDZV5-1BF4TVS DIODE 5.5VWM 10VC 0201 |
50,500 | 0.23 |
|
Datasheet |
0201 (0603 Metric) | ESDZ | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | - | 10V | 7A (8/20µs) | 70W | No | General Purpose | 6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
ESD5Z12T1GTVS DIODE 12VWM 25VC SOD523 |
49,147 | 0.28 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.1V | 25V | 9.6A (8/20µs) | 240W | No | General Purpose | 55pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
DF2S6.2FS,L3MTVS DIODE 5VWM SOD923 |
45,436 | 0.21 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 5.8V | - | - | - | No | General Purpose | 32pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|
|
DF2S24FS,L3MTVS DIODE 19VWM SOD923 |
44,023 | 0.18 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 19V (Max) | 22.8V | - | - | - | No | General Purpose | 8.5pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|
TPD1E10B06DYAR12-PF, 5.5V, 30-KV ESD PROTECTIO |
43,571 | 0.44 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6V | 14V | 6A (8/20µs) | 90W | No | USB | 12pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
|
DF2S8.2FS,L3MTVS DIODE 6.5VWM SOD923 |
31,911 | 0.18 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V (Max) | 7.7V | - | - | - | No | General Purpose | 20pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|
|
ESD5Z2.5T5GTVS DIODE 2.5VWM 10.9VC SOD523 |
31,315 | 0.19 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 10.9V | 11A (8/20µs) | 120W | No | General Purpose | 145pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD5Z2.5T1GTVS DIODE 2.5VWM 10.9VC SOD523 |
23,410 | 0.20 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 10.9V | 11A (8/20µs) | 120W | No | General Purpose | 145pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD5Z7.0T1GTVS DIODE 7VWM 22.7VC SOD523 |
21,247 | 0.19 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 22.7V | 8.8A (8/20µs) | 200W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
