TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMAJ12ATVS SMA 12V 400W UNIDIR |
6,233 | 0.08 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4SMAJ5.0ATVS DIODE 5VWM 9.2VC SMA/DO214AC |
2,154 | 0.08 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD108B1CSP0201XTSA1TVS DIODE 5.5VWM 41VC WLL-2-1 |
782,942 | 0.23 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 9.5V (Typ) | 41V | 3A (8/20µs) | 27.5W | No | HDMI | 0.28pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | WLL-2-1 |
|
D5V0M1U2S9-7TVS DIODE 5.5VWM 12VC SOD923 |
688,647 | 0.27 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 12V | 9A (8/20µs) | 108W | No | General Purpose | 54pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
DESD5V0U1BL-7BTVS DIODE 5VWM 7.2VC DFN1006-2 |
180,458 | 0.27 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 7.2V (Typ) | 3A (8/20µs) | - | No | General Purpose | 2.9pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
SD24C-7TVS DIODE 24VWM 45VC SOD323 |
124,869 | 0.49 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 45V | 8A (8/20µs) | 350W | No | General Purpose | 40pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

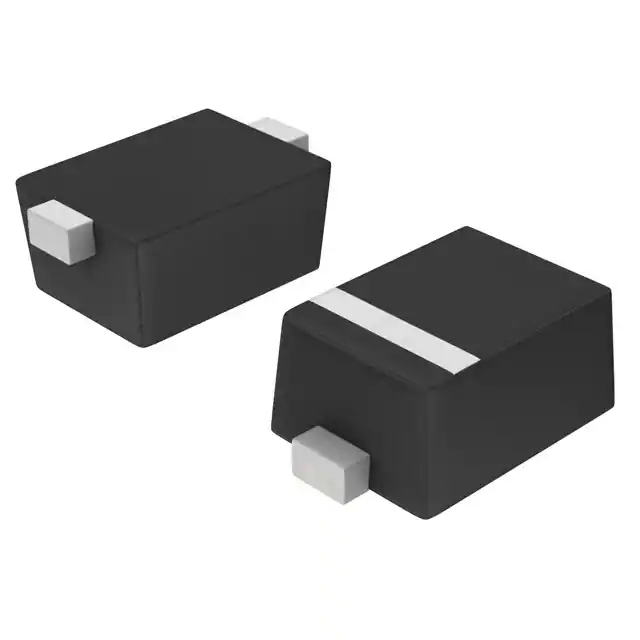

ESD9X12ST5GTVS DIODE 12VWM 23.7VC SOD923 |
114,091 | 0.30 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.5V | 23.7V | 5.9A (8/20µs) | 140W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
.jpg)
|

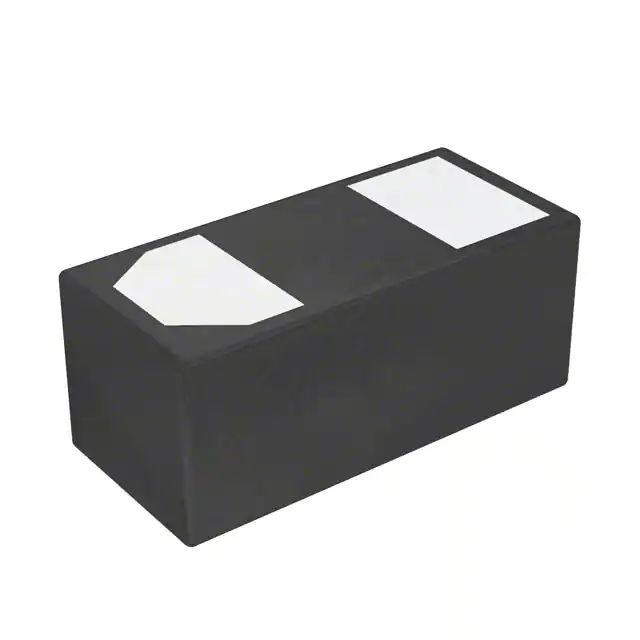

ESDAXLC6-1BU2TVS DIODE 3VWM 17VC ST0201 |
55,829 | 0.39 |
|
Datasheet |
0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 3V | 6V | 17V | 1A (8/20µs) | 40W | No | General Purpose | 0.4pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
DF3A6.8LFV,L3FTVS DIODE 5VWM VESM |
54,763 | 0.25 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | 6.5V | - | - | - | No | General Purpose | 6pF @ 1MHz | - | - | - | Surface Mount | VESM |
|
MMBZ15VDLT1GTVS DIODE 12.8VWM 21.2VC SOT23-3 |
47,192 | 0.24 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12.8V | 14.3V | 21.2V | 1.9A | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
SD12-7TVS DIODE 12VWM 25VC SOD323 |
45,986 | 0.41 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 25V | 15A (8/20µs) | 350W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
PESD27VV1BAXTVS DIODE 27VWM 45VC SOD323 |
42,858 | 0.42 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Telecom | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
SD12C-7TVS DIODE 12VWM 24VC SOD323 |
38,136 | 0.35 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 24V | 15A (8/20µs) | 360W | No | General Purpose | 52.6pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ESD5Z5.0T5GTVS DIODE 5VWM 18.6VC SOD523 |
31,435 | 0.26 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18.6V | 9.4A (8/20µs) | 174W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
GG040207100N2PDIODE 7VDC, 0402, 10PF |
30,760 | 0.24 |
|
Datasheet |
0402 (1005 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 9V | 13V | 6A | 72W | No | Ethernet, HDMI, USB | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 0402 |
|
MMBZ6V2AL,215TVS DIODE 3VWM 8.7VC TO236AB |
22,666 | 0.38 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3V (Max) | 5.89V | 8.7V | 2.76A | 24W | No | - | 175pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
ESD128B1W0201E6327XTSA1TVS DIODE 13VWM 18.5VC WLL-2-1 |
21,506 | 0.29 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 13V (Max) | 20V | 18.5V | 2A (8/20µs) | 53W | No | RF Antenna | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | WLL-2-1 |
|
PESD24VS1UL,315TVS DIODE 24VWM 70VC DFN1006-2 |
19,777 | 0.45 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 150W | No | - | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
SD24-7TVS DIODE 24VWM 44VC SOD323 |
16,087 | 0.49 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 80pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SD03C-7TVS DIODE 3VWM 11VC SOD323 |
13,697 | 0.35 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3V (Max) | 4V | 11V | 55A (8/20µs) | 600W | No | General Purpose | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
