TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS150M-D62_R1_00501LOW CAPACITANCE ESD PROTECTION |
9,850 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PESD5V0U1BLD,315TVS DIODE 5VWM DFN1006D-2 |
9,225 | 1.00 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | - | 2.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
P6SMAJ33ADF-13TVS DIODE 33VWM 53.3VC D-FLAT |
7,275 | 0.14 |
|
Datasheet |
2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|

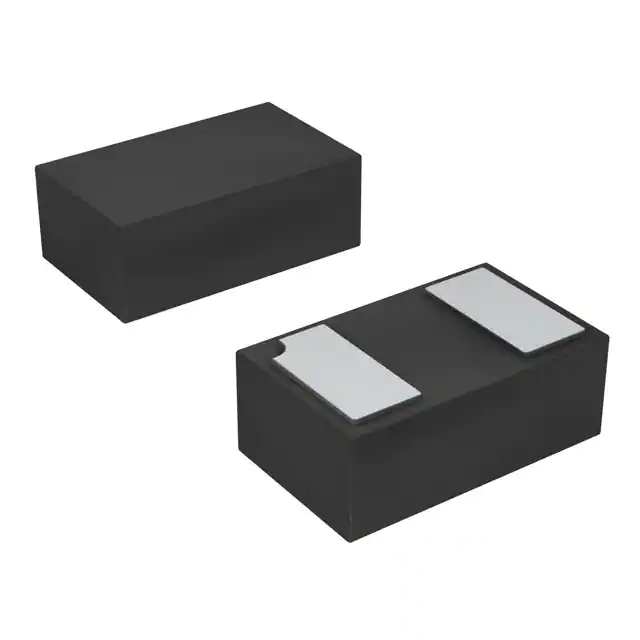

PJE24VM5FN2_R1_00001ESD PROTECTION |
7,236 | 0.35 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 25V | 40V | 1A (8/20µs) | 100W | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
SMA6J24A-QTVS DIODE |
6,320 | 0.45 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
ESD36VT2B-TPTVS DIODE 36VWM 90VC SOT-23 |
6,000 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 38V | 90V | 5A (8/20µs) | 250W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
UDD32C24L01TVS DIODE 24VWM 56VC SOD323 |
4,955 | 0.48 |
|
Datasheet |
SC-76, SOD-323 | UAD8C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 56V | 3A (8/20µs) | 200W | No | General Purpose | 0.8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ43CA-TPTVS DIODE 43VWM 69.4VC DO214AC |
4,946 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 5.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ18CAE3/TR13TVS DIODE 18VWM 29.2VC SMBJ |
3,000 | 0.30 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6SMBJ60CATVS DIODE 60VWM 96.8VC DO-214AA |
3,000 | 0.09 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
, SC-88A, SOT-353.jpg)
|
DF5A5.6CFUTE85LFTVS DIODE 3.5VWM USV |
2,940 | 0.09 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.5V | 5.3V | - | - | - | No | General Purpose | 29pF @ 1MHz | - | - | - | Surface Mount | USV |
|
|
DT1240A-04LP20-7TVS DIODE 3.3VWM 8.5VC DFN2010-8 |
2,800 | 0.09 |
|
Datasheet |
8-XFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 5V | 8.5V | 5.5A | 38W | Yes | DVI, HDMI, VGA, USB | 0.55pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN2010-8 Type B |
|
D7V0S1U2WS-7TVS DIODE 7VWM 15.5VC SOD323 |
2,790 | 0.09 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 15.5V | 90A (8/20µs) | 1400W (1.4kW) | No | General Purpose | 750pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMBJ130ATVS DIODE 130VWM 209VC DO214AA |
2,595 | 0.27 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
NUP1301QAZTVS DIODE 80VWM 20VC TO236AB |
2,525 | 0.08 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | - | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
PE1605M2Q_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
2,237 | 0.35 |
|
Datasheet |
3-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-DFN (1x0.6) |
|
S23CC1212V TVS,PACKAGE SOT-23, TVS ARRA |
54,473 | 0.10 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.8V | 37V | 5A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
.jpg)
|
ESDAULC6-1U2TVS DIODE 3VWM 13VC ST0201 |
30,000 | 0.13 |
|
Datasheet |
0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 3V | 6V | 13V | 1.4A (8/20µs) | 18W | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
ESDSB15VLB-TPTVS DIODE 15VWM 26VC 2-DFN1006 |
20,000 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16V | 26V | 22A (8/20µs) | 570W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESD36VLHE3-TPTVS DIODE 36VWM 80VC DFN1006-2L |
19,900 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 38V | 80V | 2.5A (8/20µs) | 200W | No | General Purpose | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
