TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDULC3V3D5B-TPESD,3.3V,SOD-523 |
15,585 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
VCAN26A2-03SHE3A08ESD PROTECTION DIODE SOT23 |
14,960 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 26.5V (Max) | 28V | 50V | 3A (8/20µs) | 150W | No | CAN | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
VCAN33A2-03SHE3A08ESD PROTECTION DIODE SOT23 |
14,890 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 33V (Max) | 36V | 56V | 2.7A (8/20µs) | 150W | No | CAN | 8.7pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
VLIN1616-02GHE3-08TVS DIODE 16VWM 33VC SOD323 |
11,446 | 0.08 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16V (Max) | 17.1V | 33V | 6A (8/20µs) | 200W | No | - | 18pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PS160M-D32_R1_00301LOW CAPACITANCE ESD PROTECTION |
10,000 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VETH100A1DD1HG3-08BIDIRECTIONAL SINGLE LINE ESD PR |
9,988 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | - | 34V (Typ) | - | - | No | Ethernet | 1.7pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2B |
|
|
ESDU1052FCT5GHIGH PERFORMANCE 5.5 V MID CAP U |
9,795 | 0.04 |
|
Datasheet |
01005 (0402 Metric) | - | Tray | Active | Zener | 1 | - | 5.5V (Max) | 5.9V | 10V | 11A (8/20µs) | - | No | General Purpose | 2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DSN (0.44x0.23) |
|
|
VLIN1616-02GHE3-18TVS DIODE 16VWM 33VC SOD323 |
8,755 | 0.08 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16V (Max) | 17.1V | 33V | 6A (8/20µs) | 200W | No | - | 18pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|

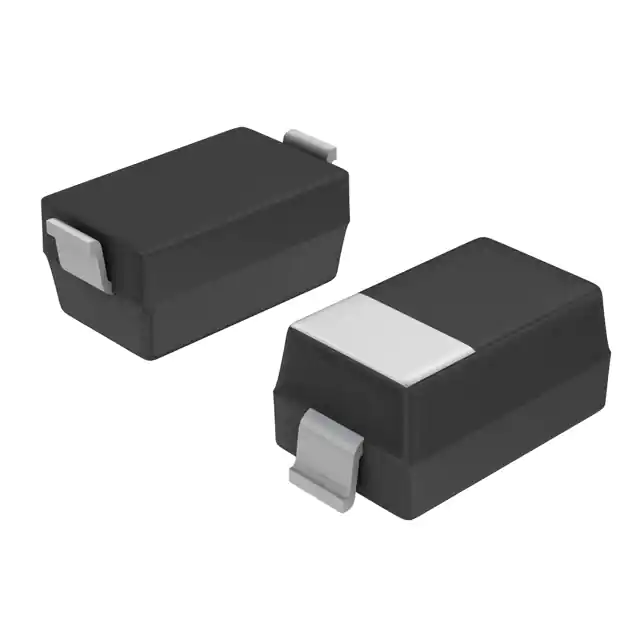

PJSD15_R1_00001400W LOW CLAMPING VOLTAGE SINGLE |
7,180 | 0.50 |
|
Datasheet |
SOD-123 | PJSD05 | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 28V | 14A (8/20µs) | 400W | No | General Purpose | 165pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-123 |
|
SMAJ26AHTVS DIODE 26VWM 42.1VC DO214AC |
6,989 | 0.11 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 9.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMAJ20ATVS DIODE 20VWM 32.4VC DO214AC |
6,480 | 0.13 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4SMA400CATVS SMA 342V 400W BI |
6,090 | 0.62 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMMBZ33VALT1GTVS DIODES 26VWM 46VC SOT23 |
6,000 | 0.08 |
|
- |
TO-236-3, SC-59, SOT-23-3 | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
ESD12VT2B-TPTVS DIODE 12VWM 30VC SOT-23 |
6,000 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13V | 30V | 10A (8/20µs) | 250W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
ESD27VT2B-TPTVS DIODE 27VWM 70VC SOT-23 |
6,000 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 27V (Max) | 31V | 70V | 6A (8/20µs) | 250W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
ESD7V0T2B-TPTVS DIODE 7VWM 15VC SOT-23 |
5,990 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 7V (Max) | 7V | 15V | 17A (8/20µs) | 250W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
ESD24VT2B-TPTVS DIODE 24VWM 44VC SOT-23 |
5,990 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26V | 44V | 7A (8/20µs) | 250W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
ESD3V3T2B-TPTVS DIODE 3.3VWM 16VC SOT-23 |
5,939 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.3V (Max) | 5V | 16V | 25A (8/20µs) | 250W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
ESD307U102NE6327XTSA1TVS DIODE 10VWM 29VC TSNP-2-2 |
5,165 | 0.11 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V (Max) | 11.1V | 29V | 34A (8/20µs) | 800W | No | General Purpose | 270pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSNP-2-2 |
|
PJSD15TS-AU_R1_000A1SINGLE LINE TVS DIODE FOR ESD PR |
4,639 | 0.50 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.6V | 22V | 5A (8/20µs) | 120W | No | - | 50pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
