TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PESD12VS1UB,115TVS DIODE 12VWM 35VC SOD523 |
15,732 | 0.47 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | 180W | No | General Purpose | 38pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
STS321033B401TVS DIODE 3.3VWM 15VC SOD323 |
14,713 | 0.45 |
|
Datasheet |
SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 15V | 30A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

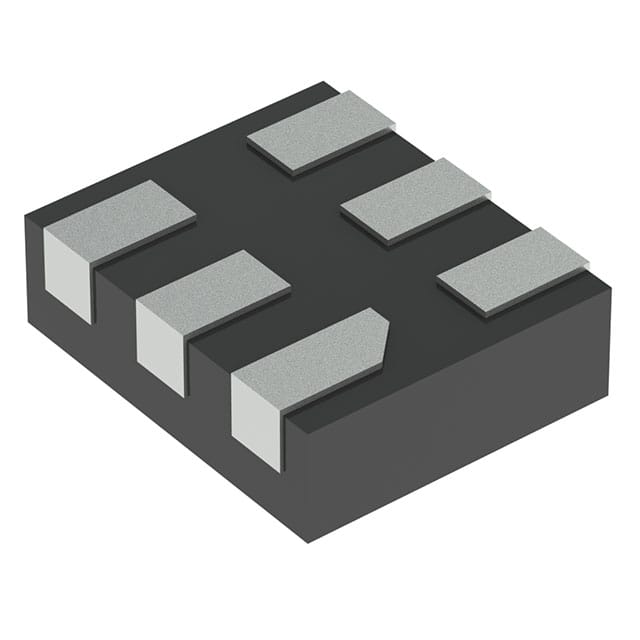

ESDR0502NMUTBGTVS DIODE 5.5VWM 6UDFN |
13,663 | 0.48 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
, SC-88A, SOT-353.jpg)
|

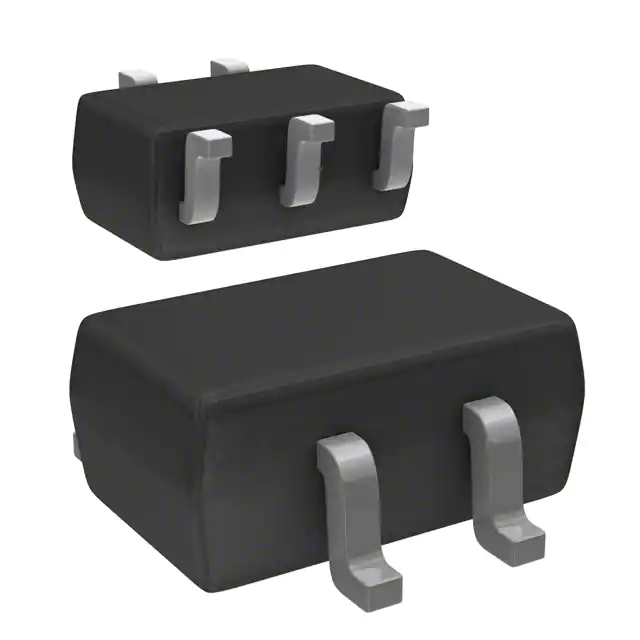

DF5A5.6LFU(TE85L,FTVS DIODE 3.5VWM USV |
12,104 | 0.50 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.5V | 5.3V | - | - | - | No | General Purpose | 8pF @ 1MHz | - | - | - | Surface Mount | USV |
|
STS521050B331TVS DIODE 5VWM 18VC SOD523 |
11,849 | 0.44 |
|
Datasheet |
SC-79, SOD-523 | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 18V | 20A (8/20µs) | 350W | No | General Purpose | 33pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
PESD5V0X1BT,215TVS DIODE 5VWM TO236AB |
10,326 | 0.50 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.8V | - | - | - | No | - | 0.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
-Type-C;-;-2.jpg)
|
D24V0L1B2LPSQ-7BTVS DIODE 24VWM 46VC DFN1006-2 |
9,277 | 0.50 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26V | 46V | 2A (8/20µs) | 90W | No | - | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
DF2B18FU,H3XHFAUTO AEC-Q BIDIRECTIONAL ESD PRO |
8,863 | 0.40 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | USC |
|
SZNUP1301ML3T1GTVS DIODE SOT23-3 |
7,934 | 0.46 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | - | 70V | - | - | - | No | - | 0.9pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
PESD5V0L2UM,315TVS DIODE 5VWM 15VC SOT883 |
5,423 | 0.48 |
|
Datasheet |
SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.46V | 15V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | - | Automotive | AEC-Q100 | Surface Mount | SOT-883 |
|
PESD5V0L5UY,115TVS DIODE 5VWM 12VC 6TSSOP |
3,038 | 0.43 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
VS4V5BU1QST18RTVS DIODE 4.5VWM 12VC SMD1006 |
2,754 | 0.44 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V (Max) | 5.3V | 12V | 50A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD1006 |
|
PESD2IVN27-UXTVS DIODE 27VWM 45VC SOT323 |
1,552 | 0.45 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMAJ30A-13-FTVS DIODE 30VWM 48.4VC SMA |
544,079 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ6.0A-13-FTVS DIODE 6VWM 10.3VC SMA |
278,342 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMBJ40A-13-FTVS DIODE 40VWM 64.5VC SMB |
183,566 | 0.46 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
D12V0H1U2LP1610-7TVS DIODE 12VWM 20VC U-DFN1610-2 |
179,215 | 0.40 |
|
Datasheet |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13V | 20V | 50A (8/20µs) | 1000W (1kW) | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
DT6250-06MR-13TVS DIODE 5VWM 10VC 8-MSOP |
164,582 | 0.42 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5V (Max) | 6V | 10V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
SMAJ13A-13-FTVS DIODE 13VWM 21.5VC SMA |
150,843 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMBJ16A-13-FTVS DIODE 16VWM 26VC SMB |
144,561 | 0.46 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
