TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ100A-13-FTVS DIODE 100VWM 162VC SMA |
25,667 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ7.0ATVS DIODE 7VWM 12VC DO214AC |
21,979 | 0.21 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NUP5120X6T1GTVS DIODE 5VWM SOT563 |
20,364 | 0.49 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.2V | - | - | 90W | No | General Purpose | 54pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
.jpg)
|
PESD3V3U1UB,115TVS DIODE 3.3VWM SOD523 |
19,461 | 0.50 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | - | 2.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
STS321033U202TVS DIODE 3.3VWM 15VC SOD323 |
19,342 | 0.45 |
|
Datasheet |
SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4V | 15V | 25A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ70ATVS DIODE 70VWM 113VC DO214AC |
18,334 | 0.45 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESDR0502NMUTAGTVS DIODE 5.5VWM 6UDFN |
18,098 | 0.43 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
|
SMAJ48A-QTVS DIODE 48VWM 77.4VC SMA |
16,955 | 0.42 |
|
Datasheet |
DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
D5V0S1U2WS-7TVS DIODE 5.5VWM 16VC SOD323 |
12,587 | 0.39 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 16V | 70A (8/20µs) | 1000W (1kW) | No | - | 950pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|

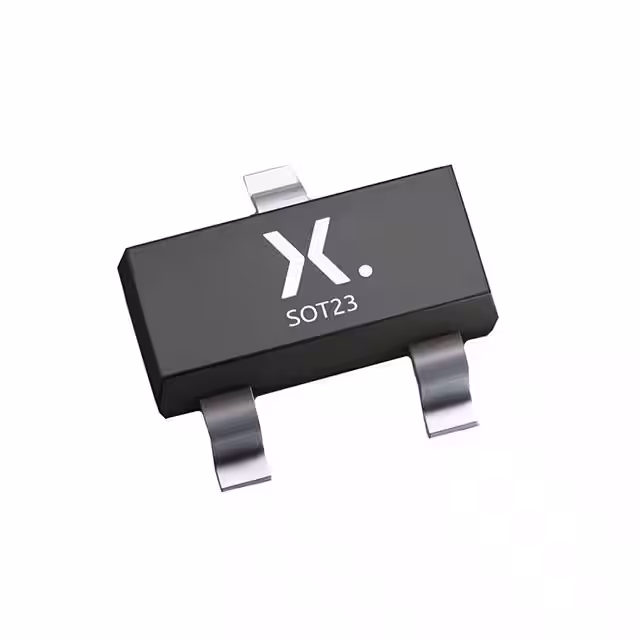

PESD2USB3UX-TRTVS DIODE 3.3VWM TO236AB |
12,270 | 0.50 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V | - | - | 4A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SP36-01WTG-C-HVTVS DIODE 36VWM 48VC 2FLIPCHIP |
12,045 | 0.34 |
|
Datasheet |
2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | 40V | 48V | 1.5A (8/20µs) | 100W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
DF2S6P2FU,H3FTVS DIODE 5.5VWM 23.7VC USC |
10,569 | 0.51 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.6V | 23.7V | 80A (8/20µs) | 1900W (1.9kW) | No | General Purpose | 600pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | USC |
|
DT2636-04S-7TVS DIODE 5.5VWM 9VC SOT363 |
10,477 | 0.44 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 9V (Typ) | 5A (8/20µs) | 60W | No | HDMI | 0.75pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363 |
|
PESD12VS2UT,215TVS DIODE 12VWM 35VC TO236AB |
9,455 | 0.41 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | 180W | No | General Purpose | 38pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
P6KE68CATVS DIODE 58.1VWM 92VC DO204AC |
8,833 | 0.39 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PESD3V3L1BAFTVS DIODE 3.3VWM 26VC SOD323 |
8,529 | 0.08 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | General Purpose | 101pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P6SMB27CATVS DIODE 23.1VWM 37.5VC DO214AA |
8,186 | 0.37 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ85ATVS DIODE 85VWM 137VC DO214AC |
7,631 | 0.45 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ5.0CA-TPTVS DIODE 5VWM 9.2VC DO214AA |
7,468 | 0.43 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
VCAN16A2-03G-E3-08TVS DIODE 16VWM 28VC SOT323 |
7,271 | 0.49 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 140W | No | CAN | 15.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
