Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1751MTools/Equipment/Hardware |
4,307 | 0.00 |
|
Datasheet |
1750 | Bulk | Active | 4:1 | 8k | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|

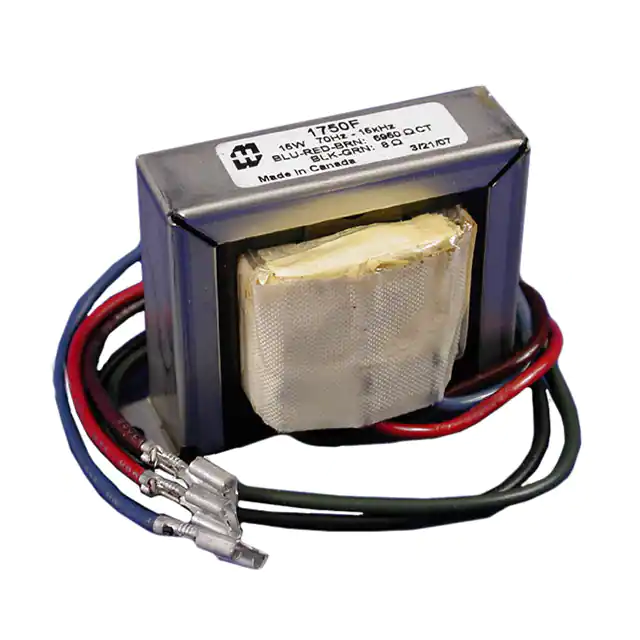

1750FAUDIO XFMR 6.95KCT / 8 CHAS MNT |
1,387 | 47.33 |
|
Datasheet |
1750 | Box | Active | 29.19:1 | 6.95kCT | 8 | 97.36Ohm, 194.7Ohm | 409mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.250" L x 1.687" W (82.55mm x 42.85mm) | 2.058" (52.27mm) | Wire Leads |
|
|
H302414AUDIO XFMR |
1,013 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1140-MS-AAUDIO XFMR 150 / 150 CHAS MNT |
3,903 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:1 | 150 | 150 | 44Ohm | 44Ohm | Impedance Matching | 20Hz ~ 20kHz | - | 500Vrms | - | - | - | - | - | Chassis Mount | 1.250" Dia (31.75mm) | - | Wire Leads |
|
560JXFM 600 150/150 / 4.8K 1.2K/1.2K |
3,476 | 66.21 |
|
Datasheet |
560 | Bulk | Active | - | 600, 150/150 | 4.8k, 1.2k/1.2k | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
|
1750ZAUDIO XFMR 10K / 8 CHAS MNT |
4,671 | 0.00 |
|
Datasheet |
175 | Bulk | Active | - | 10k | 8 | 608.7Ohm, 651.5Ohm | 706mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | -1dB | 2000V | - | - | 20W | -40°C ~ 105°C | - | Chassis Mount | 3.125" L x 2.400" W (79.38mm x 60.96mm) | 2.308" (58.62mm) | Wire Leads |
|
140MEXAUDIO XFMR 100K / 1.5K CHAS MNT |
3,929 | 71.60 |
|
Datasheet |
140EX | Bulk | Active | 8.13:1 | 100k | 1.5k | 5.43kOhm | 159Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 1.2dB Typ | 30dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
|
140NEXAUDIO XFMR 50 / 1.5K CHAS MNT |
4,630 | 71.60 |
|
Datasheet |
140EX | Bulk | Active | 1:5.47 | 50 | 1.5k | 5.3Ohm | 116.5Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 0.9dB Typ | 28dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
|
1140-LU-CAUDIO XFMR 600 / 600 CHAS MNT |
2,367 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 200V | - | - | - | - | - | Chassis Mount | 1.700" L x 1.190" W (43.18mm x 30.23mm) | 1.380" (35.05mm) | Wire Leads |
|
|
H302258AUDIO TRANSFORMER, STUDIO GRADE |
4,944 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1140-MN-AAUDIO XFMR 150OHM / 15K CHAS MNT |
4,621 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:10 | 150Ohm | 15k | - | - | Impedance Matching | 20Hz ~ 20kHz | ±0.35dB | - | - | - | - | - | - | Chassis Mount | - | - | Screw Terminal |
|
|
PWDM13226XFRMR VIKING II MOD 795VCT 500VA |
3,274 | 83.85 |
|
- |
* | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1140-LU-EAUDIO XFMR 600 / 600 CHAS MNT |
1,507 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 250V | - | - | - | - | - | Chassis Mount | 1.950" L x 1.300" W (49.53mm x 33.02mm) | 1.625" (41.28mm) | Wire Leads |
|
|
1750YAAUDIO XFMR CHAS MNT |
4,714 | 0.00 |
|
Datasheet |
175 | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 65Hz ~ 12kHz | ±1dB | 2000V | - | - | 50W | - | - | Chassis Mount | - | 3.046" (77.37mm) | Wire Leads |
|
1750MXFMR 4.2KCT / 2, 4, 8 CHAS MNT |
2,367 | 96.34 |
|
Datasheet |
1750 | Box | Active | 22.93:1 | 4.2kCT | 2, 4, 8 | 68Ohm | 160mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 60W | - | - | Chassis Mount | 4.050" L x 3.050" W (102.87mm x 77.47mm) | 3.563" (90.50mm) | Wire Leads |
|
|
1140-MS-BAUDIO XFMR 150 CHAS MNT |
2,047 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:1 | 150 | - | 48Ohm | - | Impedance Matching | 20Hz ~ 20kHz | - | 500Vrms | - | - | - | - | - | Chassis Mount | 1.250" Dia (31.75mm) | - | Wire Leads |
|
|
1615XFMR 5KCT / 4, 8, 16 CHAS MNT |
2,702 | 0.00 |
|
- |
1600 | Bulk | Active | - | 5kCT | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | ±1dB | - | 15W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|
|
1140-LU-GAUDIO XFMR 600 / 600 CHAS MNT |
3,096 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 1:1 | 600 | 600 | 40Ohm | 40Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 250V | - | - | - | - | - | Chassis Mount | - | 1.950" (49.53mm) | Wire Leads |
|
|
1140-LU-FXFMR 600 150/150 / 600 150/150 |
4,337 | 0.00 |
|
Datasheet |
1140 | Bulk | Active | 2:1 | 600, 150/150 | 600, 150/150 | 30Ohm | 30Ohm | Line (Audio Power Distribution) | 20Hz ~ 20kHz | - | 250V | - | - | - | - | - | Chassis Mount | - | 1.950" (49.53mm) | Wire Leads |
|
|
A-52JXFMR 500 125/125 / 2K 500/500 |
3,400 | 0.00 |
|
Datasheet |
J | Bulk | Active | 1:2 | 500, 125/125 | 2k, 500/500 | 50Ohm | 200Ohm | Impedance Matching | 30Hz ~ 15kHz | ±3dB | - | - | - | 100mW | - | - | Chassis Mount | - | - | Wire Leads |
