Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1650LAAUDIO XFMR CHAS MNT |
4,308 | 0.00 |
|
Datasheet |
1650A | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|
|
1750WAAUDIO XFMR 2K CHAS MNT |
4,091 | 0.00 |
|
Datasheet |
1750 | Bulk | Active | - | 2k | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | -1dB | 2000V | - | - | 100W | -40°C ~ 105°C | - | Chassis Mount | - | 3.500" (88.90mm) | Wire Leads |
|
|
1750TCAUDIO XFMR CHAS MNT |
2,531 | 0.00 |
|
Datasheet |
175 | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | 120W | - | - | Chassis Mount | - | - | Wire Leads |
|
|
PWDM13041AUDIO XFMR |
3,380 | 203.94 |
|
Datasheet |
* | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1650MAUDIO XFMR CHAS MNT |
4,309 | 0.00 |
|
Datasheet |
1650P | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|
|
1760CGPWAUDIO XFMR CHAS MNT |
2,406 | 0.00 |
|
Datasheet |
1750 | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | 100W | - | - | Chassis Mount | - | - | Wire Leads |
|
|
HS-27AUDIO XFMR 60K OHM SEC |
2,102 | 0.00 |
|
- |
HS | Box | Active | 1:1.72 | 5k, 20k | 60k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
HS-25AUDIO XFMR 111K OHM SEC |
2,292 | 0.00 |
|
- |
HS | Box | Active | 1:2.72 | 15k | 111k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
HS-23AUDIO XFMR 110K OHM SEC |
4,156 | 0.00 |
|
- |
HS | Box | Active | 1:2.7 | 15k | 110k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
1650KAPAUDIO XFMR CHAS MNT |
4,905 | 0.00 |
|
Datasheet |
1650P | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|
|
1650PAPAUDIO XFMR CHAS MNT |
3,058 | 0.00 |
|
Datasheet |
1650P | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|
|
HS-472PWR XFMR 115/115 |
3,573 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1650RAPAUDIO XFMR CHAS MNT |
3,695 | 0.00 |
|
Datasheet |
1650P | Bulk | Active | - | - | - | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | - | - | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads |
|
|
HS-5AUDIO XFMR 130K OHM SEC |
2,753 | 0.00 |
|
- |
HS | Box | Active | 1:65.7 | 30, 50 | 130k | - | - | General Purpose | 50Hz ~ 10kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
HS-8AUDIO XFMR 117.6K OHM SEC |
1,683 | 0.00 |
|
- |
HS | Box | Active | 1:14 | 62.5, 150, 250, 600 | 117.6k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
HS-54AUDIO XFMR 62.5/150/250/600 OHM |
3,158 | 0.00 |
|
- |
HS | Box | Active | - | 5k, 20k | 62.5, 150, 250, 600 | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | - | - | - | Chassis Mount | 1.750" L x 1.200" W (44.45mm x 30.48mm) | 2.500" (63.50mm) | Wire Leads |
|
|
HS-71AUDIO XFMR 10KOHM/600/150OHM SEC |
1,739 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

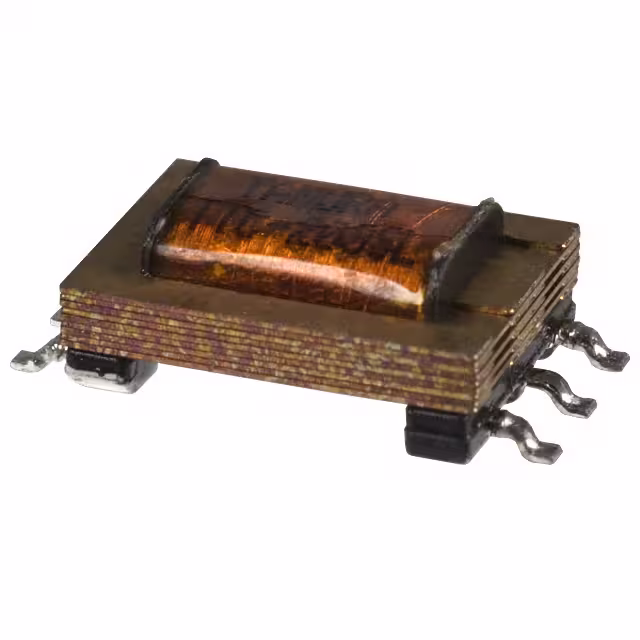

TTC-203SLAUDIO XFMR 600 / 346 SMD |
2,222 | 0.00 |
|
Datasheet |
TTC | - | Obsolete | 1:1 | 600 | 346 | 127Ohm | 150Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | -0.35dB ~ 0.15dB | 1000VRMS @ 1 Minute | 2.7dB @ 1kHz | 25dB Min @ 300Hz ~ 3.5kHz | 10mW | - | CSA-C22.2 No. 950-M89, UL1459, UL1950 | Surface Mount | 0.330" L x 0.402" W (8.38mm x 10.20mm) | 0.164" (4.16mm) | Gull Wing |
|

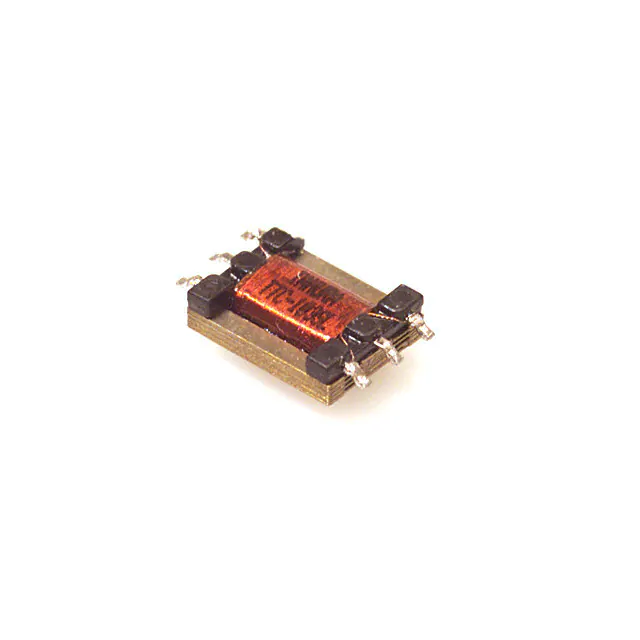

TTC-103SLAUDIO XFMR 600 / 346 SMD |
4,895 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 346 | 127Ohm | 150Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | -0.35dB ~ 0.15dB | 1000VRMS @ 1 Minute | 2.7dB @ 1kHz | 25dB Min @ 300Hz ~ 3.5kHz | 10mW | - | CSA-C22.2 No. 950-M89, UL1459, UL1950 | Surface Mount | 0.330" L x 0.402" W (8.38mm x 10.20mm) | 0.164" (4.16mm) | Gull Wing |
|

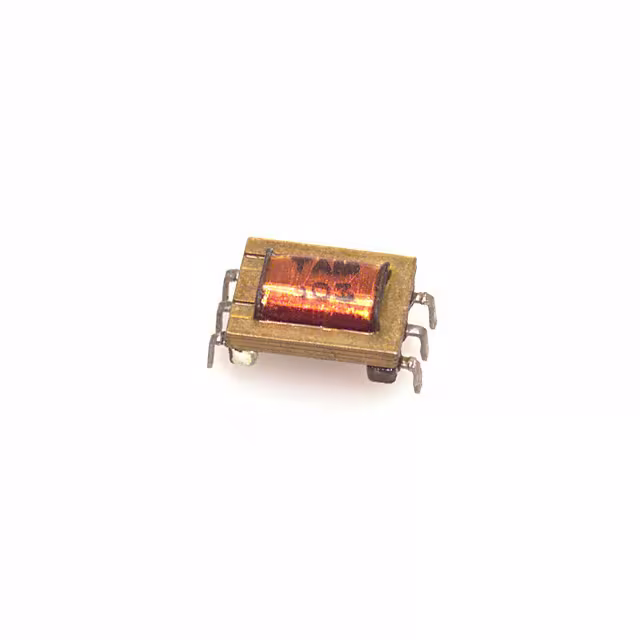

TTC-303SLAUDIO XFMR TH |
4,809 | 0.00 |
|
- |
TTC | Bulk | Obsolete | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | - | - | PC Pin |
