Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TTC-5012AUDIO XFMR 600 / 600 TH |
2,056 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | - | 600 | 600 | - | - | - | - | - | - | 1dB Typ | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
|
TTC-5018AUDIO XFMR 600 / 600 TH |
3,571 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 600 | 25Ohm | 21Ohm | - | 200Hz ~ 4kHz | ±0.5dB | 1875VRMS @ 1 Second | 0.75dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5019AUDIO XFMR 600 / 260 TH |
2,689 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 260 | 170Ohm | 170Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±2.5dB | 1875VRMS @ 1 Second | 4dB Max @ 1kHz | 8dB Min @ 200Hz ~ 4kHz | - | - | CSA-C22.2 No. 950-95, UL1950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|

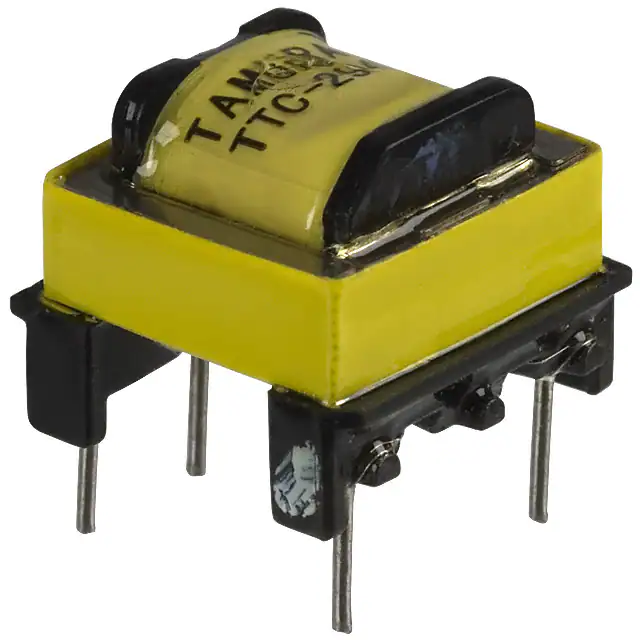

TTC-294AUDIO XFMR 600 / 600CT TH |
1,731 | 2.67 |
|
Datasheet |
TTC | Bulk | Active | 1:1 | 600 | 600CT | 58Ohm | 14Ohm, 62Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.16dB | 1850V @ 1 Second | 1.2dB Max @ 1kHz | - | - | - | UL1950 | Through Hole | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.472" (12.00mm) | PC Pin |
|

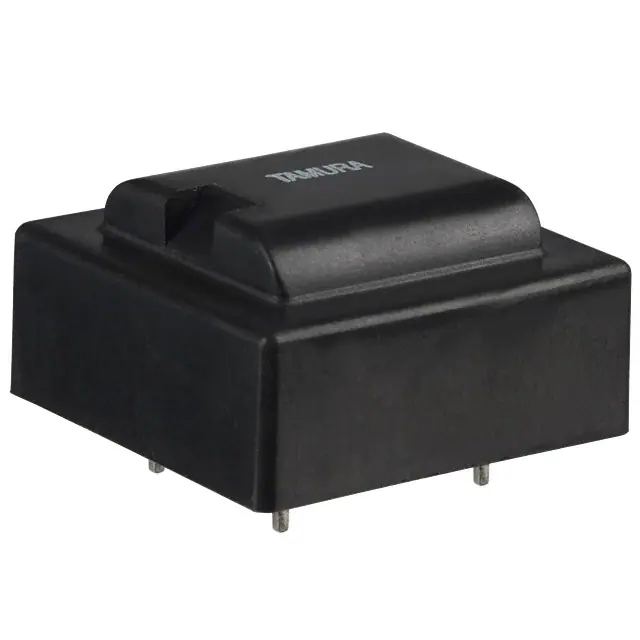

TTC-5010AUDIO XFMR 600 / 301 TH |
3,591 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | - | 600 | 301 | - | - | Data/Voice Coupling | - | - | - | 3.75dB | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5033AUDIO XFMR 10K / 10K SMD |
3,761 | 0.00 |
|
Datasheet |
TTC | Tape & Reel (TR) | Obsolete | 1:1 | 10k | 10k | 485Ohm | 485Ohm | Data/Voice Coupling | - | - | 1875VRMS @ 1 Second | - | - | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
|
TTC-5037AUDIO XFMR 600 / 530 SMD |
3,031 | 0.00 |
|
Datasheet |
TTC | Tape & Reel (TR) | Obsolete | 1:1 | 600 | 530 | 90Ohm | 90Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.4dB | 1875VRMS @ 1 Second | 2dB Max @ 2kHz | 18dB Min @ 200Hz ~ 4kHz | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
|
T6027NLAUDIO XFMR 600 / 2.4K SMD |
2,872 | 0.00 |
|
Datasheet |
- | Tube | Active | 1:2 | 600 | 2.4k | 55Ohm | 390Ohm | Data/Voice Coupling | - | - | 1500Vrms | 1.2dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.7dB @ 100kHz | 18dB @ 200Hz, 18dB @ 1kHz, 18dB @ 10kHz | - | - | - | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | Gull Wing |
|
|
T6027NLTAUDIO XFMR 600 / 2.4K SMD |
4,268 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:2 | 600 | 2.4k | 55Ohm | 390Ohm | Data/Voice Coupling | - | - | 1500Vrms | 1.2dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.7dB @ 100kHz | 18dB @ 200Hz, 18dB @ 1kHz, 18dB @ 10kHz | - | - | - | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | Gull Wing |
|
|
TTC-100AUDIO XFMR |
3,727 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-101AUDIO XFMR 600 TH |
4,828 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 600 | - | 47Ohm | 35Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | - | - | 26dB | -45dB ~ 7dB | - | CSA, UR | Through Hole | - | - | PC Pin |
|
|
TTC-218-2AUDIO XFMR 600 / 600 TH |
3,962 | 0.00 |
|
- |
- | Bulk | Obsolete | 1:1 | 600 | 600 | 49Ohm | 76Ohm | Impedance Matching | 660Hz ~ 3.5kHz | -1.8dB ~ 0.5dB | - | - | - | -45dB ~ 7dB | - | CSA, UR | Through Hole | - | 0.350" (8.89mm) | PC Pin |
|
|
T6003AUDIO XFMR |
4,326 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T6003TAUDIO XFMR |
4,743 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T6042AUDIO XFMR |
1,738 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T6071AUDIO XFMR |
1,464 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESMIT-190NPAUDIO XFMR SMD |
1,105 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESMIT-100NPAUDIO XFMR SMD |
4,131 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AEI14-4440AUDIO XFMR 10K / 10K TH |
4,344 | 6.75 |
|
Datasheet |
- | Tray | Active | 1:1 | 10k | 10k | 330Ohm | 420Ohm | Impedance Matching | - | - | 1000V | - | - | - | -40°C ~ 85°C | - | Through Hole | 0.689" L x 0.610" W (17.50mm x 15.50mm) | 0.551" (14.00mm) | PC Pin |
|
AEE19-3460AUDIO XFMR 10K / 10K TH |
4,326 | 10.50 |
|
Datasheet |
- | Tray | Active | 1:1 | 10k | 10k | 820Ohm | 1.08kOhm | Impedance Matching | - | - | 1000V | - | - | - | -20°C ~ 85°C | - | Through Hole | 0.827" L x 0.787" W (21.00mm x 20.00mm) | 0.748" (19.00mm) | PC Pin |
