Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TV105AUDIO XFMR |
4,358 | 0.00 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TV106AUDIO XFMR |
2,367 | 0.00 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

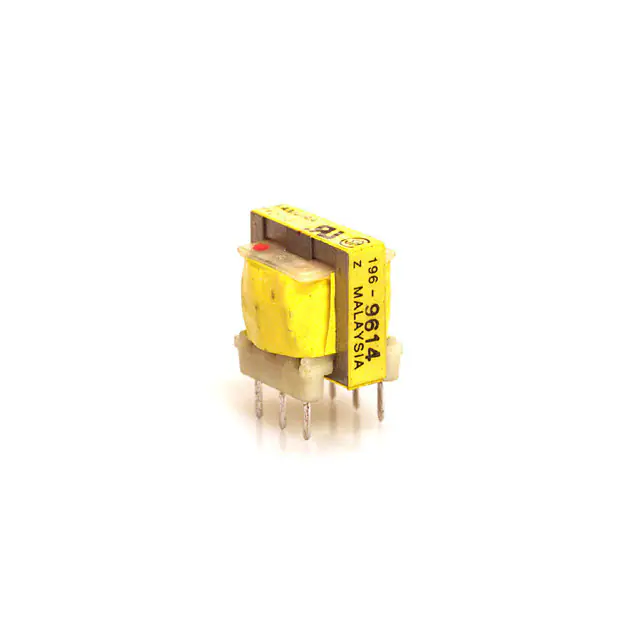

TTC-10AUDIO XFMR 600 / 600/600 TH |
1,761 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:0.736 | 600 | 600/600 | 57Ohm | 42Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | - | 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799" L x 0.689" W (20.30mm x 17.50mm) | 0.752" (19.10mm) | PC Pin |
|
TTC-109NAUDIO XFMR 600 / 600 TH |
4,702 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 600 | 71Ohm | 117Ohm | Data/Voice Coupling | 660Hz ~ 3.5kHz | -1dB ~ 0.7dB | 1500VRMS @ 1 Minute | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz | - | -45dB ~ 10dB | - | CSA-C22.2 No. 66-M1988, UL1862 | Through Hole | 0.823" L x 0.752" W (20.90mm x 19.10mm) | 0.630" (16.00mm) | PC Pin |
|

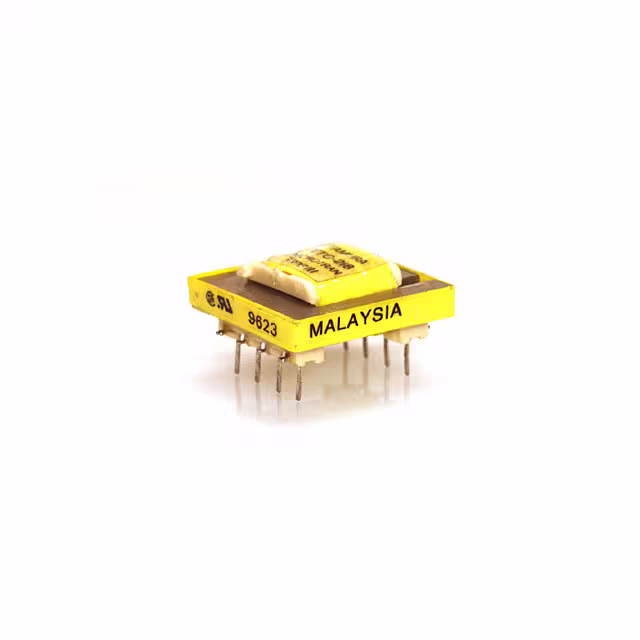

TTC-218AUDIO XFMR 600 / 600 TH |
1,229 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 600 | 49Ohm | 76Ohm | Data/Voice Coupling | 660Hz ~ 3.5kHz | -1.8dB ~ 0.5dB | 1500VRMS @ 1 Minute | 1.8dB Max @ 2kHz | - | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1863 | Through Hole | 0.839" L x 0.760" W (21.30mm x 19.30mm) | 0.346" (8.80mm) | PC Pin |
|
|
TTC-125AUDIO XFMR 600 / 600 TH |
3,041 | 0.00 |
|
Datasheet |
TTC | Bulk | Obsolete | 1:1 | 600 | 600 | 95Ohm | 180Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 2.2dB Max @ 1kHz | 14dB Typ | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 1.272" L x 1.299" W (32.30mm x 33.00mm) | 0.626" (15.90mm) | PC Pin |
|
TS1104AUDIO XFMR 600 / 600 SMD |
2,516 | 4.40 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:1.06 | 600 | 600 | 46Ohm | 63Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.5dB Max @ 1kHz | 26dB Min @ 1kHz | -45dB ~ 7dB | - | CSA-C22.2 No. 950-M89, UL1459, UL1950 | Surface Mount | 0.791" L x 0.689" W (20.09mm x 17.50mm) | 0.500" (12.70mm) | Gull Wing |
|
|
TTC-129AUDIO XFMR 600 / 600/600 TH |
2,460 | 8.90 |
|
Datasheet |
TTC | Bulk | Active | 1:1.416 | 600 | 600/600 | 100Ohm | 190Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.5dB Max @ 1kHz | - | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1863 | Through Hole | 1.272" L x 1.299" W (32.30mm x 33.00mm) | 0.626" (15.90mm) | PC Pin |
|

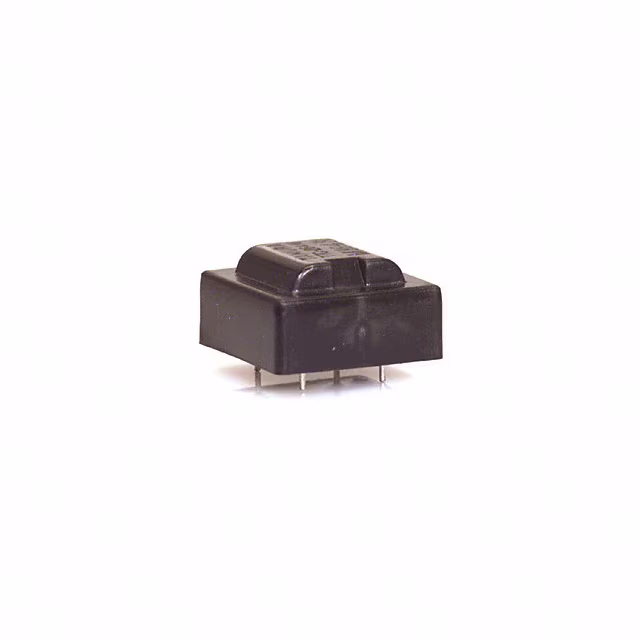

TTC-264MAUDIO XFMR 600 / 470 TH |
3,751 | 0.00 |
|
- |
TTC | Bulk | Obsolete | - | 600 | 470 | - | - | Data/Voice Coupling | - | - | - | 2.5dB Typ | - | - | - | - | Through Hole | - | - | - |
|
|
1628SEAUDIO XFMR 5K / 4, 8, 16 CHAS MT |
2,376 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 5k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | - | ±1dB | - | 25W | - | - | Chassis Mount | 5.000" L x 3.750" W (127.00mm x 95.25mm) | 4.560" (115.82mm) | Wire Leads |
|
1650PPAUDIO XFMR 6.6KCT / 4, 8, 16 TH |
3,625 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 6.6kCT | 4, 8, 16 | 66.8Ohm, 160.5Ohm | 230mOhm, 370mOhm | Push-Pull Potted, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | ±1dB | - | 60W | - | - | Through Hole | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) | - |
|
|
1640SEXFMR 11.25K / 4, 8, 16 CHAS MNT |
2,001 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 11.25k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | - | ±1dB | - | 25W | - | - | Chassis Mount | 5.000" L x 3.750" W (127.00mm x 95.20mm) | 4.560" (115.82mm) | Wire Leads |
|
1629SEXFMR 6.5K / 4, 8, 16 CHAS MNT |
2,130 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 6.5k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | - | ±1dB | - | 25W | - | - | Chassis Mount | 5.000" L x 3.750" W (127.00mm x 95.20mm) | 4.560" (115.82mm) | Wire Leads |
|
|
1627SEXFMR 25K / 4, 8, 16 CHAS MNT |
3,647 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 25k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | - | ±1dB | - | 25W | - | - | Chassis Mount | 5.000" L x 3.750" W (127.00mm x 95.20mm) | 4.560" (115.82mm) | Wire Leads |
|
|
1650RPAUDIO XFMR 5K / 4, 8, 16 TH |
2,845 | 0.00 |
|
Datasheet |
1600 | Bulk | Obsolete | - | 5k | 4, 8, 16 | 44Ohm, 98.5Ohm | 210mOhm, 344mOhm | Push-Pull Potted, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 100W | - | - | Through Hole | 5.000" L x 4.250" W (127.00mm x 107.95mm) | 4.500" (114.30mm) | - |
|
|
150J032AUDIO XFMR 600 / 600CT TH |
2,286 | 0.00 |
|
Datasheet |
150 | Bulk | Active | - | 600 | 600CT | 67Ohm | 90Ohm | Voice | 300Hz ~ 3.4kHz | 0.5dB | - | 1.5dB | 26dB | - | - | - | Through Hole | 1.650" L x 1.340" W (41.91mm x 34.04mm) | 0.650" (16.51mm) | PC Pin |
|
|
150J011AUDIO XFMR 600 / 600 TH |
1,893 | 0.00 |
|
Datasheet |
150 | Bulk | Obsolete | - | 600 | 600 | 34Ohm | 47Ohm | Voice | 300Hz ~ 3.4kHz | 0.5dB | - | 1.25dB | 24dB | - | - | - | Through Hole | 0.955" L x 0.685" W (24.26mm x 17.40mm) | 0.500" (12.70mm) | PC Pin |
|
|
150J211AUDIO XFMR 600 / 600 TH |
1,610 | 0.00 |
|
Datasheet |
150 | Bulk | Obsolete | - | 600 | 600 | 31Ohm | 39Ohm | Voice | 300Hz ~ 3.4kHz | 0.5dB | - | 0.7dB | 18dB | - | - | - | Through Hole | 0.375" L x 0.310" W (9.53mm x 7.87mm) | 0.400" (10.16mm) | PC Pin |
|
|
150J203AUDIO XFMR 600 / 600 TH |
1,370 | 0.00 |
|
Datasheet |
150 | Bulk | Obsolete | - | 600 | 600 | 74Ohm | 97Ohm | Voice | 300Hz ~ 3.4kHz | 1dB | - | 2dB | 18dB | - | - | - | Through Hole | 1.290" L x 1.400" W (32.77mm x 35.56mm) | 0.500" (12.70mm) | PC Pin |
|
|
151J101AUDIO XFMR TH |
1,023 | 0.00 |
|
Datasheet |
151 | Bulk | Obsolete | - | - | - | - | - | Voice | - | - | - | - | 36dB | - | - | - | Through Hole | 1.730" L x 1.480" W (43.94mm x 37.59mm) | 1.070" (27.18mm) | PC Pin |
