Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF19XV-120-1R2A007JVCMC 600UH 12A 2LN TH AEC-Q200 |
178 | 10.01 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

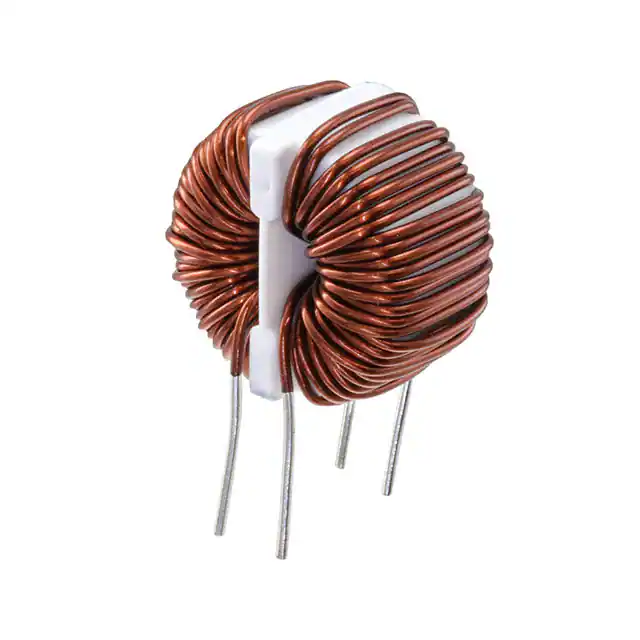

SC-07-650CMC 6.5MH 7A 2LN TH |
148 | 6.99 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 1 kHz | 7A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-50JCMC 5MH 4A 2LN TH |
188 | 6.19 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

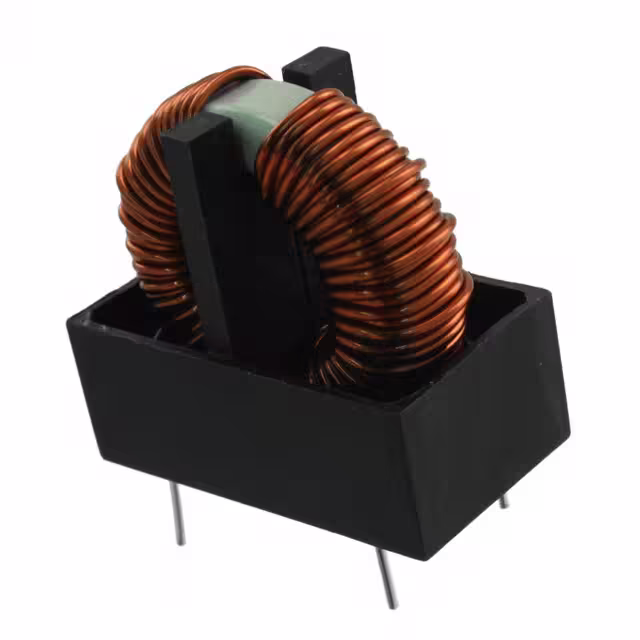

PE-62916NLCMC 4MH 5.2A 2LN TH |
265 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 5.2A | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

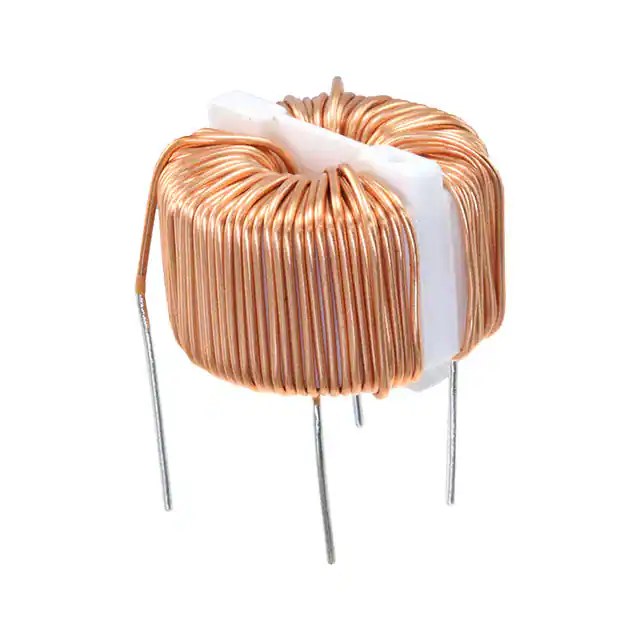

SC-05-803CMC 8MH 4A 2LN TH |
151 | 7.57 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 90mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19-040-0R8A1100JCMC 11MH 4A 2LN TH |
246 | 7.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 50 kHz | 4A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN152-2-02-18MCMC 18MH 2A 2LN TH |
123 | 6.48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 350mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

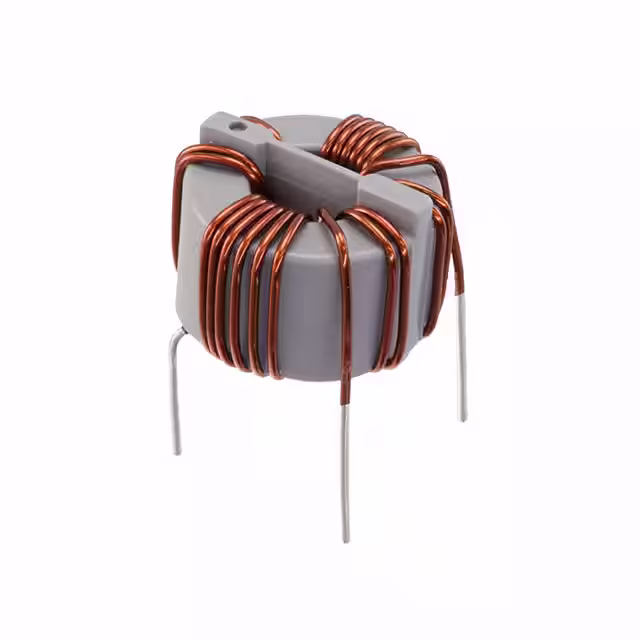

SC-08-D060CMC 60UH 8A 2LN TH |
150 | 7.85 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

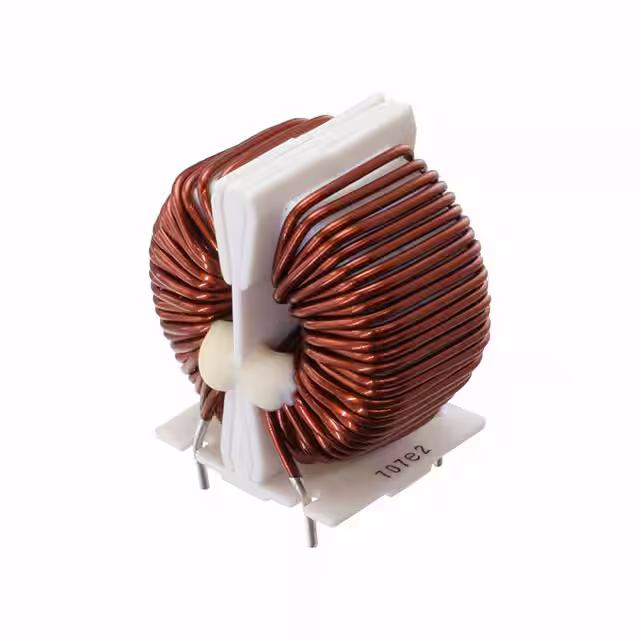

SCR25-070-1R1A070JCMC 7MH 7A 2LN TH |
131 | 7.26 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 34mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

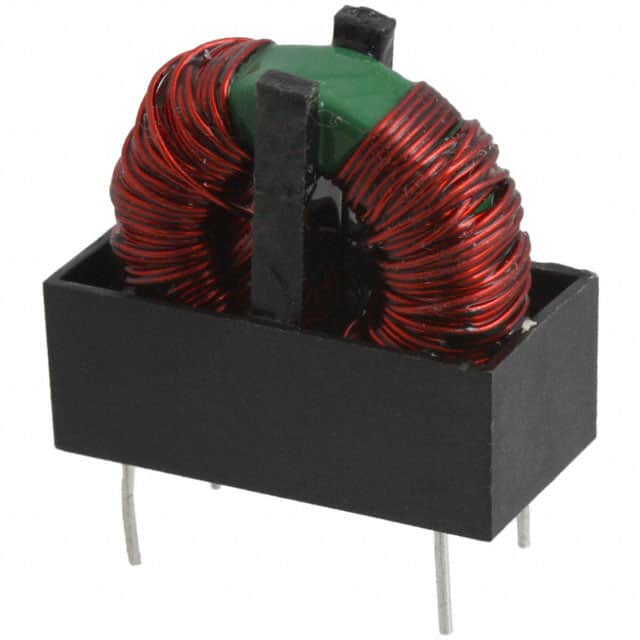

PE-62911NLCMC 10MH 1.8A 2LN TH |
195 | 8.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1.8A | 240mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

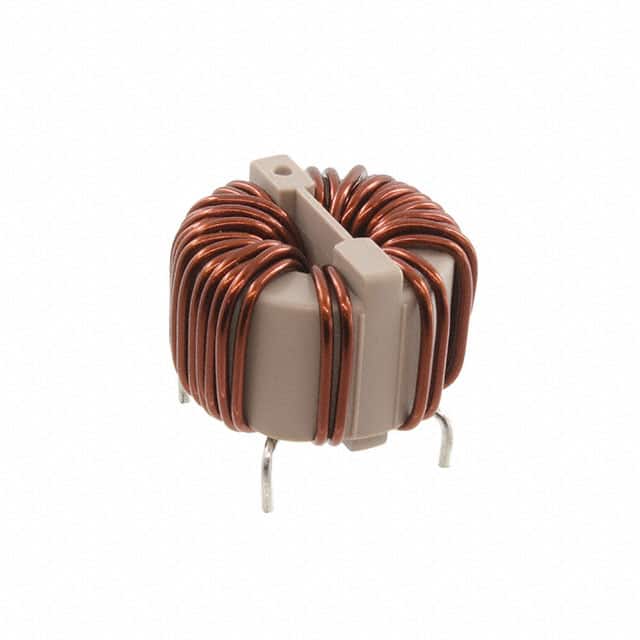

SC-10-E200HCMC 2MH 10A 2LN TH |
146 | 8.08 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

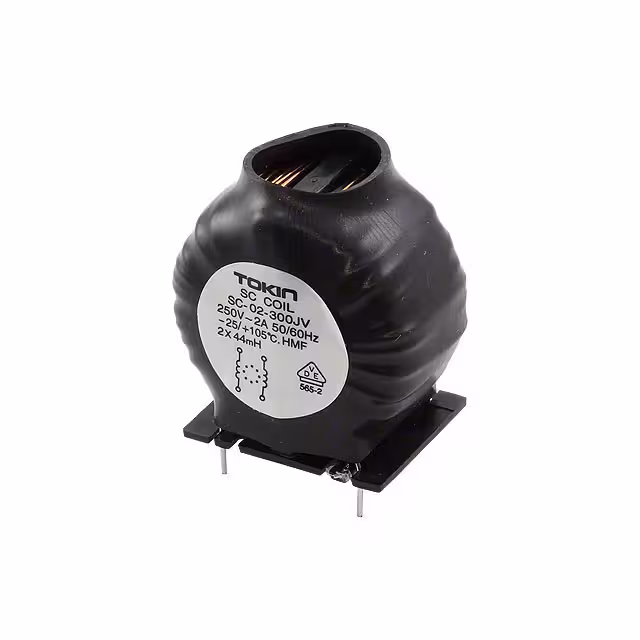

SC-02-300JVCMC 44MH 2A 2LN TH |
174 | 7.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 44 mH @ 16 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

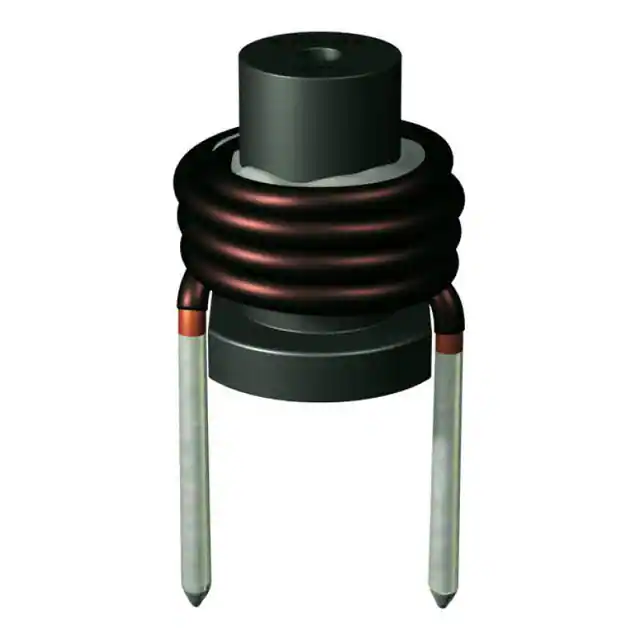

B82116S1221L127CMC 2.9UH 25A 1LN TH AEC-Q200 |
142 | 9.39 |
|
Datasheet |
Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 2.9 µH @ 10 kHz | 25A | 1.4mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|
SC-07-E042JHCMC 4.2MH 7A 2LN TH |
249 | 8.50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
B82116S1221L026CMC 3.1UH 25A 1LN TH AEC-Q200 |
153 | 9.39 |
|
Datasheet |
Radial, Vertical Cylinder (Open) | Power Line | 2 | - | 3.1 µH @ 10 kHz | 25A | 1.8mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | - | - |
|

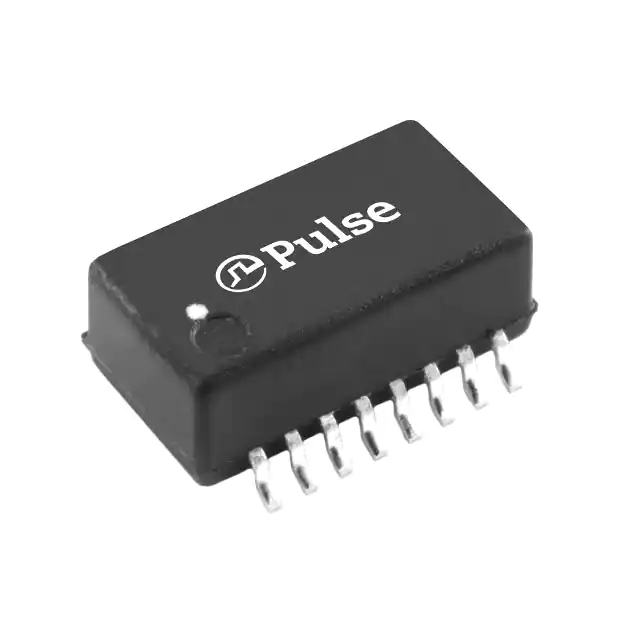

PE-69011NLTCMC 8LN SMD |
2,035 | 8.16 |
|
Datasheet |
Vertical, 16 Gull Wing | Signal Line | 8 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
SN14P-300JNMC 80.0UH 15.0A 0.0150 OHM TH |
256 | 8.25 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCR19XV-150-1R3A006JVCMC 220UH 15A 2LN TH AEC-Q200 |
234 | 8.98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-120-1R2A007JVCMC 300UH 12A 2LN TH AEC-Q200 |
206 | 8.98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-080-1R0A011JVCMC 750UH 8A 2LN TH AEC-Q200 |
126 | 8.98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
