Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMT908-H2CMC 4MH 5.2A 2LN TH ESD |
123 | 11.79 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 250V | - | - | - | - | - | - |
|
B82725S2103N003CMC 2.8MH 10A 2LN TH |
377 | 12.37 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 10 kHz | 10A | 12.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

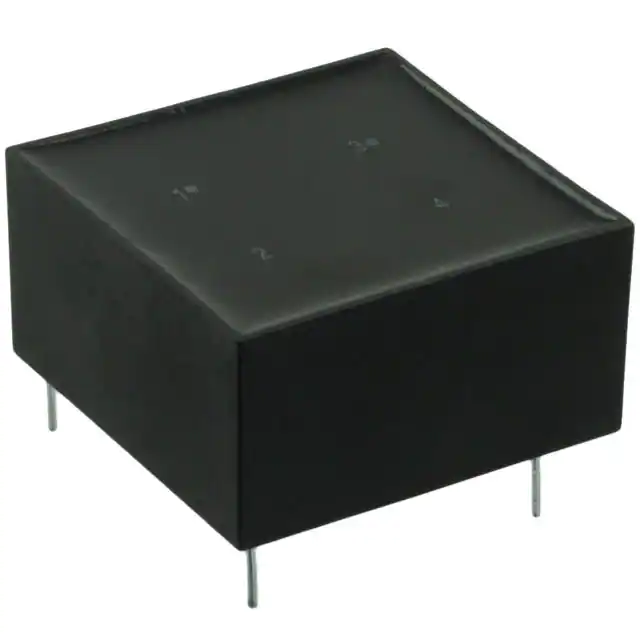

PE-62897NLCMC 2MH 7.5A 2LN TH |
396 | 11.36 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 7.5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

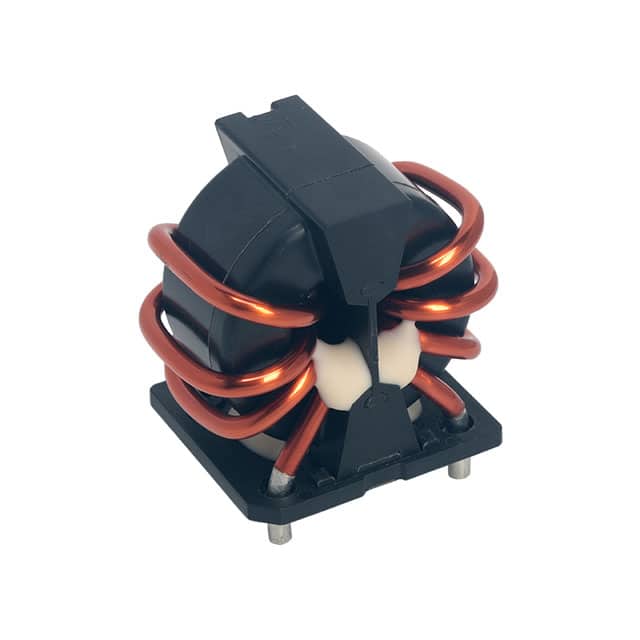

SCR25XV-070-1R1A022JVCMC 5.9MH 7A 2LN TH AEC-Q200 |
170 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.9 mH @ 100 kHz | 7A | 20.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-180-1R8A013JVCMC 1.9MH 18A 2LN TH AEC-Q200 |
212 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-210-2R1A010JVCMC 1.1MH 21A 2LN TH AEC-Q200 |
187 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 100 kHz | 21A | 2.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-070-1R2A030JVCMC 9.9MH 7A 2LN TH AEC-Q200 |
136 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.9 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

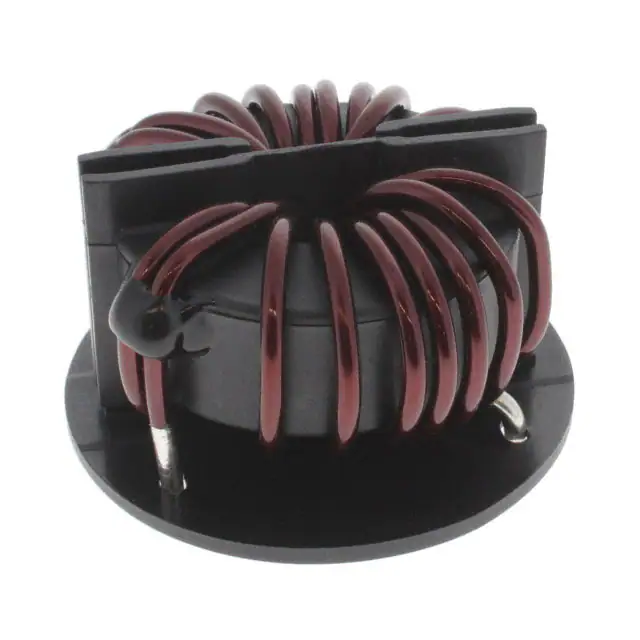

SCR38B-200-2R3A010JHCMC 1MH 20A 2LN TH |
160 | 11.90 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 3.4mOhm | 500V | 500V | 25°C ~ 120°C | - | - | - | - | - |
|
PL8205NLCMC 4.7A 2LN SMD |
140 | 9.79 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

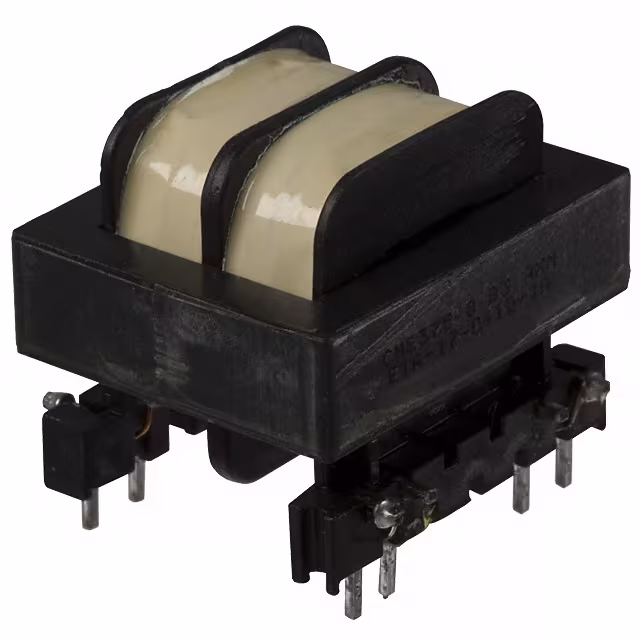

CME375-2CMC 6.9MH 4.4A 2LN TH ESD |
321 | 9.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.9 mH @ 10 kHz | 4.4A | 77mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
PE-62896NLCMC 4MH 5.2A 2LN TH |
133 | 11.49 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 5.2A | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

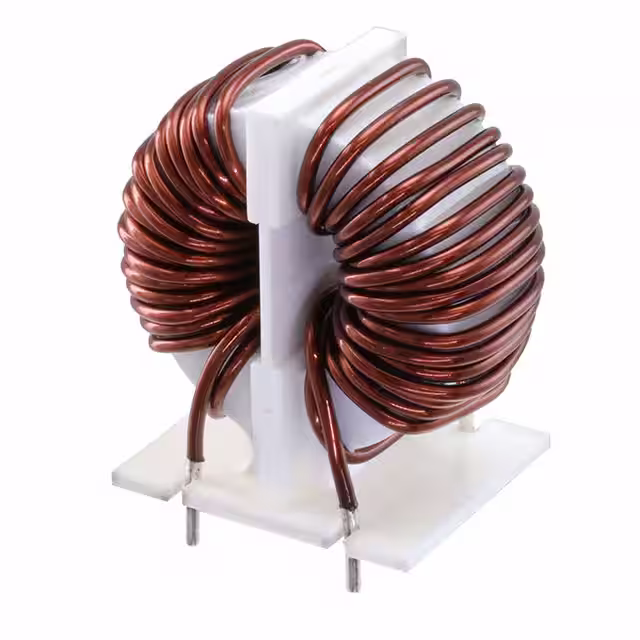

SC-12-15JCMC 1.5MH 12A 2LN TH |
145 | 10.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 12A | 18mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
8111-RCCMC 12MH 4A 2LN TH |
280 | 11.27 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

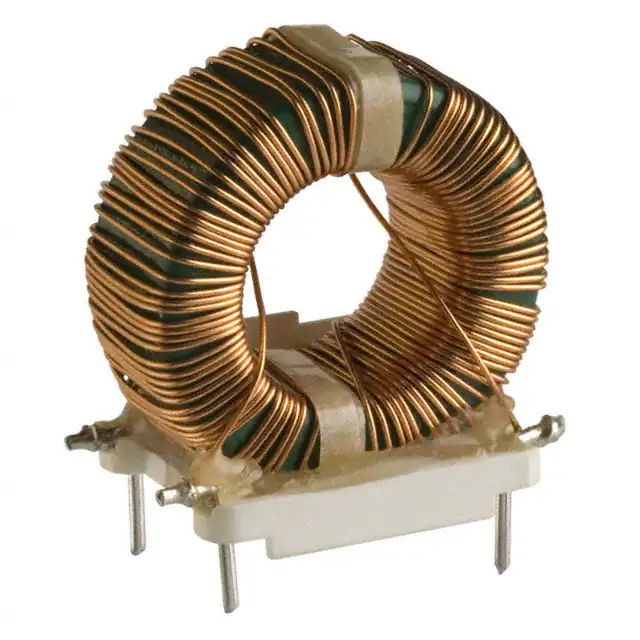

8110-RCCMC 20MH 2.9A 2LN TH |
1,917 | 11.27 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-050-1R0A027JHCMC 5.86MH 5A 2LN TH AEC-Q200 |
145 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.86 mH @ 100 kHz | 5A | 32.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-100-1R3A016JVCMC 2.05MH 10A 2LN TH AEC-Q200 |
140 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.05 mH @ 100 kHz | 10A | 10.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-310-2R3A004JHCMC 130UH 31A 2LN TH AEC-Q200 |
108 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 130 µH @ 100 kHz | 31A | 1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-310-2R3A004JHCMC 197UH 31A 2LN TH AEC-Q200 |
140 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 197 µH @ 100 kHz | 31A | 1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR25XV-280-2R1A005JVCMC 310UH 28A 2LN TH AEC-Q200 |
140 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 310 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR25XV-170-1R7A009JVCMC 1MH 17A 2LN TH AEC-Q200 |
136 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
