Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR25XV-220-1R9A007JVCMC 600UH 22A 2LN TH AEC-Q200 |
134 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 22A | 2.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR25XV-310-2R3A004JVCMC 197UH 31A 2LN TH AEC-Q200 |
114 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 197 µH @ 100 kHz | 31A | 0.95mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-350-2R4A003JHCMC 110UH 35A 2LN TH AEC-Q200 |
109 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR25XV-150-1R6A010JHCMC 1.23MH 15A 2LN TH AEC-Q200 |
107 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.23 mH @ 100 kHz | 15A | 4.74mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-120-1R6A017JHCMC 1.76MH 12A 2LN TH AEC-Q200 |
154 | 12.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.76 mH @ 100 kHz | 12A | 6.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-060-1R1A036JHCMC 7.9MH 6A 2LN TH AEC-Q200 |
119 | 12.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 6A | 27.4mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-270-2R3A006JVCMC 400UH 27A 2LN TH AEC-Q200 |
112 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-190-1R8A008JHCMC 1.6MH 19A 2LN TH AEC-Q200 |
122 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 19A | 3.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-110-1R4A013JVCMC 4.1MH 11A 2LN TH AEC-Q200 |
103 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.1 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-190-1R9A012JVCMC 480UH 19A 2LN TH AEC-Q200 |
120 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 480 µH @ 100 kHz | 19A | 3.28mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

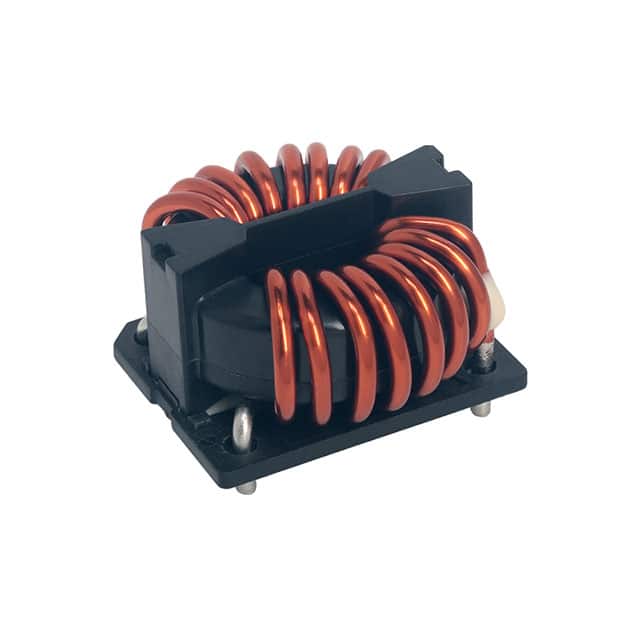

SCT29XV-270-2R3A006JHCMC 120UH 27A 2LN TH AEC-Q200 |
107 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | 27A | 1.18mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-250-2R2A008JHCMC 210UH 25A 2LN TH AEC-Q200 |
105 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 210 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

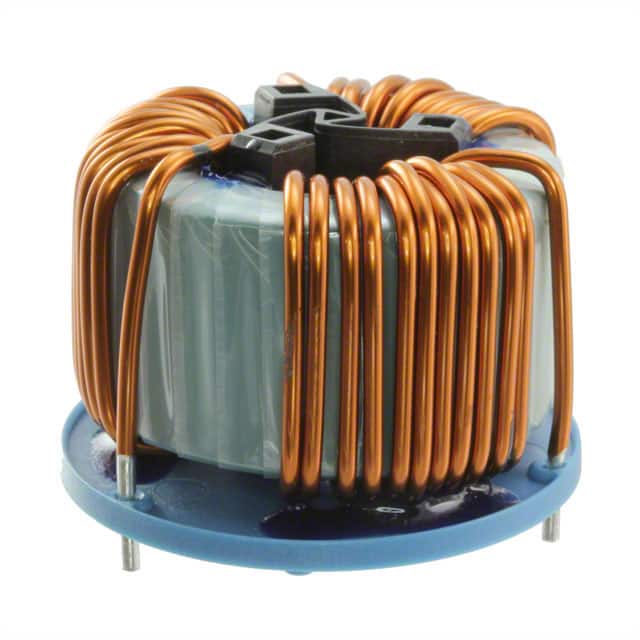

B82746S4143A040CMC 3.2MH 13A 3LN TH |
190 | 16.11 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3.2 mH @ 10 kHz | 13A | 6.5mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
SCF29XV-150-1R7A015JVCMC 2.5MH 15A 2LN TH AEC-Q200 |
239 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 15A | 5.04mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-080-1R3A026JVCMC 7.4MH 8A 2LN TH AEC-Q200 |
125 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.4 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-210-2R1A010JHCMC 1.1MH 21A 2LN TH AEC-Q200 |
122 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 100 kHz | 21A | 2.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-300-2R4A005JVCMC 270UH 30A 2LN TH AEC-Q200 |
117 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | 30A | 0.93mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35SXV-120-1R5A014JHCMC 9.5UH 12A 2LN TH AEC-Q200 |
195 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.5 µH @ 100 kHz | 12A | 6.36mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35XV-170-1R9A008JHCMC 4.8UH 17A 2LN TH AEC-Q200 |
160 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.8 µH @ 100 kHz | 17A | 3.25mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCN35XV-120-1R6A012JHCMC 9.8UH 12A 2LN TH AEC-Q200 |
160 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.8 µH @ 100 kHz | 12A | 6.85mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
