Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS2-10-RCMC 575UH 940MA 2LN SMD |
200 | 2.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 575 µH @ 100 kHz | 940mA | 170mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
047704IND CMC 3.3MH 10A |
138 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 11.5mOhm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|
|
CM13090CT-242CHOKE CMC 2.4MH 2.0A TH |
162 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 10 kHz | 2A | 50mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | Automotive | - | - |
|
|
CM13091CT-872CHOKE CMC 8.7MH 0.7A TH |
162 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.7 mH @ 10 kHz | 700mA | 215mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | Automotive | - | - |
|
|
CM13092CT-412CHOKE CMC 4.1MH 1.2A TH |
162 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 1.2A | 85mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | Automotive | - | - |
|
|
CM13093CT-102CHOKE CMC 1.0MH 2.8A TH |
142 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 10 kHz | 2.8A | 22mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | Automotive | - | - |
|
SC-10-15J-MICMC 1.5MH 10A 2LN TH |
177 | 6.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 10A | 15.7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-500CMC 100UH 5A 2LN TH |
338 | 2.98 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 5A | 40mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
B82792C0226N365CMC 22MH 200MA 2LN SMD |
456 | 3.02 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 22 mH @ 10 kHz | 200mA | 1.6Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-100-1R2A010JCMC 1MH 10A 2LN TH |
240 | 3.33 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 9.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR-070-1R0A030JHCMC 3MH 7A 2LN TH |
200 | 3.43 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 7A | 23mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-090-1R2A015JHCMC 1.5MH 9A 2LN TH |
199 | 3.43 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 9A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
HHBC10-0R8A0038VCMC 38UH 3A 2LN TH |
422 | 4.09 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 38 µH @ 100 kHz | 3A | 31.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J8103N040CMC 500UH 10A 2LN TH |
397 | 3.65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 9mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCR22-100-1R3A015JCMC 1.5MH 10A 2LN TH |
185 | 3.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 10A | 12mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

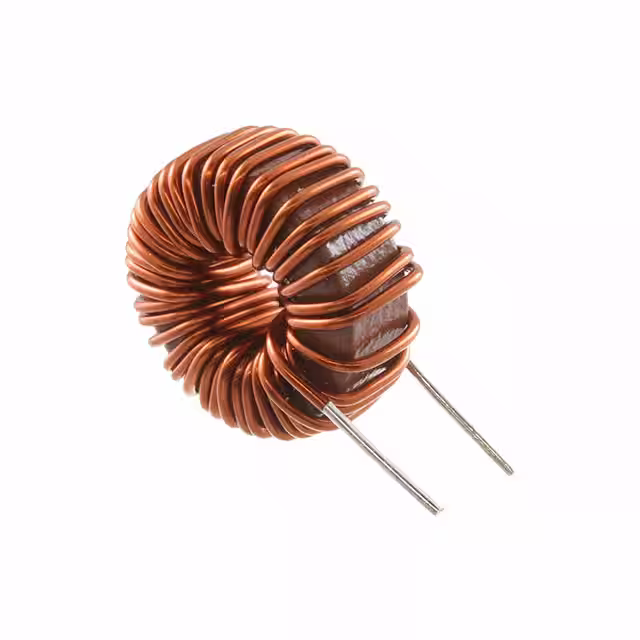

HHBC10-0R8A0068VCMC 68UH 3A 2LN TH |
197 | 2.56 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 68 µH @ 100 kHz | 3A | 42.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-040-E063JH-PCMC 6.3MH 4A 2LN TH |
113 | 3.73 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SCR-030-0R6A170JHCMC 15MH 3A 2LN TH |
194 | 3.22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 3A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AE3006CMC 450MA 2LN SMD AEC-Q200 |
1,898 | 3.12 |
|
- |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 450mA | - | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PM9407.104NLTIND CMC 120UH 20A |
467 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 20A | 2.5mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
