Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMJ-4-472CMC 4.7MH 200MA 4LN SMD |
810 | 3.05 |
|
Datasheet |
Horizontal, 4 Flat Lead | - | 4 | - | 4.7 mH @ 100 kHz | 200mA | 860mOhm (Typ) | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
SC-030-E110JH-PCMC 10.99MH 3A 2LN TH |
170 | 6.53 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10.99 mH @ 100 kHz | 3A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
TVHS-1.0-103CMC 10MH 1A 2LN SMD |
350 | 5.15 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 10 kHz | 1A | 450mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
B82725A2163N020CMC 560UH 16A 2LN TH |
400 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 16A | 7mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SN16-300JACMC 60UH 8A 2LN TH |
198 | 8.84 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 21mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
LDFL002302LS-V0ENANOCRYSTALLINE COMMON MODE COIL |
180 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 85mOhm | - | - | - | - | - | - | - | - |
|
PE-96181NLCMC 5A (TYP) 2LN TH |
180 | 5.96 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A (Typ) | 60mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL001802LS-V0ENANOCRYSTALLINE COMMON MODE COIL |
200 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 28 mH @ 10 kHz | 1A | 200mOhm | - | - | - | - | - | - | - | - |
|
DSO1-30-0004CMC 4A 2LN TH |
200 | 5.28 |
|
Datasheet |
Radial | - | 2 | - | - | 4A | 40mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

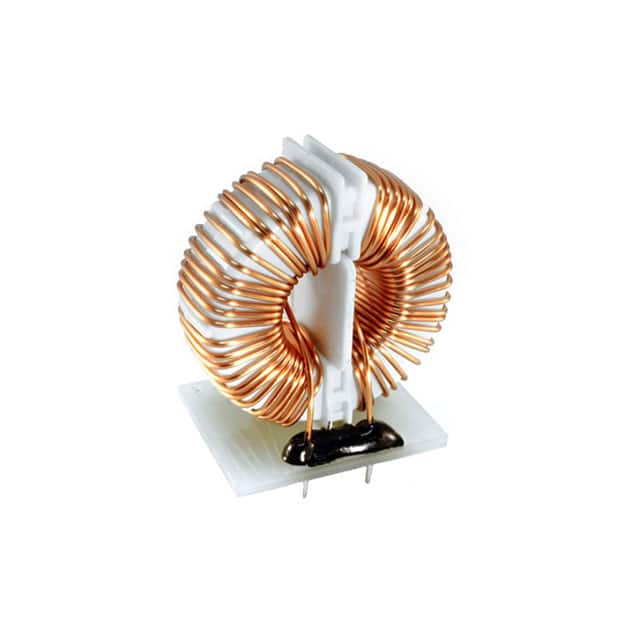

PA4416NLCMC 8A 2LN 13.8K OHM TH |
382 | 11.60 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 13.8 kOhms @ 1.96 MHz | - | 8A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CCJ-4-221CMC 220UH 330MA 4LN SMD |
375 | 4.98 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | 220 µH @ 100 kHz | 330mA | 190mOhm (Typ) | - | - | 0°C ~ 70°C | - | - | - | - | - |
|

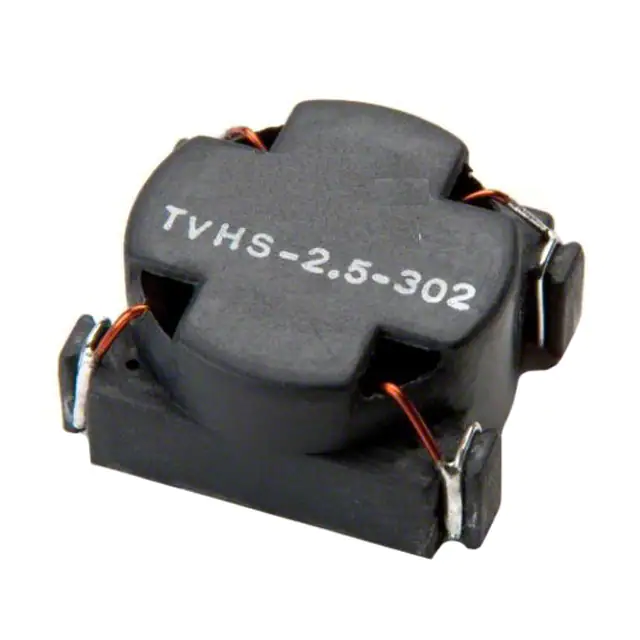

TVHS-2.5-302CMC 3MH 2.5A 2LN SMD |
220 | 5.25 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 3 mH @ 10 kHz | 2.5A | 80mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL014172VD-V0ECMC 1.7MH 14A 2LN TH |
462 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1.7 mH @ 100 kHz | 14A | 7mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
CMX1211W182B-10CMC 1.8UH 9A 2LN SMD |
426 | 4.94 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.8 µH @ 100 kHz | 9A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SN16-500CMC 168UH 8A 2LN TH |
244 | 9.10 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 168 µH @ 100 kHz | 8A | 31mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
LDFW012202Y6-V0ECMC 2MH 12A 2LN TH |
462 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 12A | 7.5mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
CMX1211Z321B-10CMC 320UH 28A 2LN SMD |
221 | 5.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 320 µH @ 100 kHz | 28A | 2.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM9408.254NLTIND CMC 150UH 32A |
120 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | 600 Ohms @ 2 MHz | - | 32A | 1.9mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
CMX1211Z181B-10CMC 180UH 32A 2LN SMD |
470 | 5.58 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 180 µH @ 100 kHz | 32A | 1.35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CM9900-104CMC 100UH 2.8A 2LN TH |
388 | 10.71 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 2.8A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
