Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
047700IND CMC 1.5MH 14A |
214 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 14A | 7.3mOhm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|
|
PM9407.204NLTIND CMC 200UH 17A |
200 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 17A | 3.5mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ICM6050ER551MCM CHOKE 10A 550 OHM |
494 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 4mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ICM6050ER301NCM CHOKE 14A 300 OHM |
490 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 14A | 3.5mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RL-9750-2-35,0CM CHOKE 35MH 1.1OHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 35 mH @ 10 kHz | 600mA | 1.1Ohm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2VM-1,2CM CHOKE 1.2MH 43MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 43mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2HL-1,7CM CHOKE 1.7MH 45MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 3.2A | 45mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2VM-2,7CM CHOKE 2.7MH 110MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 2A | 110mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2VM-3,9CM CHOKE 3.9MH 133MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1.8A | 133mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2HL-12,0CM CHOKE 12MH 300MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 1.2A | 300mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-2HM -33,0CM CHOKE 33MH 2.69OHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 300mA | 2.691Ohm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

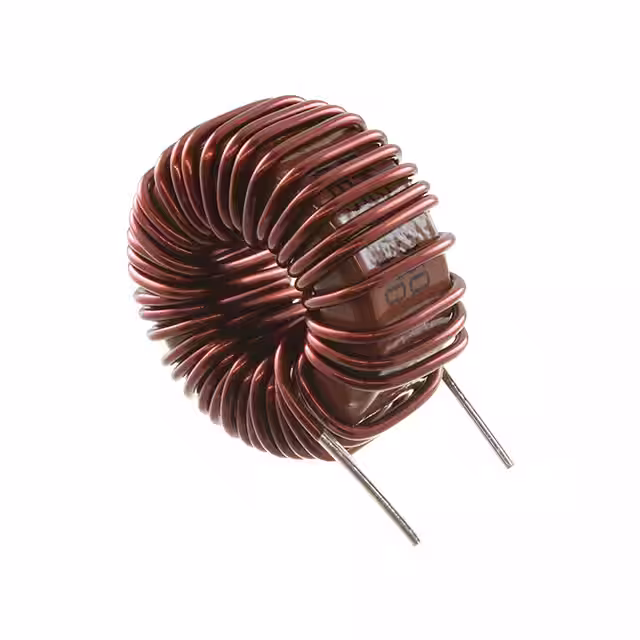

HHBC14-1R2A0120VCMC 120UH 8A 2LN TH |
119 | 4.38 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 120 µH @ 100 kHz | 8A | 29.9mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
047701IND CMC 1.8MH 13A |
230 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 13A | 8mOhm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|
|
047702IND CMC 2.2MH 12A |
236 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 12A | 9.2mOhm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|
|
047703IND CMC 2.7MH 11A |
234 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 11A | 10.4mOhm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|

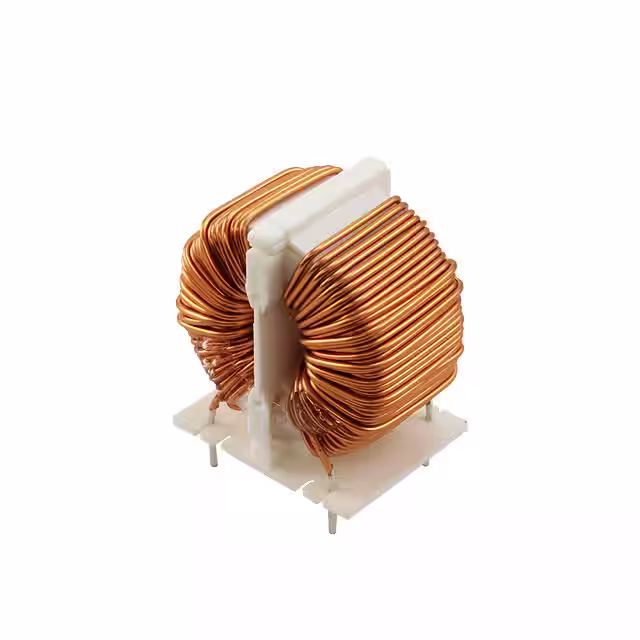

SC-05-80JCMC 8MH 4A 2LN TH |
200 | 4.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 90mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RL-9750-3-12,0CM CHOKE 12MH 212MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.6A | 212mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3HL-8,7CM CHOKE 8.7MH 134MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.7 mH @ 10 kHz | 2A | 134mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3-28,0CM CHOKE 28MH 500MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 500mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
RL-9750-3-14,0CM CHOKE 14MH 240MOHM TH |
250 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 240mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
