Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

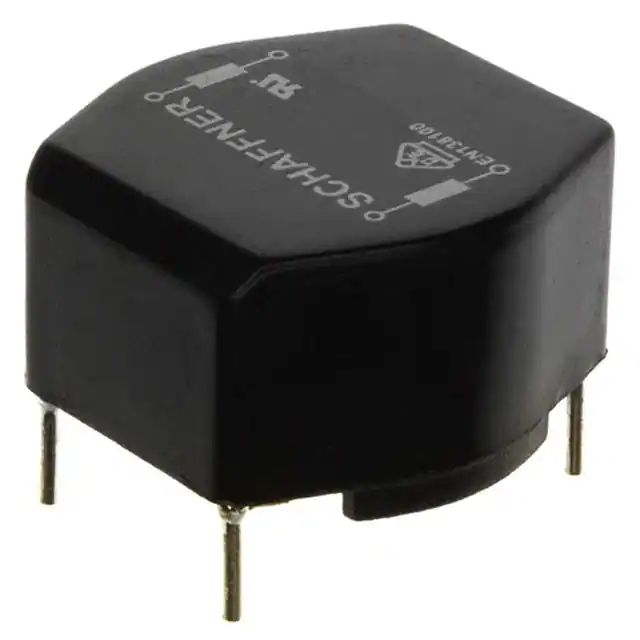

RN114-0.8-02-27MCMC 27MH 800MA 2LN TH |
18,831 | 2.22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

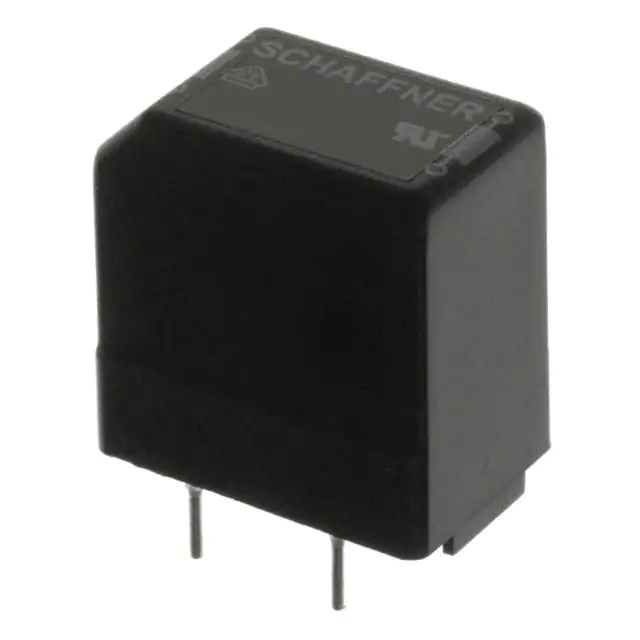

RN214-0.8-02-27MCMC 27MH 800MA 2LN TH |
5,011 | 2.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PA2756NLCMC 8A 2LN SMD |
3,020 | 2.69 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 484 µH @ 100 MHz | 8A | 7.7mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PA2753NLCMC 12.5A 2LN SMD |
1,548 | 2.62 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 12.5A | 3mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

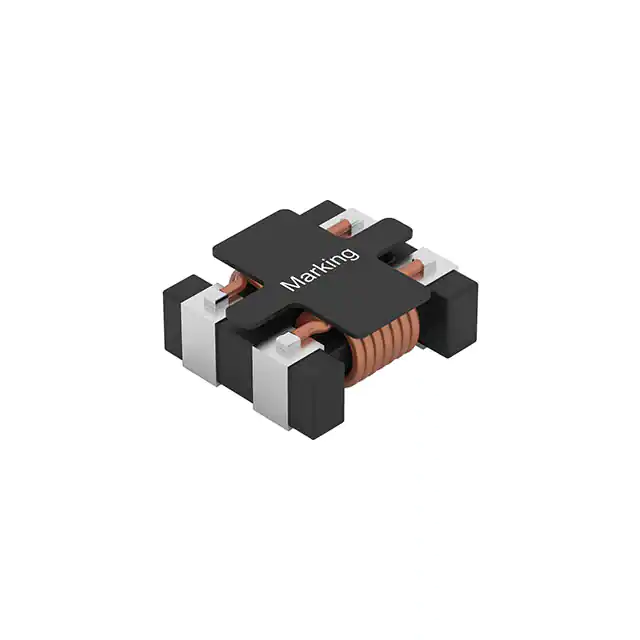

744237701CMC 9UH 8A 2LN 700OHM SMD |
1,436 | 2.57 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | 1000V (1kV) | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
RN214-1-02-15MCMC 15MH 1A 2LN TH |
5,672 | 2.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

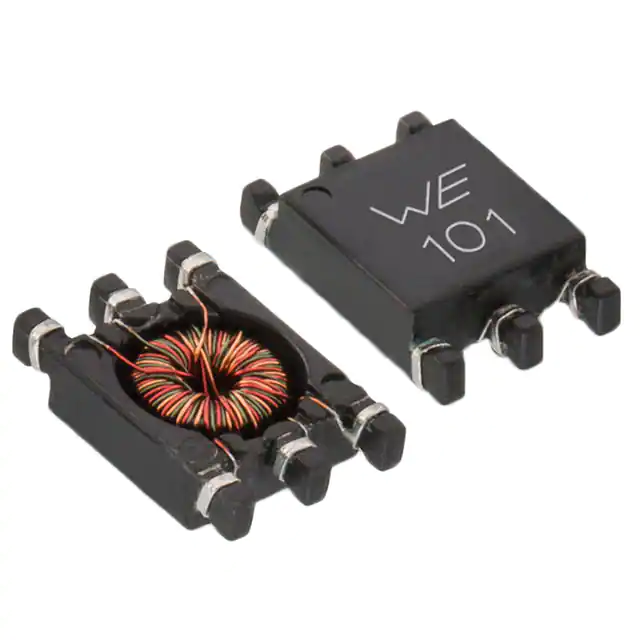

744253101CMC 100UH 450MA 3LN SMD |
3,515 | 2.58 |
|
Datasheet |
- | Signal Line | 3 | - | 100 µH @ 100 kHz | 450mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN114-1-02-15MCMC 15MH 1A 2LN TH |
1,529 | 2.25 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

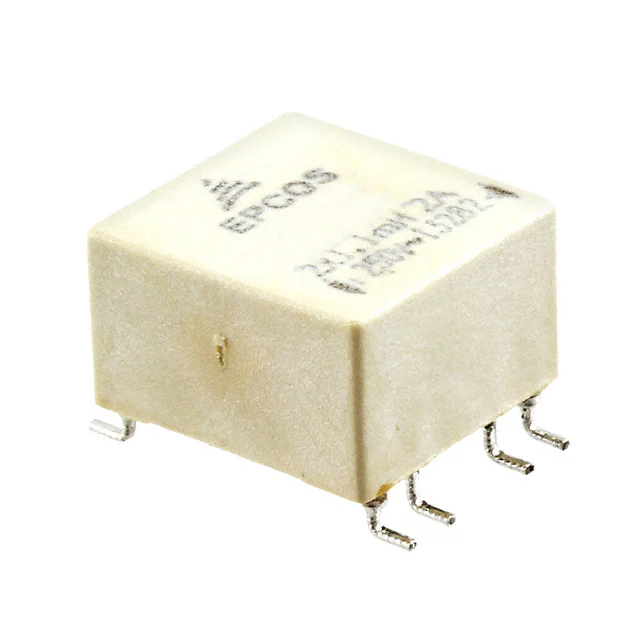

B82720S2202N040CMC 1.1MH 2A 2LN SMD |
907 | 3.49 |
|
Datasheet |
Horizontal, 8 Gull Wing | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

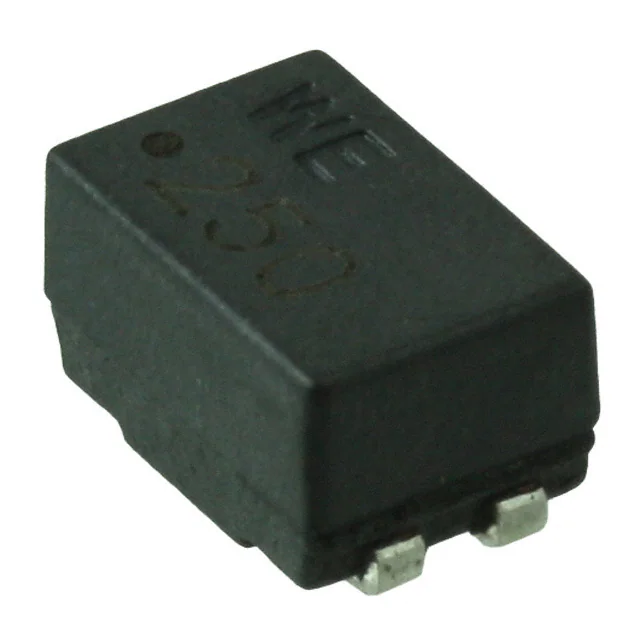

744223CMC 500UH 1A 2LN 3.3K OHM SMD |
5,196 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.3 kOhms @ 6 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
|
744222CMC 1MH 800MA 2LN 6KOHM SMD |
4,597 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 6 kOhms @ 4 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744226CMC 10UH 1.6A 2LN 920 OHM SMD |
4,539 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 920 Ohms @ 100 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744227CMC 51UH 1A 2LN 5.5K OHM SMD |
3,695 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 5.5 kOhms @ 10 MHz | 51 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744221CMC 2MH 600MA 2LN 9.2K OHM SMD |
1,673 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 9.2 kOhms @ 2 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744225SCMC 40UH 900MA 2LN 3.1K OHM SMD |
1,109 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.1 kOhms @ 50 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744220CMC 4.7MH 500MA 2LN 20K OHM SMD |
858 | 2.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 20 kOhms @ 1 MHz | 4.7 mH @ 100 kHz | 500mA | 750mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN214-4-02-1M5CMC 1.5MH 4A 2LN TH |
22,170 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 34mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN214-2-02-4M2CMC 4.2MH 2A 2LN TH |
1,051 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

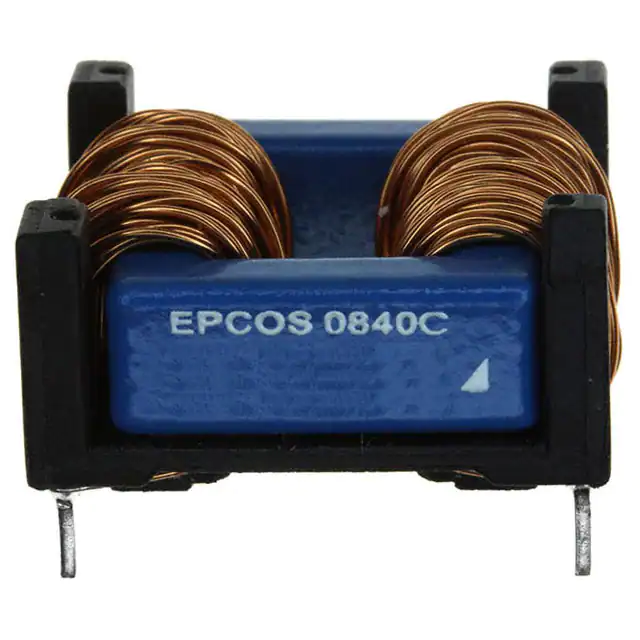

B82732F2451B001CMC 100MH 450MA 2LN TH |
1,248 | 3.40 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 450mA | 2.93Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

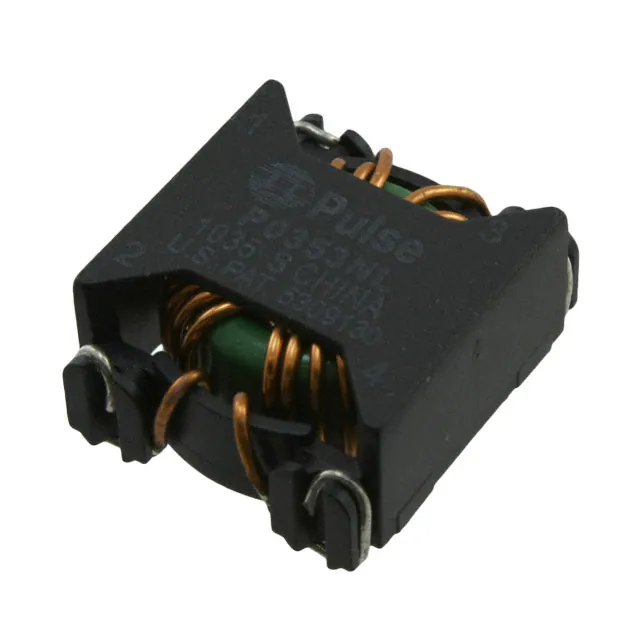

P0353NLCMC 5.6A 2LN SMD |
969 | 2.83 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
