Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF29XV-060-1R1A036JVCMC 14.2MH 6A 2LN TH AEC-Q200 |
1,714 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14.2 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

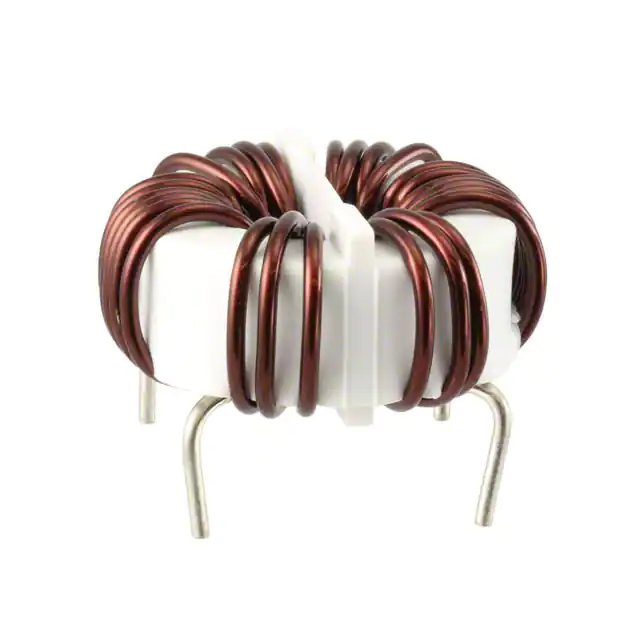

SC-20-100CMC 1MH 20A 2LN TH |
1,028 | 15.32 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | 8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR29XV-050-1R0A044JHCMC 11.8MH 5A 2LN TH AEC-Q200 |
100 | 12.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-090-1R4A022JVCMC 2.95MH 9A 2LN TH AEC-Q200 |
2,068 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.95 mH @ 100 kHz | 9A | 10.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-270-2R3A006JVCMC 220UH 27A 2LN TH AEC-Q200 |
2,486 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-300-2R4A005JVCMC 153UH 30A 2LN TH AEC-Q200 |
1,960 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 153 µH @ 100 kHz | 30A | 0.93mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-180-1R8A013JVCMC 1.04MH 18A 2LN TH AEC-Q200 |
2,016 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.04 mH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-090-1R4A022JHCMC 2.95MH 9A 2LN TH AEC-Q200 |
3,334 | 12.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.95 mH @ 100 kHz | 9A | 10.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

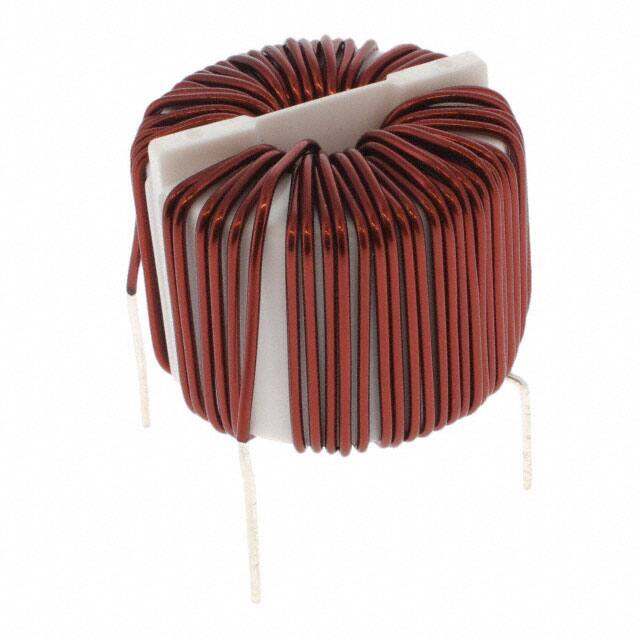

SC-09-1400CMC 14MH 9A 2LN TH |
4,888 | 12.32 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 9A | 53mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCR29XV-110-1R5A019JHCMC 2.2MH 11A 2LN TH AEC-Q200 |
2,531 | 12.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-050-1R0A044JVCMC 6.47MH 5A 2LN TH AEC-Q200 |
4,496 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.47 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-270-2R3A006JVCMC 120UH 27A 2LN TH AEC-Q200 |
4,453 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

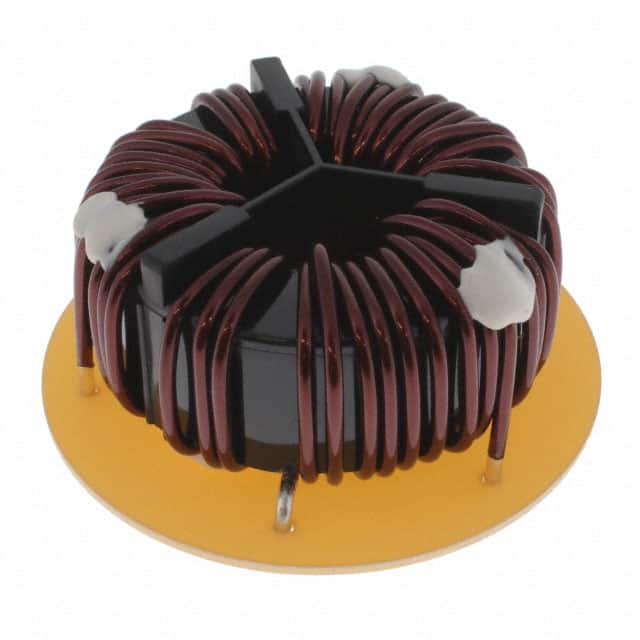

SCR47-140-S1R8A025JH-PCMC 2.5MH 14A 3LN TH |
1,998 | 15.59 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 10 kHz | 14A | 9mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
DKIV-1-3243-207L-NKCMC 20A 2LN TH |
1,014 | 17.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 20A | 2.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
744831020133CMC 2MH 13.3A 2LN TH |
2,525 | 17.50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 13.3A | 13mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF29XV-090-1R4A022JVCMC 5.3MH 9A 2LN TH AEC-Q200 |
1,265 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 100 kHz | 9A | 10.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-110-1R5A019JVCMC 4MH 11A 2LN TH AEC-Q200 |
4,887 | 13.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 8mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-080-1R3A026JHCMC 7.4MH 8A 2LN TH AEC-Q200 |
4,879 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.4 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF47B-200-S1R9B026JCMC 2.6MH 20A 3LN TH |
3,834 | 20.20 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2.6 mH @ 100 kHz | 20A | 2.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

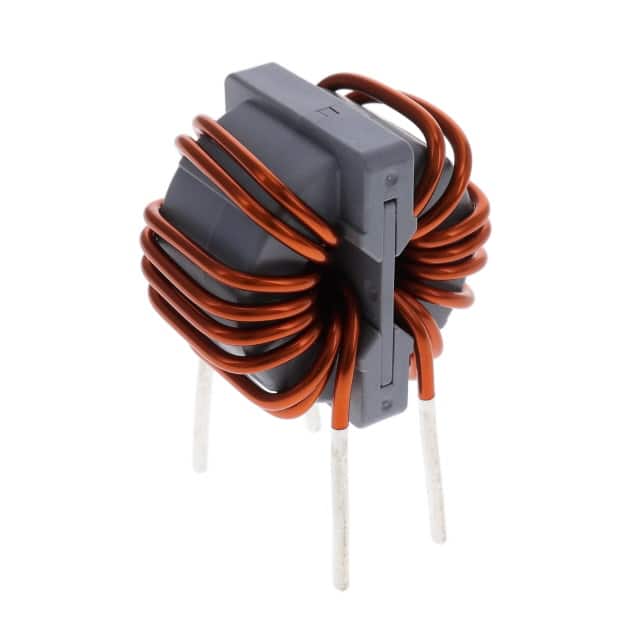

LDFL021252VBUV0ECMC 2.5MH 21A 2LN TH |
2,825 | 14.46 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.5 mH @ 100 kHz | 21A | 4.5mOhm | 700V | - | - | - | - | - | - | - |
