Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM6460-104CMC 100UH 7A 2LN SMD |
100 | 15.06 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 10 kHz | 7A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
SCT39XV-220-2R3A012JHCOMMON MODE 1.07MH 22A 3.580 MOH |
1,693 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.07 mH @ 100 kHz | 22A | 3.58mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT39XV-130-1R7A022JHCOMMON MODE 3.6MH 13A 11.100MOHM |
4,654 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 13A | 11.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-170-Y1R8A006JHINDUCTOR CMC 0.47MH 17A |
4,990 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 470 µH @ 100 kHz | 17A | 2.83mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

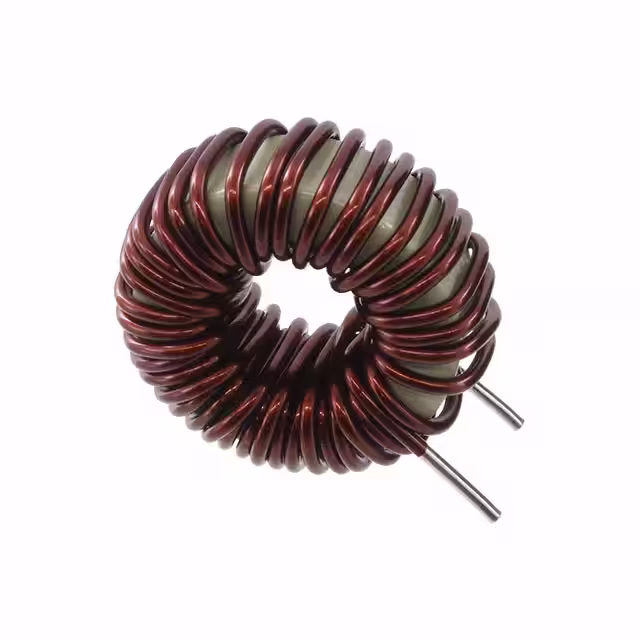

PHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
3,738 | 11.58 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL032142V22V0ECMC 1.4MH 32A 2LN TH |
4,360 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 100 kHz | 32A | 1.9mOhm | 500V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFW020412Y22V0ECMC 4.1MH 20A 2LN TH |
2,128 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.1 mH @ 100 kHz | 20A | 4.9mOhm | 500V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
RT8522-32-1M5VERTICAL 32 A PCB TWO LINE COMMO |
4,481 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | - | 3.4mOhm | 425V | 300V | -40°C ~ 100°C | - | UR | - | - | - |
|
|
SCF39XV-280-S2R4A006JHCMC 0.9MH 28A HRZ |
1,474 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 28A | 1.61mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
RT8122-32-1M5HORIZONTAL 32 A PCB TWO LINE COM |
2,261 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | - | 3.4mOhm | 425V | 300V | -40°C ~ 100°C | - | UR | - | - | - |
|
|
RT8522-40-1M2VERTICAL 40 A PCB TWO LINE COMMO |
2,097 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | - | 2.2mOhm | 425V | 300V | -40°C ~ 100°C | - | UR | - | - | - |
|
|
SCR39XV-240-2R4A011JHINDUCTOR CMC 1.6MH 24A |
1,975 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 24A | 3.04mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-140-1R8A019JHINDUCTOR CMC 4.8MH 14A |
2,317 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.8 mH @ 100 kHz | 14A | 8.66mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-200-2R2A013JHINDUCTOR CMC 2.23MH 20A |
2,152 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.23 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-180-2R0A015JHINDUCTOR CMC 3MH 18A |
4,315 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 18A | 5.98mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-160-1R9A017JHINDUCTOR CMC 3.8MH 16A |
1,360 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 100 kHz | 16A | 7.12mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-100-1R5A028JHINDUCTOR CMC 10.3MH 10A |
1,596 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10.3 mH @ 100 kHz | 10A | 17.91mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-420-2R4B004JHINDUCTOR CMC 0.21MH 42A |
4,971 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 210 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
LDFL015302LR-V0ENANOCRYSTALLINE COMMON MODE COIL |
4,030 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 15A | 10mOhm | - | - | - | - | - | - | - | - |
|
DKIH-3242-20D5CMC 20A 2LN TH |
2,612 | 18.18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 20A | 2.5mOhm | 425V | 300V | -40°C ~ 100°C | - | cURus, ENEC | - | - | - |
