Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

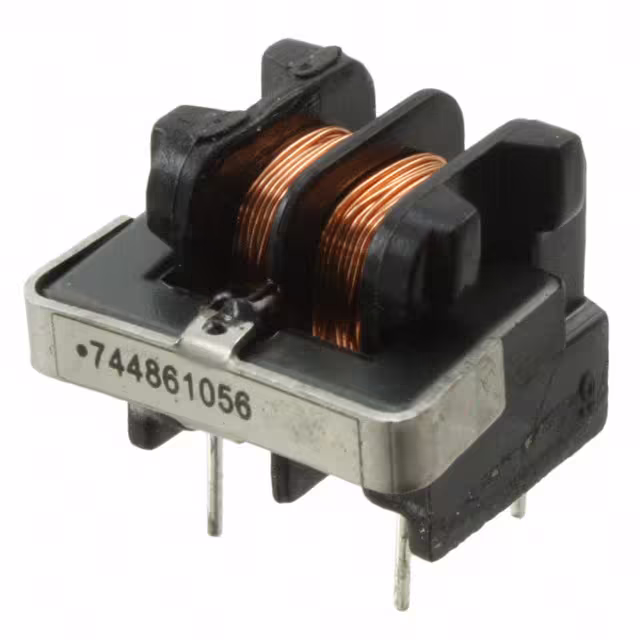

744861056CMC 5.6MH 600MA 2LN TH |
3,470 | 3.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 600mA | 830mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|

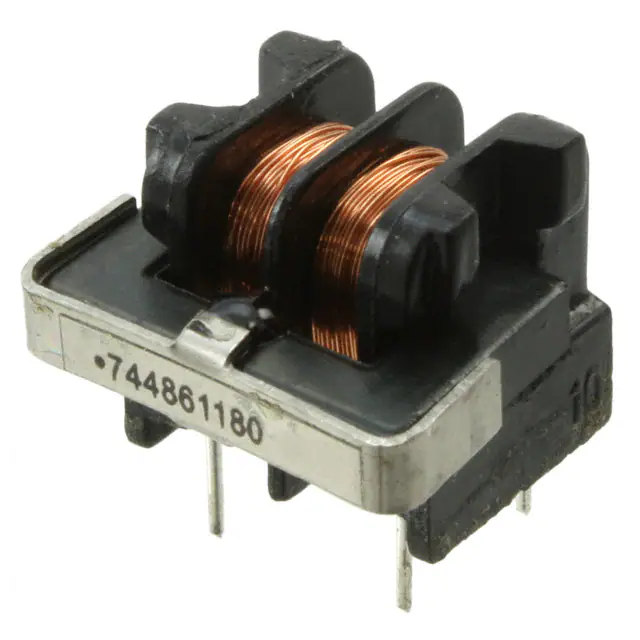

744861180CMC 18MH 300MA 2LN TH |
4,204 | 3.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 300mA | 3.1Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
750311898CMC 57MH 180MA 2LN TH |
4,438 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 57 mH @ 10 kHz | 180mA | 15.7Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

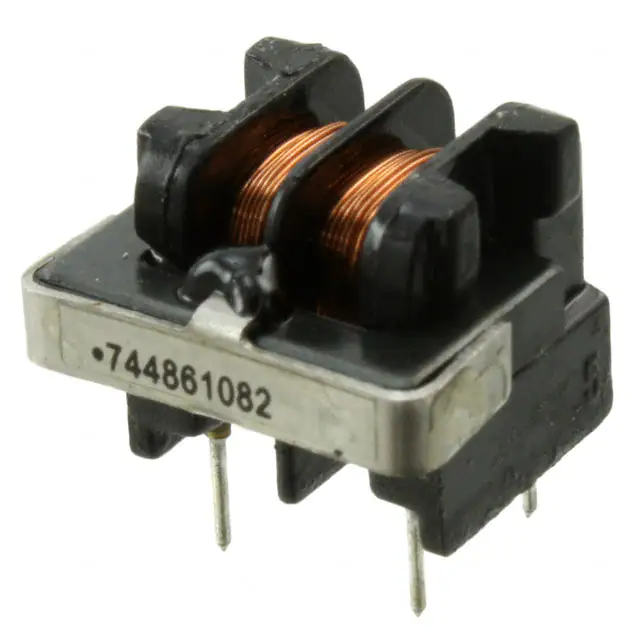

744861082CMC 8.2MH 500MA 2LN TH |
4,215 | 3.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.2 mH @ 10 kHz | 500mA | 1.3Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|

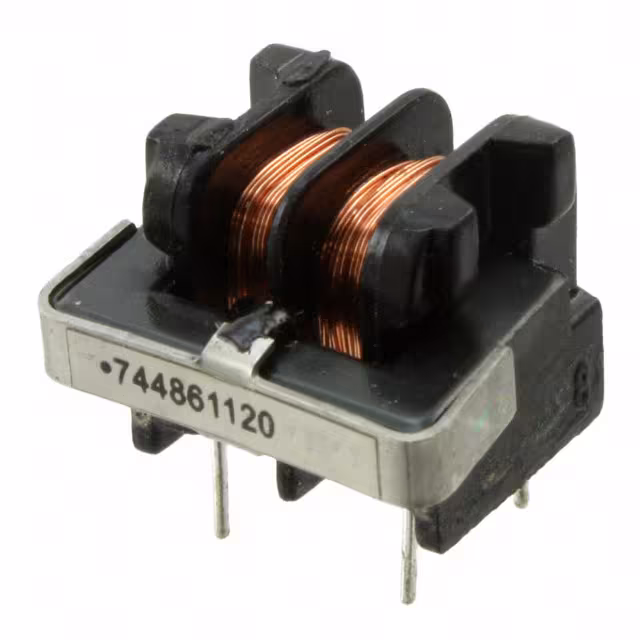

744861120CMC 12MH 400MA 2LN TH |
2,492 | 3.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 400mA | 2Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
CAO-5.0-1.5CMC 1.5MH 5A 2LN TH |
3,814 | 3.99 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 5A | 22mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7106-RCCMC 510UH 2A 2LN TH |
2,429 | 2.76 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 510 µH @ 1 kHz | 2A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
PM9407.304NLTIND CMC 280UH 14A |
3,363 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 14A | 4.8mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PM9407.404NLTIND CMC 360UH 12A |
154 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 12A | 5.3mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PM9407.504NLTIND CMC 480UH 10A |
132 | 0.00 |
|
Datasheet |
Horizontal, 11 PC Pad | Power Line | 2 | - | - | 10A | 7.8mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7446722004CMC 4.2MH 1.9A 2LN TH |
4,367 | 5.28 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 1.9A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-060-0R9A040JCMC 4MH 6A 2LN TH |
4,577 | 5.37 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN16P-400JNMC 108.0UH 8.0A 0.0270 OHM TH |
100 | 4.95 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN13-500CMC 143UH 6A 2LN TH |
2,767 | 6.93 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 143 µH @ 100 kHz | 6A | 36mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN20P-240NMC 40.0UH 20.0A 0.0100 OHM TH |
2,744 | 5.44 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
744834220WE-CMBH COMMON MODE POWER LINE C |
1,873 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 230mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, VDE | - | - | - |
|
DSO1-175-0002CMC 630MA 2LN TH |
1,862 | 3.23 |
|
Datasheet |
Radial | - | 2 | - | - | 630mA | 550mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DS1-20-0001CMC 630MA 2LN TH |
4,069 | 5.91 |
|
Datasheet |
Radial | - | 2 | - | - | 630mA | 700mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SN16-400CMC 108UH 8A 2LN TH |
100 | 4.93 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
DSO1-30-0003CMC 3.15A 2LN TH |
100 | 5.28 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 70mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
