Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

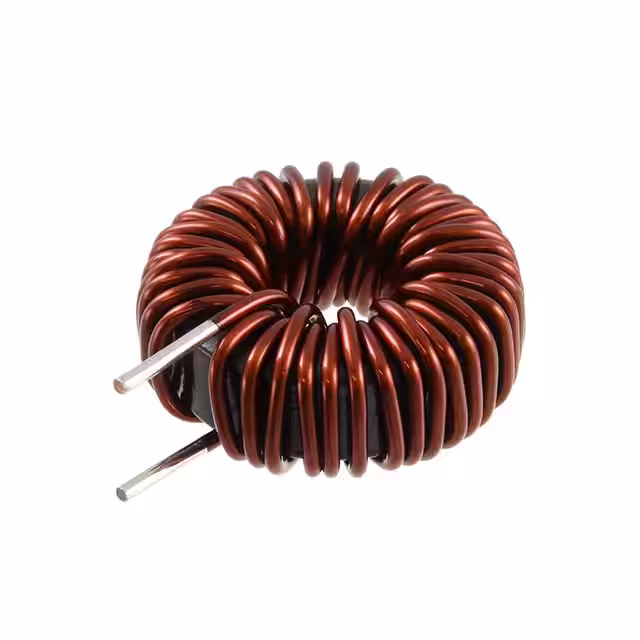

HHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
2,508 | 11.39 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

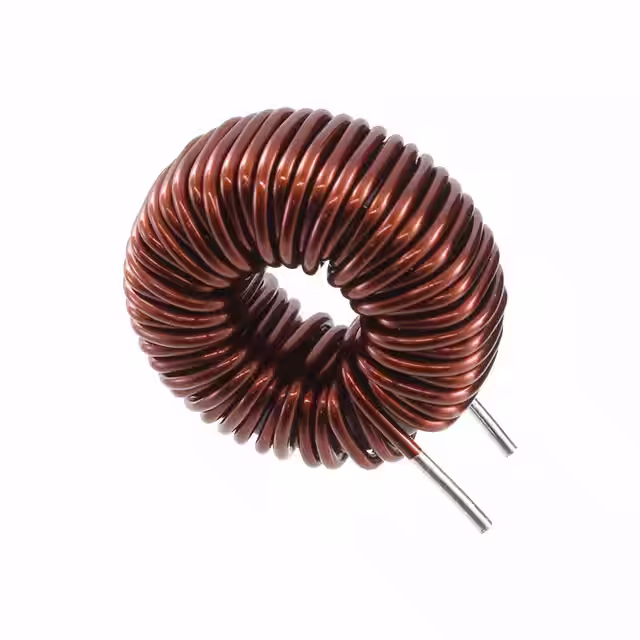

HHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
2,789 | 7.48 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 152 µH @ 100 kHz | 12A | 20.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
4,514 | 6.01 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM9408.494NLTIND CMC 290UH 21A |
2,814 | 0.00 |
|
Datasheet |
Nonstandard | Power Line | 2 | 2 kOhms @ 1.1 MHz | - | 21A | 4mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
PM9408.155NLTIND CMC 870UH 12A |
4,515 | 0.00 |
|
Datasheet |
Nonstandard | Power Line | 2 | 5.5 kOhms @ 950 kHz | - | 12A | 13mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
PM9408.164NLTIND CMC 95UH 39A |
119 | 0.00 |
|
Datasheet |
Nonstandard | Power Line | 2 | 400 Ohms @ 1.6 MHz | - | 39A | 1.4mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82615B2102M001CMC 20MH 1A 2LN TH PFC |
3,543 | 6.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1A | 3Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
DS1-30-0003CMC 3.15A 2LN TH |
2,709 | 9.58 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 3.15A | 55mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82725S2253B040SMD RING CORE CHOKE 2X0.65MH 25A |
3,556 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 650 µH @ 100 kHz | 25A | 1.95mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
PE-96188NLCMC 10A (TYP) 2LN TH |
4,075 | 9.40 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 10A (Typ) | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-08-E1000CMC 10MH 8A 2LN TH |
1,445 | 8.20 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
LDFL026152VBUV0ECMC 1.5MH 26A 2LN TH |
2,423 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 1.5 mH @ 100 kHz | 26A | 2.9mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
CAV-16-0.15CMC 150UH 16A 2LN TH |
1,529 | 8.18 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 150 µH @ 10 kHz | 16A | 3mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL011742VV-V0ECMC 7.4MH 11A 2LN TH |
3,898 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 7.4 mH @ 100 kHz | 11A | 15mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-150-S1R7A011JHINDUCTOR CMC 1.6MH 15A |
4,497 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 15A | 5.45mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-140-S1R6A014JHINDUCTOR CMC 2.6MH 14A |
3,984 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 14A | 7.87mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
LDFL015372VBUV0ECMC 3.7MH 15A 2LN TH |
4,484 | 0.00 |
|
Datasheet |
Radial, Vertical (Open) | Power Line | 2 | - | 3.7 mH @ 100 kHz | 15A | 6.7mOhm | 700V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-130-1R7A022JHINDUCTOR CMC 6.4MH 13A |
2,815 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.4 mH @ 100 kHz | 13A | 11.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-190-2R1A014JHINDUCTOR CMC 2.6MH 19A |
1,808 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 19A | 5.03mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-220-2R3A012JHINDUCTOR CMC 1.9MH 22A |
3,593 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 22A | 3.58mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
