Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RV8140-25-S01RV COMMON MODE CHOKE, MNZN, FOUR |
1,844 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 490 µH @ 100 kHz | 25A | 3mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
CM6149R-105CMC 1MH 400MA 2LN SMD |
4,956 | 10.35 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 400mA | 250mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6149R-154CMC 150UH 1.3A 2LN SMD |
2,995 | 10.35 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 150 µH @ 10 kHz | 1.3A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
RV8541-16-S16RV COMMON MODE CHOKE, NANO, FOUR |
2,800 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 560 µH @ 100 kHz | 16A | 5.6mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
LDFL020502V72H0ECMC 5MH 20A 2LN TH |
3,691 | 0.00 |
|
Datasheet |
Horizontal, No Base, 6 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 20A | 6mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
RV8140-40-S13RV COMMON MODE CHOKE, MNZN, FOUR |
3,082 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 170 µH @ 100 kHz | 40A | 1.3mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8140-32-S01RV COMMON MODE CHOKE, MNZN, FOUR |
4,880 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 340 µH @ 100 kHz | 32A | 2.1mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8541-25-S16RV COMMON MODE CHOKE, NANO, FOUR |
4,005 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 290 µH @ 100 kHz | 25A | 2.4mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
RV8140-50-S13RV COMMON MODE CHOKE, MNZN, FOUR |
2,154 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 80 µH @ 100 kHz | 50A | 0.9mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM6149R-683CMC 68UH 2A 2LN SMD |
190 | 14.78 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 68 µH @ 10 kHz | 2A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6149-474CMC 470UH 600MA 2LN SMD |
100 | 14.78 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 470 µH @ 10 kHz | 600mA | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

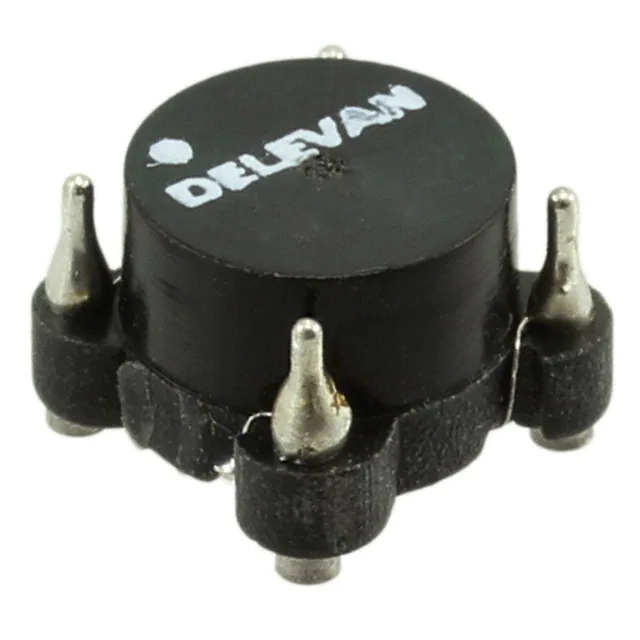

CM6149R-225CMC 2.2MH 180MA 2LN SMD |
3,446 | 14.78 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.2 mH @ 10 kHz | 180mA | 750mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
RV8540-16-S02RV COMMON MODE CHOKE, MNZN, FOUR |
3,129 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 880 µH @ 100 kHz | 16A | 6.9mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8140-40-S01RV COMMON MODE CHOKE, MNZN, FOUR |
4,182 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 220 µH @ 100 kHz | 40A | 1.3mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8541-32-S16RV COMMON MODE CHOKE, NANO, FOUR |
2,526 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 180 µH @ 100 kHz | 32A | 1.7mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
CM6460-334CMC 330UH 4A 2LN SMD |
100 | 15.06 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 330 µH @ 10 kHz | 4A | 17mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460-504CMC 500UH 3.3A 2LN SMD |
100 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-335CMC 3.3MH 850MA 2LN SMD |
4,627 | 15.06 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 3.3 mH @ 10 kHz | 850mA | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-754CMC 750UH 2.7A 2LN SMD |
2,373 | 15.06 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 10 kHz | 2.7A | 35mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
B82748S4503A020CHOKES |
1,819 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 800 µH @ 100 kHz | 50A | 1.5mOhm (Typ) | - | - | -40°C ~ 125°C | - | VDE | - | - | - |
