Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF47X-250-S1R9B010JHIND CMC 2.65MH 25A 2.91MOHM |
1,132 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.65 mH @ 100 kHz | 25A | 2.91mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-300-S2R0B009JVIND CMC 2.15MH 30A 2.31MOHM |
1,089 | 0.00 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2.15 mH @ 100 kHz | 30A | 2.31mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-350-S2R1B008JVIND CMC 1.69MH 35A 1.91MOHM |
2,747 | 0.00 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.69 mH @ 100 kHz | 35A | 1.91mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-400-S2R2B007JHIND CMC 1.3MH 40A 1.53MOHM |
1,010 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.3 mH @ 100 kHz | 40A | 1.53mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF39XV-440-Z2R0B005JHCMC 0.62MH 44A HRZ |
3,200 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 620 µH @ 100 kHz | 44A | 0.95mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-290-Y2R4A004JHCMC 0.4MH 29A HRZ |
4,624 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 29A | 1.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-310-Z1R8B008JHCMC 1.6MH 31A HRZ |
2,538 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 31A | 1.84mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-350-Z1R9B007JHCMC 1.2MH 35A HRZ |
3,622 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 35A | 1.42mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-500-Z2R4B004JHCMC 0.4MH 50A HRZ |
4,882 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 3 | - | 400 µH @ 100 kHz | 50A | 0.51mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-400-Y2R0B003JHCMC 0.23MH 40A HRZ |
1,413 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 230 µH @ 100 kHz | 40A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-240-Z2R3A010JHCMC 2.5MH 24A HRZ |
1,761 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 24A | 2.96mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

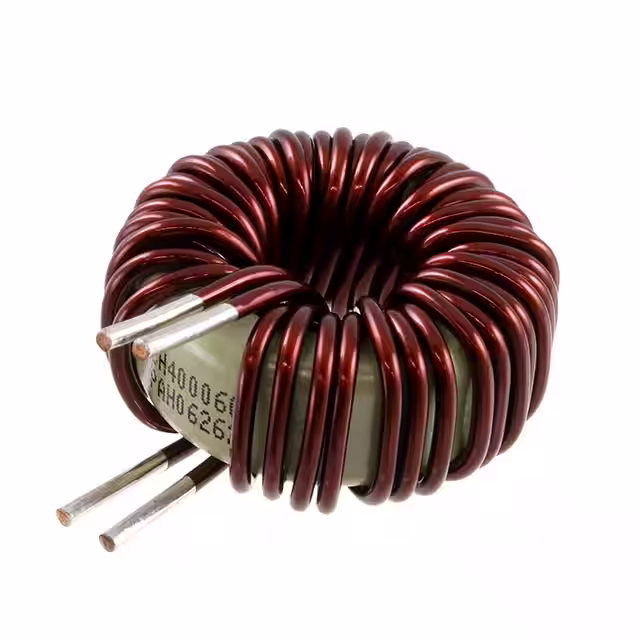

PHBC24N-2R1B0039VCMC 39UH 30A 2LN TH |
2,989 | 22.38 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 39 µH @ 100 kHz | 30A | 6.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8140-50-S03RV COMMON MODE CHOKE, MNZN, FOUR |
1,722 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 170 µH @ 100 kHz | 50A | 1.1mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RV8541-16-S06RV COMMON MODE CHOKE, NANO, FOUR |
1,457 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 810 µH @ 100 kHz | 16A | 5.3mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
LDFW035132Y72H0ENANOCRYSTALLINE COMMON MODE COIL |
2,601 | 0.00 |
|
Datasheet |
Horizontal, No Base, 6 PC Pin | Power Line | 2 | - | 1.3 mH @ 100 kHz | 35A | 1.7mOhm (Typ) | 500V | - | - | AEC-Q200 | - | - | - | - |
|
|
RV8541-25-S06RV COMMON MODE CHOKE, NANO, FOUR |
1,119 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 450 µH @ 100 kHz | 25A | 2.6mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|

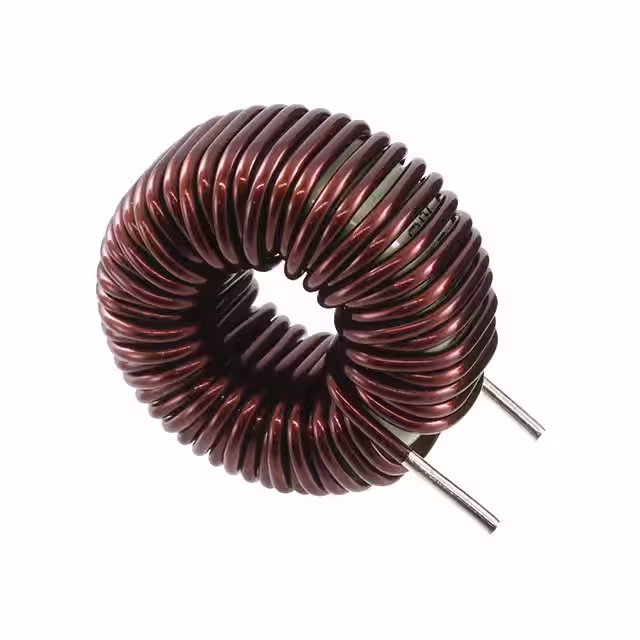

PHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
4,030 | 23.67 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DKIP-0329-20D6CMC 20A 3LN CHAS MNT |
3,728 | 31.69 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 20A | 5mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
RV8541-32-S06RV COMMON MODE CHOKE, NANO, FOUR |
4,225 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 320 µH @ 100 kHz | 32A | 1.8mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
RV8541-40-S06RV COMMON MODE CHOKE, NANO, FOUR |
4,770 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 200 µH @ 100 kHz | 40A | 1.2mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
