Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RV8540-40-S02RV COMMON MODE CHOKE, MNZN, FOUR |
3,223 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 220 µH @ 100 kHz | 40A | 1.4mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL015163VGQH0ECMC 15.7MH 15A 2LN TH |
4,507 | 0.00 |
|
Datasheet |
Horizontal, No Base, 6 PC Pin | Power Line | 2 | - | 15.7 mH @ 100 kHz | 15A | 15mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|

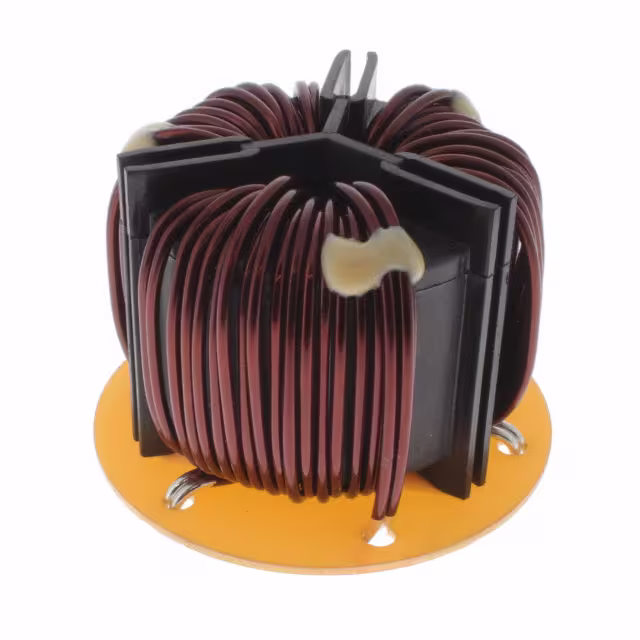

SCR47B-300-S1R7B020JHCMC 2MH 30A 3LN TH |
1,128 | 23.07 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2 mH @ 10 kHz | 30A | - | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
|
RV8140-25-S03RV COMMON MODE CHOKE, MNZN, FOUR |
1,836 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 690 µH @ 100 kHz | 25A | 3.7mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF47X-350-S2R1B008JHIND CMC 1.69MH 35A 1.91MOHM |
4,398 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.69 mH @ 100 kHz | 35A | 1.91mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-450-S2R3B006JVIND CMC 0.95MH 45A 1.16MOHM |
1,430 | 0.00 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 950 µH @ 100 kHz | 45A | 1.16mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF39XV-190-S1R9A009JHCMC 2MH 19A HRZ |
2,354 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 19A | 3.69mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-400-S2R2B003JHCMC 0.22MH 40A HRZ |
2,075 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 40A | 0.4mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-210-S2R0A008JHCMC 1.6MH 21A HRZ |
3,550 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 21A | 3mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
RV8540-50-S02RV COMMON MODE CHOKE, MNZN, FOUR |
4,229 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 120 µH @ 100 kHz | 50A | 1mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF27-10-1300CMC 13MH 10A 2LN TH |
3,053 | 20.71 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 100 kHz | 10A | 15mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RV8140-32-S03RV COMMON MODE CHOKE, MNZN, FOUR |
2,512 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 480 µH @ 100 kHz | 32A | 2.7mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL030392V28V0ECMC 3.9MH 30A 2LN TH |
2,684 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 100 kHz | 30A | 3.6mOhm | 600V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
LDFL036262V28V0ECMC 2.6MH 36A 2LN TH |
2,945 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 36A | 2.5mOhm | 600V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
DLFL-0147-25D2CMC 25A 2LN TH |
2,522 | 28.94 |
|
Datasheet |
Radial | - | 2 | - | - | 25A | 10mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
LDFW030392Y28V0ECMC 3.9MH 30A 2LN TH |
2,608 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 100 kHz | 30A | 3.6mOhm | 600V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
RV8140-40-S03RV COMMON MODE CHOKE, MNZN, FOUR |
2,051 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 310 µH @ 100 kHz | 40A | 1.5mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFW036262Y28V0ECMC 2.6MH 36A 2LN TH |
4,831 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 36A | 2.5mOhm | 600V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
SCF47X-250-S1R9B010JVIND CMC 2.65MH 25A 2.91MOHM |
4,861 | 0.00 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2.65 mH @ 100 kHz | 25A | 2.91mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-200-S1R8B011JVIND CMC 3.21MH 20A 3.52MOHM |
1,191 | 0.00 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 3.21 mH @ 100 kHz | 20A | 3.52mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
