Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
C20530A-233CMC 23.5mH 36mOhm 5.5 Amp Max. |
1,548 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 23.5 mH @ 10 kHz | 5.5A | 36mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-453CMC 45mH 85mOhm 3.6 Amp Max. |
3,001 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 10 kHz | 3.6A | 85mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-653CMC 65mH 138mOhm 2.8 Amp Max. |
1,360 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 mH @ 10 kHz | 2.8A | 138mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

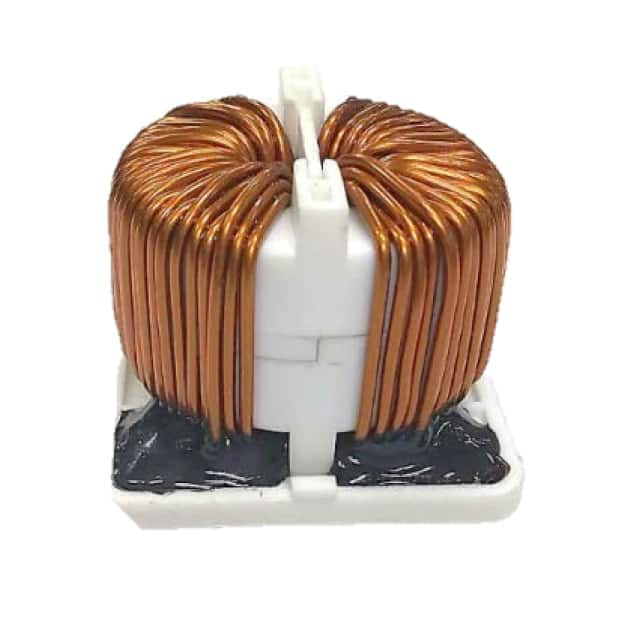

C301369A-752NU7.5mH, 30%, 32.5mOhm, 7.0A Max. |
2,997 | 18.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 7A | 32.5mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-103NU10.0mH, 30%, 44.0mOhm, 6.0A Max |
2,803 | 18.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 6A | 44mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-532NU5.3mH, 30%, 27.0mOhm, 7.6A Max. |
4,025 | 18.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 1 kHz | 7.6A | 27mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
C20200-187,300uH, 32mOhm, 9.3Amp Max. |
2,206 | 17.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-202,400uH, 8mOhm, 17Amp Max. |
1,207 | 17.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-211,000uH, 7mOhm, 20Amp Max. |
2,417 | 17.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-23600uH, 3.6mOhm 25Amp Max. |
3,466 | 17.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 600 µH @ 1 kHz | 25A | 3.6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-243.0mH, 13.0A Rated. |
1,078 | 18.25 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 3 mH @ 1 kHz | 13A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C301306-672NHF6.7mH, 35mOhm, 7.5A Rated. |
1,993 | 20.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 10 kHz | 7.5A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-202NHF2.0mH, 30%, 8.0mOhm, 16A Rated. |
1,732 | 20.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 16A | 8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-172NHF1.7mH, 30%, 6.5mOhm, 18A Rated |
1,682 | 20.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 18A | 6.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ACM2012-201-2P-T002CMC 350MA 2LN 200 OHM SMD |
4,938 | 0.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
IP3319CX6,135CMC 2LN SMD ESD |
3,834 | 0.51 |
|
Datasheet |
6-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ1210AH301CPTA0GCMC 100MA 2LN 300 OHM SMD |
3,265 | 0.47 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SRF2012A-801YCMC 300MA 2LN 800OHM SMD AECQ200 |
3,821 | 0.47 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 800 Ohms @ 100 MHz | - | 300mA | 880mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACP3225-501-2P-T000CMC 2A 2LN 500 OHM SMD |
4,312 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 2A | 40mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520V-901-2P-T00CMC 1.2A 2LN 900OHM SMD AEC-Q200 |
1,099 | 1.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 1.2A | 60mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
