Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C201370A-222NHF2.2mH, 30%, 20.0mOhm, 6.0A Max. |
2,144 | 11.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201370A-502NHF5.0mH, 30%, 63.5mOhm, 3.3A Max. |
1,205 | 11.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 3.3A | 63.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201370A-332NHF3.3mH, 30%, 35.0mOhm, 4.5A Max. |
2,592 | 11.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4.5A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201370A-152NHF1.5mH, 30%, 15.0mOhm, 6.8A Max. |
4,347 | 11.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 6.8A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201370A-102NHF1.0mH, 30%, 10.5mOhm, 8.2A Max. |
4,958 | 11.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 8.2A | 10.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

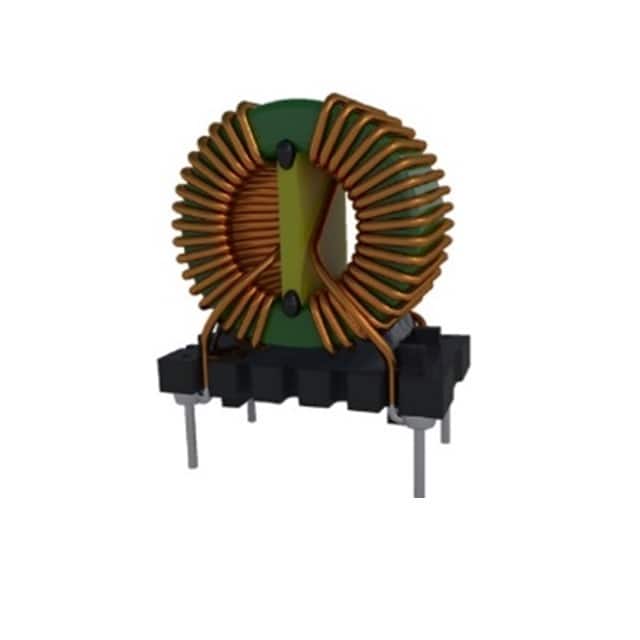

C201368A-502NHF5.0mH, 30%, 54.0mOhm, 4.4A Max |
2,751 | 11.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4.4A | 54mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201368A-152NHF1.5mH, 30%, 12.0mOhm, 9.5A Max. |
1,883 | 11.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 9.5A | 12mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201368A-222NHF2.2mH, 30%, 18.0mOhm, 7.5A Max. |
4,160 | 11.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 7.5A | 18mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201368A-332NHF3.3mH, 30%, 29.0mOhm, 6.0A Max. |
2,154 | 11.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 29mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201368A-102NHF1.0mH, 30%, 8.5mOhm, 11.0A Max. |
1,289 | 11.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 11A | 8.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
C201367A-502NHF5.0mH, 30%, 45.0mOhm, 5.0A Max. |
2,986 | 12.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 5A | 45mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201367A-222NHF2.2mH, 30%, 14.0mOhm, 9.0A Max. |
2,061 | 12.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 9A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201367A-102NHF1.0mH, 8.0mOhm, 12.0A DIP CMC |
4,347 | 12.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 12A | 8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201367A-152NHF1.5mH, 30%, 11.0mOhm, 10.0A Max. |
2,552 | 12.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 10A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201367A-332NHF3.3mH, 30%, 25.0mOhm, 6.8A Max. |
2,718 | 12.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6.8A | 25mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
TSD-4091CMC 1.5A 2LN TH |
4,396 | 0.00 |
|
Datasheet |
- | - | 2 | - | - | 1.5A | 270mOhm | - | 1500V (1.5kV) | 130°C | - | - | - | - | - |
|
|
C20530A-452CMC 4.5mH 5.6 mOhm 17 Amp Max. |
4,534 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 17A | 5.6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-702CMC 7mH 6.9mOhm 15.5Amp Max. |
3,966 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 15.5A | 6.9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-143CMC 14.0mH 19.5mOhm 8.5Amp Max. |
1,229 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 10 kHz | 8.5A | 19.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-902CMC 9 mH 7.8mOhm 14.5 Amp Max. |
1,247 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 14.5A | 7.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
