Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

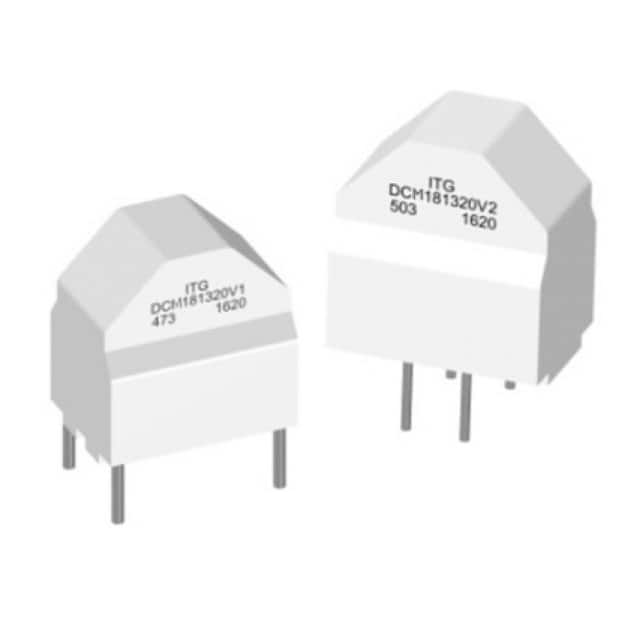

DCM181320V1-682NHF6800uH, 280 mOhm DCR, DIP CMC |
2,153 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-273NHF27000uH, 1200 mOhm DCR, DIP CMC |
2,664 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.2Ohm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-222NHF2200uH, 90 mOhm DCR, DIP CMC |
1,863 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-332NHF3300uH, 140 mOhm DCR, DIP CMC |
4,325 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-701NHF700uH, 27 mOhm DCR, DIP CMC |
3,034 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 5A | 27mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-393NHF39000uH, 1700 mOhm DCR, DIP CMC |
1,197 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 300mA | 1.7Ohm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-102NHF1000uH, 55 mOhm DCR, DIP CMC |
3,884 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2.5A | 55mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-153NHF15000uH, 780 mOhm DCR, DIP CMC |
2,831 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 780mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181320V1-103NHF10000uH, 500 mOhm DCR, DIP CMC |
1,501 | 3.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 500mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|

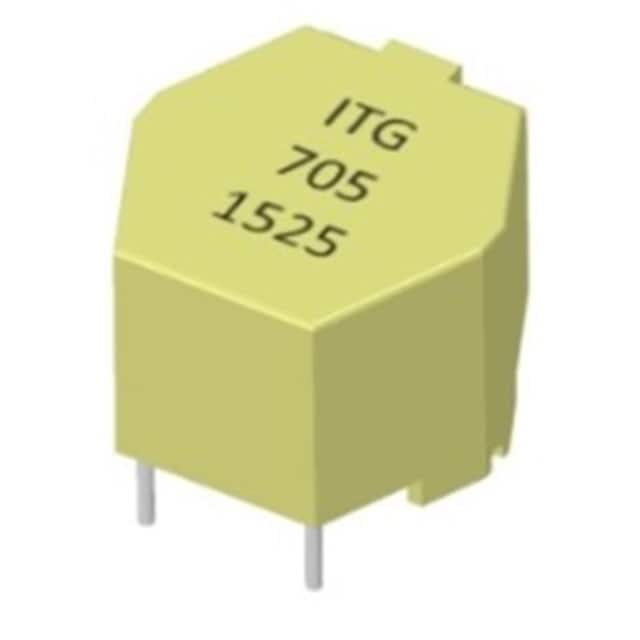

DCM181713H-393NHF39,000uH,1700mOhm,0.3Amp Max. DI |
4,520 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 300mA | 1.7Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-332NHF3,300uH, 140mOhm, 1.5Amp DIP CMC |
2,139 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 140mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-153NHF15,000uH,780mOhm,0.5Amp DIP CMC |
4,133 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 780mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-273NHF27,000uH,1200mOhm,0.4Amp DIP CMC |
1,250 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.2Ohm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-103NHF10,000uH,500mOhm,0.7Amp DIP CMC |
4,849 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 500mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-682NHF6,800uH, 280mOhm, 1.2Amp DIP CMC |
3,498 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
DCM232315H-203NHF20,000uH,520mOhm, 0.7Amp DIP CMC |
4,196 | 5.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 700mA | 520mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM232315H-332NHF3,300uH, 120mOhm, 2Amp DIP CMC |
3,410 | 5.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 120mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM232315H-103NHF10,000uH,260mOhm, 1.5Amp DIP CMC |
3,461 | 5.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 260mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM232315H-222NHF2,200uH, 65mOhm, 3Amp DIP CMC |
2,011 | 5.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 3A | 65mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PMCU-4100CMC 450MA 2LN TH |
1,845 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 10 mH @ 1 kHz | 450mA | 1.4Ohm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
