Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGDU3-00015-PCOMMON MODE CHOKE |
4,850 | 1.08 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM2545X171R-00CMC 10A 2LN 170 OHM SMD |
2,489 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 3mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

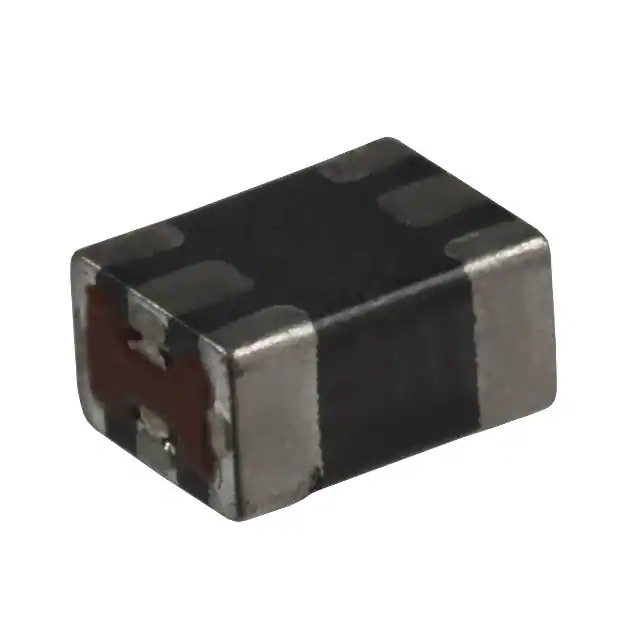

ACM4532-601-2P-T001CMC 1.5A 2LN 600 OHM SMD |
4,893 | 0.00 |
|
Datasheet |
1812 (4532 Metric), 6 Lead | Power Line | 2 | 600 Ohms @ 100 MHz | - | 1.5A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM4532-801-2P-T001CMC 1A 2LN 800 OHM SMD |
4,000 | 0.00 |
|
Datasheet |
1812 (4532 Metric), 6 Lead | Power Line | 2 | 800 Ohms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM4532-102-3P-T001CMC 200MA 3LN 1K OHM SMD |
4,322 | 0.00 |
|
Datasheet |
1812 (4532 Metric), 6 Lead | Signal Line | 3 | 1 kOhms @ 100 MHz | - | 200mA | 600mOhm | 20V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
MGDU3-00009-PCOMMON MODE CHOKE |
4,609 | 1.08 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALFT-03A-1CMC 105MH 200MA 2LN TH |
1,079 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 105 mH @ 1 kHz | 200mA | 10Ohm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-2CMC 45MH 300MA 2LN TH |
2,570 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 1 kHz | 300mA | 2.5Ohm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-3CMC 26MH 400MA 2LN TH |
4,614 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 26 mH @ 1 kHz | 400mA | 1.5Ohm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-5CMC 12MH 600MA 2LN TH |
2,360 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 600mA | 1Ohm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-9CMC 4.3MH 1.1A 2LN TH |
4,957 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.3 mH @ 1 kHz | 1.1A | 700mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-10CMC 2.7MH 1.3A 2LN TH |
4,704 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 1 kHz | 1.3A | 680mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-11CMC 2.1MH 1.5A 2LN TH |
3,653 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 mH @ 1 kHz | 1.5A | 600mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-12CMC 1.7MH 1.7A 2LN TH |
3,153 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 1.7A | 600mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-03A-14CMC 600UH 3A 2LN TH |
3,808 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 1 kHz | 3A | 380mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ACMP-Q9050-272-TCMC 3.5A 2LN 2.7KOHM SMD AECQ200 |
4,579 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.7 kOhms @ 100 MHz | - | 3.5A | 32mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACMP-Q9050-152-TCMC 4.5A 2LN 1.5KOHM SMD AECQ200 |
2,473 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 100 MHz | - | 4.5A | 15mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACMP-Q9050-701-TCMC 6A 2LN 700 OHM SMD AEC-Q200 |
1,627 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 6A | 9mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACMP-Q9050-222-TCMC 4A 2LN 2.2K OHM SMD AEC-Q200 |
3,716 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 4A | 25mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ALFT-09V-501CMC 1.4A 2LN TH |
4,701 | 1.10 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | - | 1.4A | 200mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
