Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OWISFT0905-501CMC 500UH@100KHZ, 2LN 3.0K OHM@5 |
2,159 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 5 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
OWICM0905T-5R0CMC 5.0UH@100KHZ 5.0A 2LN 500 OH |
1,658 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | 5 µH @ 100 kHz | 5A | 7.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM3440Z171R-00CMC 20A 2LN 170 OHM SMD |
4,814 | 0.00 |
|
Datasheet |
Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CC2824E113R-00CMC 11UH 800MA 2LN 800 OHM SMD |
2,097 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 800 Ohms @ 200 MHz | 11 µH @ 100 kHz | 800mA | 156mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
MGDH2-00005-PCOMMON MODE CHOKE |
3,041 | 1.25 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

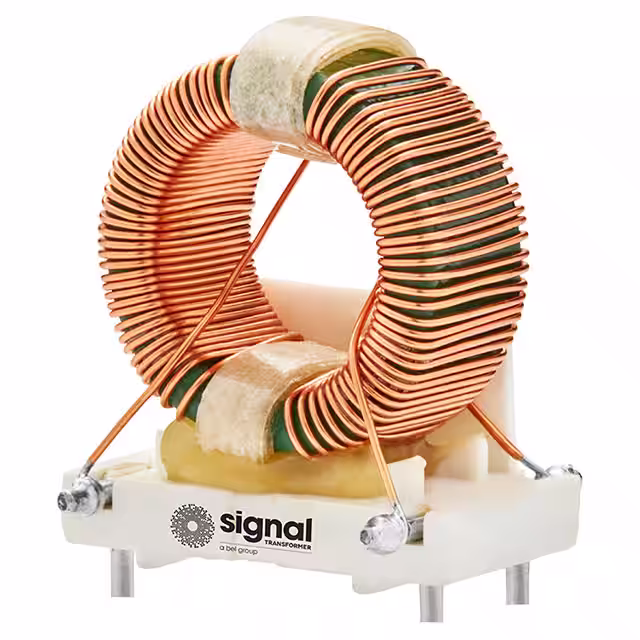

HCTC-4-1.7CMC 4MH 1.7A 2LN TH |
3,917 | 3.85 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 1.7A | 173mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
S555-5999-02-FCMC SMD |
1,461 | 0.00 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H6030NLCMC 4LN SMD |
2,554 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 200mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
CM2722R201R-00CMC 5A 4LN 200 OHM SMD |
3,390 | 0.00 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ZJYS51R5-2PT-01CMC 2A 2LN 200 OHM SMD |
4,286 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
CC2824E474R-00CMC 470UH 700MA 2LN 8.6KOHM SMD |
2,261 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 8.6 kOhms @ 5 MHz | 470 µH @ 100 kHz | 700mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CC2824D225R-00CMC 2.2MH 500MA 2LN 5.3KOHM SMD |
1,448 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 5.3 kOhms @ 5 MHz | 2.2 mH @ 10 kHz | 500mA | 520mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CC2824B475R-00CMC 4.7MH 400MA 2LN 12.3KOHM SMD |
3,457 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 12.3 kOhms @ 2 MHz | 4.7 mH @ 10 kHz | 400mA | 1.3Ohm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMLA0907-701-RCMC 5A 2LN 700 OHM SMD AEC-Q200 |
1,863 | 0.59 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 100V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EMIF02-01OABRYCMC 2LN ESD AEC-Q101 |
3,940 | 0.00 |
|
Datasheet |
6-VDFN | - | 2 | - | - | - | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

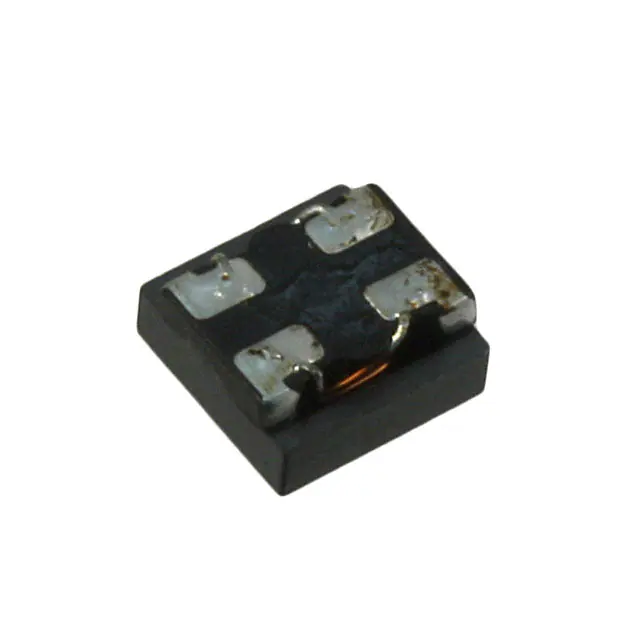

DLW5BTN142SQ2LCHOKE COMMON MODE 1400 OHM 2020 |
4,332 | 0.00 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm (Typ) | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW5BTN102SQ2LCHOKE COMMON MODE 1000 OHM 2020 |
4,841 | 0.00 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm (Typ) | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTN101SQ2LCMC 6A 2LN 100 OHM SMD |
2,210 | 0.00 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 6A | 9mOhm (Typ) | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTN251SQ2LCMC 5A 2LN 250 OHM SMD |
3,525 | 0.00 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm (Typ) | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTN501SQ2LCMC 4A 2LN 500 OHM SMD |
1,998 | 0.00 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 19mOhm (Typ) | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
