Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ICM2020ER701RACM CHOKE 3.8A700 OHM AECQ |
2,621 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 3.8A | 13mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ICM2020ER102RACM CHOKE 3A 1K OHM AECQ |
1,993 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 3A | 20mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ICM2020ER142RACM CHOKE 2.8A 1.4K OHM AECQ |
1,104 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 2.8A | 38mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ICM2020ER101RACM CHOKE 8.5A100 OHM AECQ |
2,541 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 8.5A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
MGDU3-00011-PCOMMON MODE CHOKE |
4,394 | 1.16 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPDL764WM-40-2P-T3CMC 15A 2LN 40 OHM SMD |
1,347 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 40 Ohms @ 100 MHz | - | 15A | 5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-2000-2P-TCMC 1A 2LN 2K OHM SMD |
4,555 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 100 MHz | - | 1A | 63Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-400-2P-TCMC 5A 2LN 400 OHM SMD |
1,733 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 400 Ohms @ 100 MHz | - | 5A | 10Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-910-2P-TCMC 2.5A 2LN 910 OHM SMD |
2,001 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 910 Ohms @ 100 MHz | - | 2.5A | 21Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-800-2P-TCMC 3A 2LN 800 OHM SMD |
3,804 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | - | 3A | 17Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-1700-2P-TCMC 1.2A 2LN 1.7K OHM SMD |
4,020 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.7 kOhms @ 100 MHz | - | 1.2A | 50Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-100-2P-TCMC 9A 2LN 100 OHM SMD |
3,688 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 100 Ohms @ 100 MHz | - | 9A | 10Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-2500-2P-TCMC 900MA 2LN 2.5K OHM SMD |
1,381 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.5 kOhms @ 100 MHz | - | 900mA | 75Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL764WM-40-2P-T2 LINE SMD COMMON MODE CHOKE 40 |
2,841 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 40 Ohms @ 100 MHz | - | 15A | 5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82721J2122N020CMC 6.8MH 1.2A 2LN TH |
1,060 | 1.44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721J2152N001CMC 3.3MH 1.5A 2LN TH |
3,781 | 1.44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 180mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721J2301N020CMC 47MH 300MA 2LN TH |
2,726 | 1.44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721J2401N021CMC 27MH 400MA 2LN TH |
1,285 | 1.44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721J2701N020CMC 10MH 700MA 2LN TH |
1,247 | 1.44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

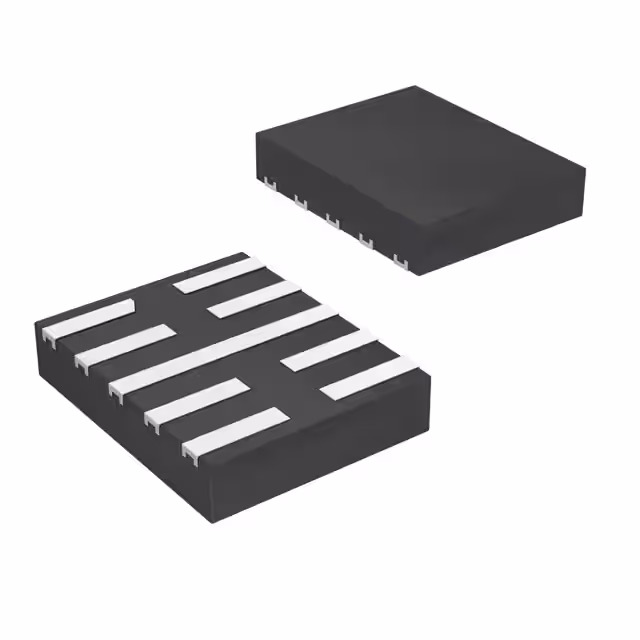

PCMF2DFN1XLCMC 4LN SMD ESD |
1,380 | 0.00 |
|
Datasheet |
9-XFDFN | Signal Line | 4 | - | - | - | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
