Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCFE201204A101TGCMC 100MA 4LN 100 OHM SMD ESD |
2,733 | 0.96 |
|
Datasheet |
0805 (2012 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM2520-301-2P-T002CMC 400MA 2LN 300 OHM SMD |
5,045 | 0.92 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 400mA | 350mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM2520-102-2P-T002CMC 200MA 2LN 1K OHM SMD |
16,646 | 0.92 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 200mA | 900mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF2USB3SZCMC 4LN SMD ESD |
13,930 | 0.75 |
|
Datasheet |
10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ACM2520-451-2P-T002CMC 350MA 2LN 450 OHM SMD |
12,519 | 0.92 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 450 Ohms @ 100 MHz | - | 350mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CM2021Y330R-10CMC 15A 2LN 33 OHM SMD |
25,792 | 1.00 |
|
Datasheet |
2322 (5956 Metric), 4 Lead | Power Line | 2 | 33 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 280V | - | -40°C ~ 125°C | - | - | - | - | - |
|
50475CCMC 4.7MH 400MA 2LN SMD |
7,155 | 2.22 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | - | 4.7 mH @ 100 kHz | 400mA | 700mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50105CCMC 1MH 700MA 2LN SMD |
6,446 | 2.22 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | - | 1 mH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50474CCMC 470UH 700MA 2LN SMD |
3,874 | 2.22 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | - | 470 µH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50225CCMC 2.2MH 500MA 2LN SMD |
2,703 | 2.22 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | - | 2.2 mH @ 100 kHz | 500mA | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PE-1812ACC101STSCMC 200MA 2LN 7.5KOHM SMD |
36,407 | 0.96 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 7.5 kOhms @ 10 MHz | - | 200mA | 2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1812ACC510STSCMC 230MA 2LN 3.5KOHM SMD |
12,343 | 0.96 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | - | 230mA | 1Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

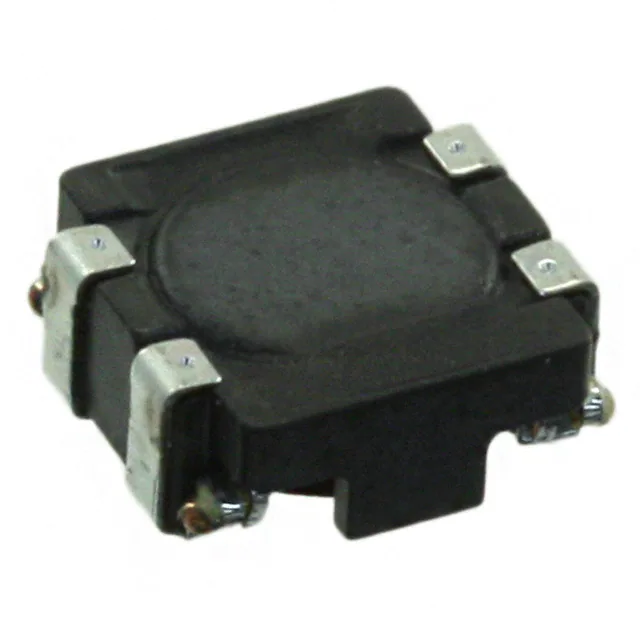

ACM4520-421-2P-T000CMC 2.8A 2LN 420 OHM SMD |
8,935 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 420 Ohms @ 100 MHz | - | 2.8A | 55mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

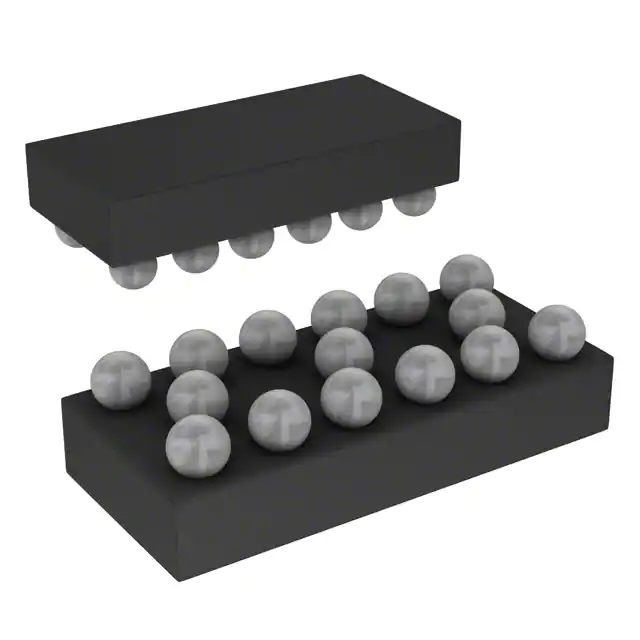

PCMF3USB3SZCMC 6LN SMD ESD |
21,969 | 0.97 |
|
Datasheet |
15-UFBGA, WLCSP | Signal Line | 6 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACP3225-102-2P-T000CMC 1.5A 2LN 1K OHM SMD |
216,894 | 1.10 |
|
Datasheet |
1210 (3225 Metric), 4 Leads | Power Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 50mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
PE-1210CCMC601STSCMC 1A 2LN 600 OHM SMD |
39,331 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 120mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

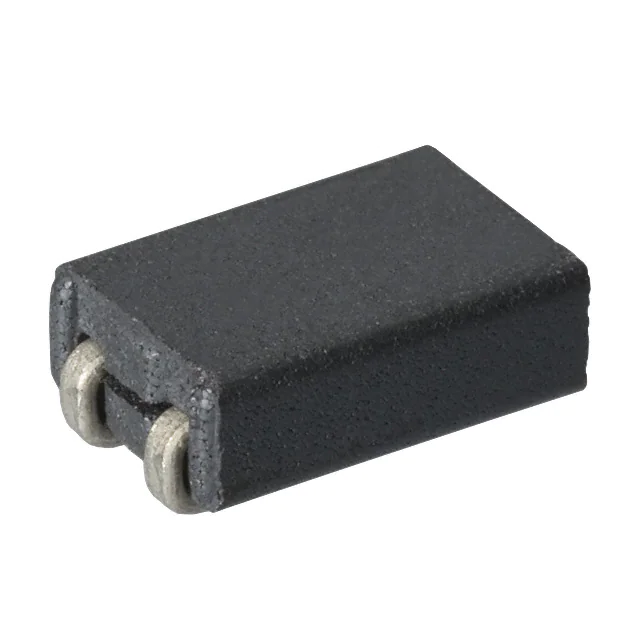

CM3421Y600R-10CMC 15A 2LN 60 OHM SMD |
158,170 | 0.96 |
|
Datasheet |
3822 (8531 Metric), 4 Lead | Power Line | 2 | 60 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 140V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACT32P-102-2P-TL01CMC 800MA 2LN 1KOHM SMD AEC-Q200 |
6,307 | 1.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 800mA | 150mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

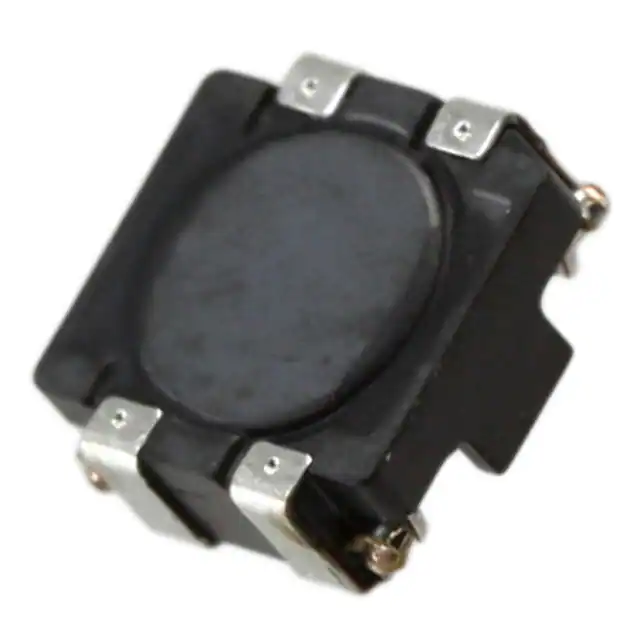

ACM4520-901-2P-T000CMC 2.3A 2LN 900 OHM SMD |
29,751 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 2.3A | 60mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM2012-361-2P-T001CMC 220MA 2LN 360 OHM SMD |
26,688 | 1.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 220mA | 500mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
