Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

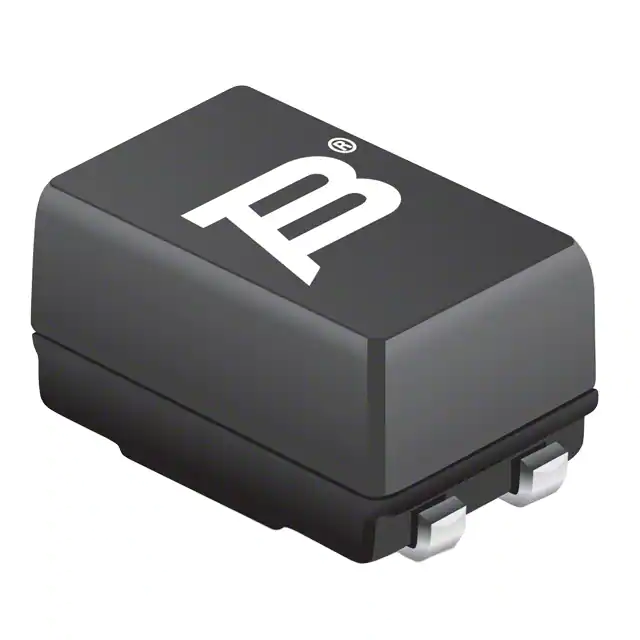

SRF0905-501YCMC 500UH 1A 2LN 1KOHM SMD |
2,079 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 1 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-471YCMC 470UH 1.1A 2LN 1KOHM SMD |
1,368 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 2 MHz | 470 µH @ 100 kHz | 1.1A | 140mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0905-100YCMC 10UH 1.6A 2LN 200 OHM SMD |
1,112 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 20 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|

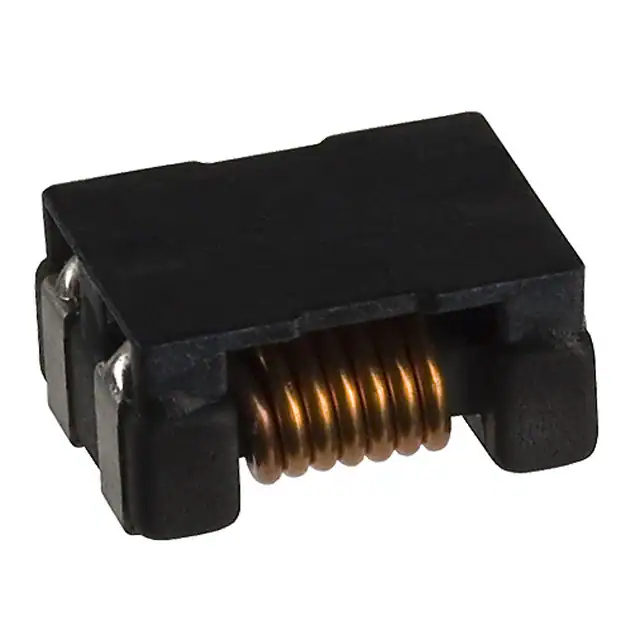

ACM9070-701-2PL-TL01CMC 5A 2LN 700 OHM SMD |
44,369 | 1.88 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|

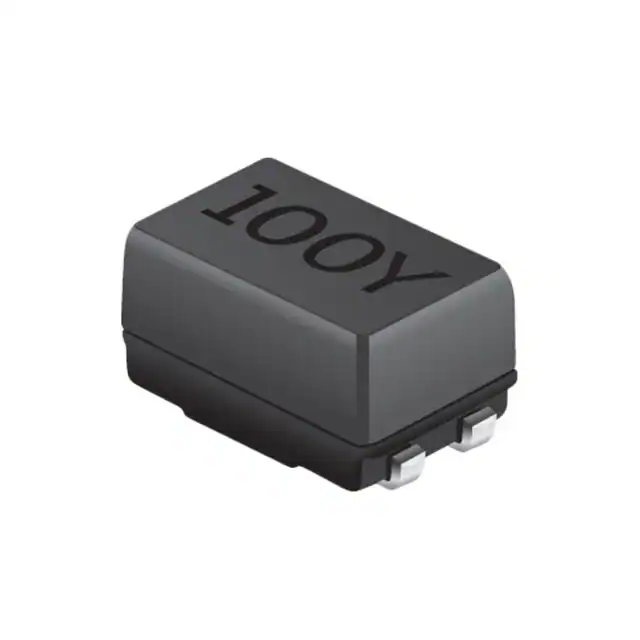

SRF0905A-501YCMC 500UH 1A 2LN SMD AEC-Q200 |
2,616 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 1 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905A-652YCMC 6.5MH 300MA 2LN SMD AEC-Q200 |
1,971 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 300 kHz | 6.5 mH @ 100 kHz | 300mA | 1.05Ohm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
B82793C0225N265CMC 2.2MH 500MA 2LN SMD AEC-Q200 |
4,848 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 500mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

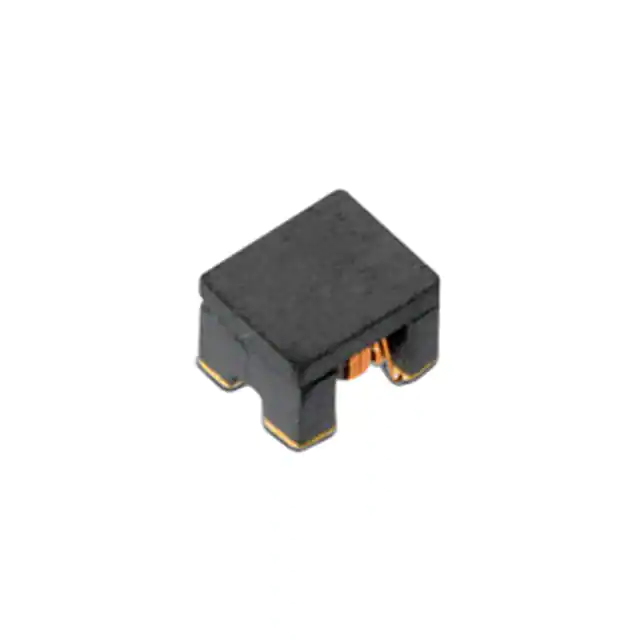

744235251CMC 250UH 200MA 2LN 10KOHM SMD |
1,659 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 10 kOhms @ 10 MHz | 250 µH @ 10 kHz | 200mA | 1.6Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM2012-222-2P-T001CMC 150MA 2LN 2.2KOHM SMD |
1,546 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 150mA | 2.5Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF0905A-250YCMC 25UH 1A 2LN SMD AEC-Q200 |
1,282 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 20 MHz | 25 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905A-202YCMC 2MH 600MA 2LN SMD AEC-Q200 |
546 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 1 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|

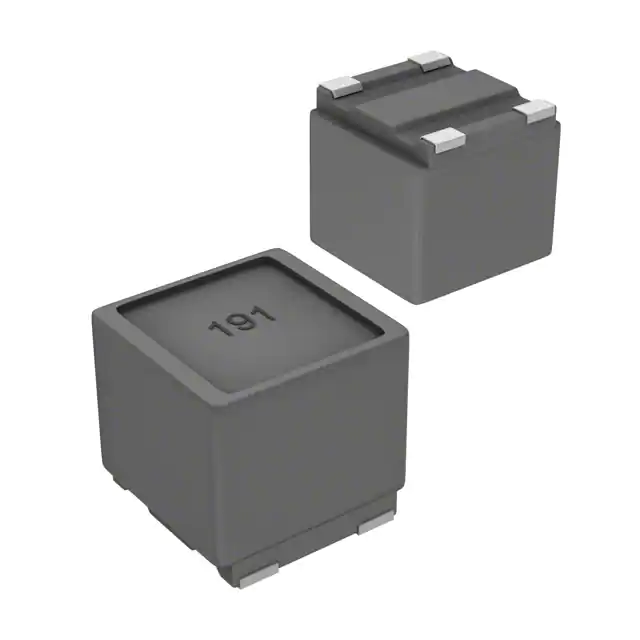

SRF0504-351YCMC 1.1UH 2A 2LN 350 OHM SMD |
20,163 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 350 Ohms @ 100 MHz | 1.1 µH @ 100 kHz | 2A | 40mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504-152YCMC 3.6UH 1A 2LN 1.5KOHM SMD |
10,743 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 100 MHz | 3.6 µH @ 100 kHz | 1A | 100mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504-102YCMC 2.7UH 1.5A 2LN 1KOHM SMD |
21,803 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | 2.7 µH @ 100 kHz | 1.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504-191YCMC 600NH 5A 2LN 190 OHM SMD |
635 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 190 Ohms @ 100 MHz | 600 nH @ 100 kHz | 5A | 20mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACT1210-220-2P-TL00CMC 22UH 250MA 2LN 1.1KOHM SMD |
61,452 | 2.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

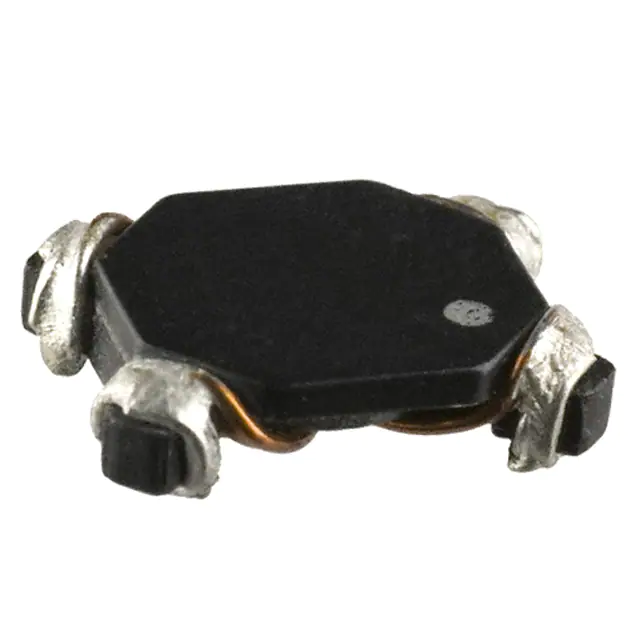

CMS1-6-RCMC 32.8UH 3.1A 2LN SMD |
45,868 | 2.37 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 32.8 µH @ 100 kHz | 3.1A | 13.8mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

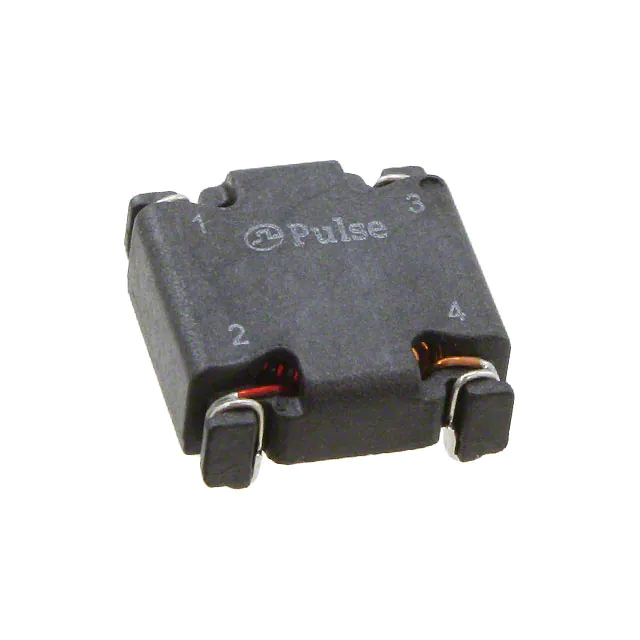

PA2746NLCMC 6A 2LN SMD |
11,692 | 2.33 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 6A | 4.3mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|

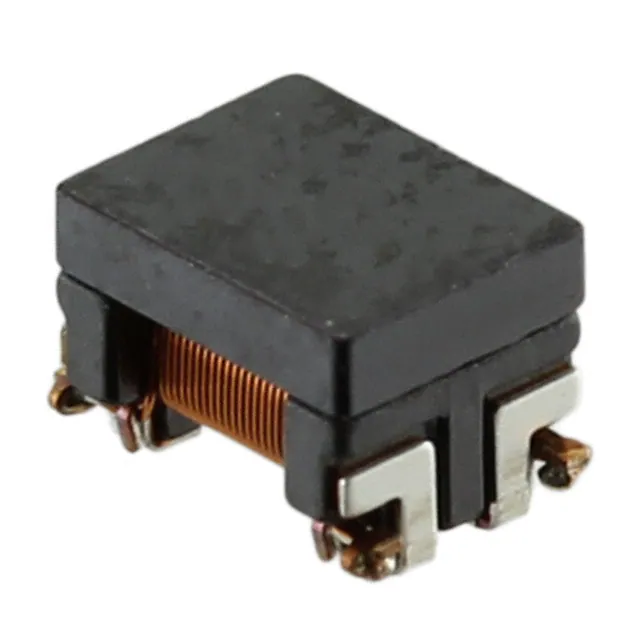

ACT1210-510-2P-TL00CMC 51UH 200MA 2LN 2.6KOHM SMD |
19,108 | 2.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|

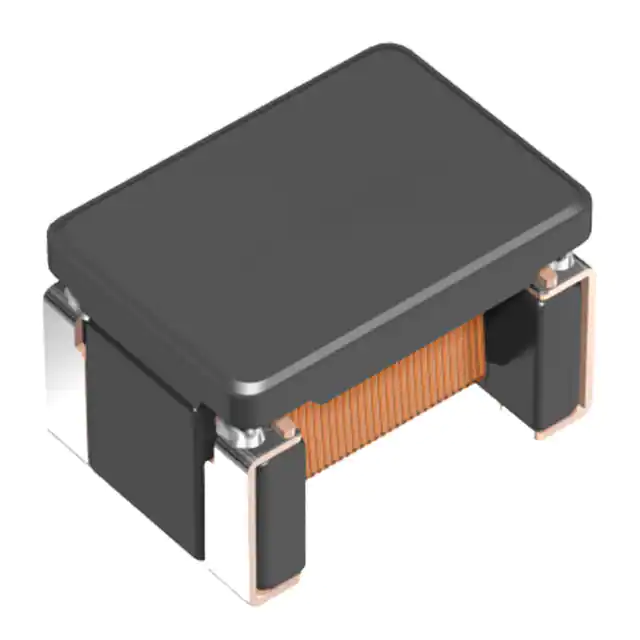

ACT45B-110-2P-TL003CMC 11UH 250MA 2LN 600OHM SMD |
40,499 | 2.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
