Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
744232222CMC 200MA 2LN 2.2KOHM SMD |
6,941 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744230251CMC 350MA 2LN 250OHM SMD AECQ200 |
5,465 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 250 Ohms @ 100 MHz | - | 350mA | 280mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

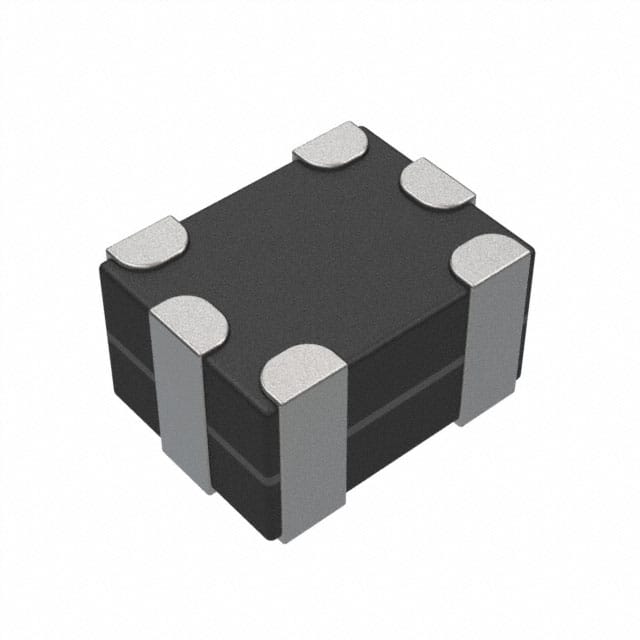

LCFE080602A900TGCMC 100MA 2LN 90 OHM SMD ESD |
5,085 | 1.53 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
744232090CMC 370MA 2LN 90OHM SMD AEC-Q200 |
3,449 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

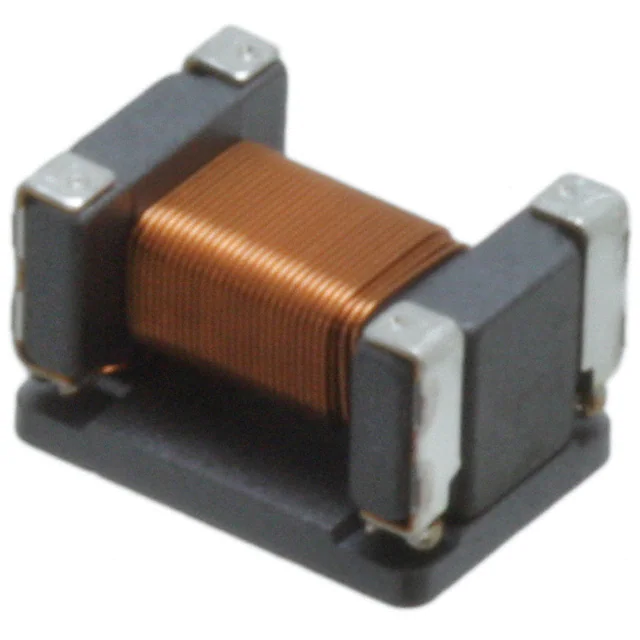

B82787C0513H002CMC 51UH 200MA 2LN 2.8KOHM SMD |
13,526 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|
ACM7060-301-2PL-TL01CMC 5A 2LN 300 OHM SMD |
10,582 | 1.84 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM2012-900-2P-T001CMC 400MA 2LN 90OHM SMD AEC-Q200 |
20,872 | 1.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 190mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

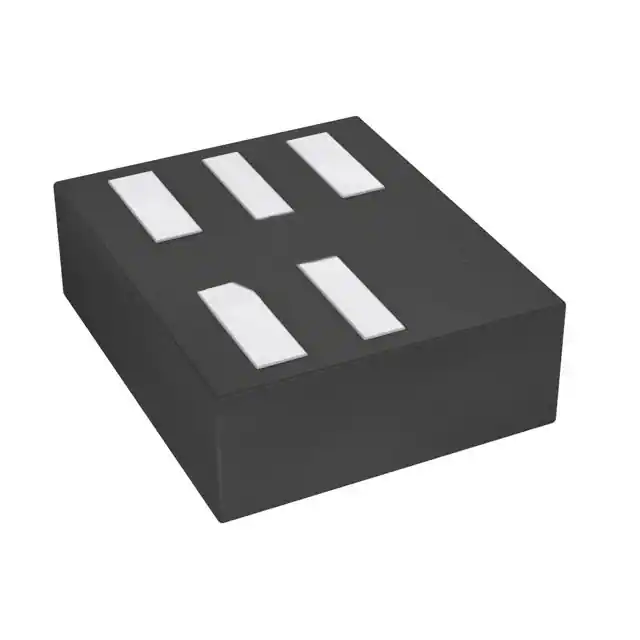

ECLAMP8052P.TCTCMC 2LN SMD ESD AEC-Q100 |
13,320 | 0.82 |
|
Datasheet |
5-UFDFN | - | 2 | - | - | - | 1.8Ohm | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ACM7060-701-2PL-TL01CMC 4A 2LN 700 OHM SMD |
42,303 | 1.84 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CPFC74NP-PS02H2A20CMC 2A 2LN 200 OHM SMD |
59,242 | 1.59 |
|
Datasheet |
Vertical, 4 Gull Wing | Power Line | 2 | 200 Ohms @ 20 MHz | - | 2A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
SRF0905-102YCMC 1MH 800MA 2LN 1.5KOHM SMD |
54,605 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 1 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|

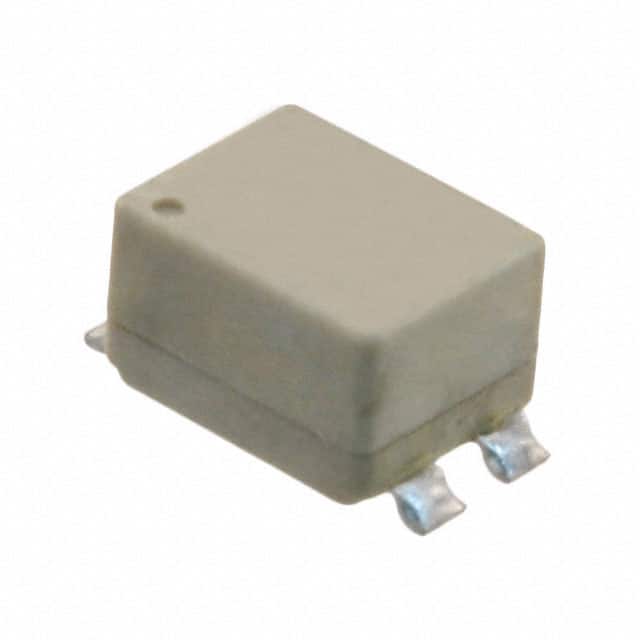

CPFC74NP-PS10H2A15CMC 1.5A 2LN 700 OHM SMD |
36,523 | 1.59 |
|
Datasheet |
Vertical, 4 Gull Wing | Power Line | 2 | 700 Ohms @ 100 MHz | - | 1.5A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
SRF0905-472YCMC 4.7MH 400MA 2LN 4KOHM SMD |
32,991 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 300 kHz | 4.7 mH @ 100 kHz | 400mA | 900mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-251YCMC 250UH 1.2A 2LN 600 OHM SMD |
24,128 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 3 MHz | 250 µH @ 100 kHz | 1.2A | 130mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-202YCMC 2MH 600MA 2LN 3KOHM SMD |
14,648 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 1 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-250YCMC 25UH 1A 2LN 600 OHM SMD |
11,646 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 20 MHz | 25 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|

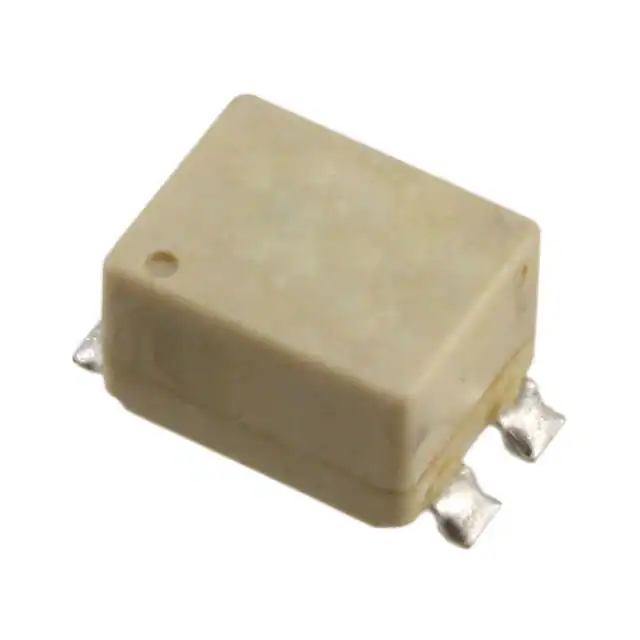

CPFC74NP-PS03H2A25CMC 2.5A 2LN 300 OHM SMD |
11,555 | 1.59 |
|
Datasheet |
Vertical, 4 Gull Wing | Power Line | 2 | 300 Ohms @ 160 MHz | - | 2.5A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
CPFC74NP-PS01H2A30CMC 3A 2LN SMD |
9,391 | 1.59 |
|
Datasheet |
Vertical, 4 Gull Wing | Power Line | 2 | - | - | 3A | 60mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
SRF0905-652YCMC 6.5MH 300MA 2LN 5KOHM SMD |
6,742 | 1.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 300 kHz | 6.5 mH @ 100 kHz | 300mA | 1.05Ohm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
.jpg)
|
744233121CMC 280MA 2LN 120OHM SMD AECQ200 |
3,418 | 1.46 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
