Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF1821VU-103Y1R0-01CMC 1A 2LN TH |
1,337 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF2514VU-102Y2R0-01CMC 2A 2LN TH |
1,060 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF1815HU-302Y2R0-01CMC 2A 2LN TH |
4,288 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CM6032V301R-00CMC 8A 8LN 300 OHM SMD |
1,260 | 0.00 |
|
Datasheet |
Vertical, 16 Flat Lead | Power, Signal Line | 8 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
7352-V-RCCMC 2MH 850MA 2LN TH |
4,439 | 2.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 850mA | 400mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7354-V-RCCMC 8MH 400MA 2LN TH |
1,413 | 2.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 400mA | 2Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

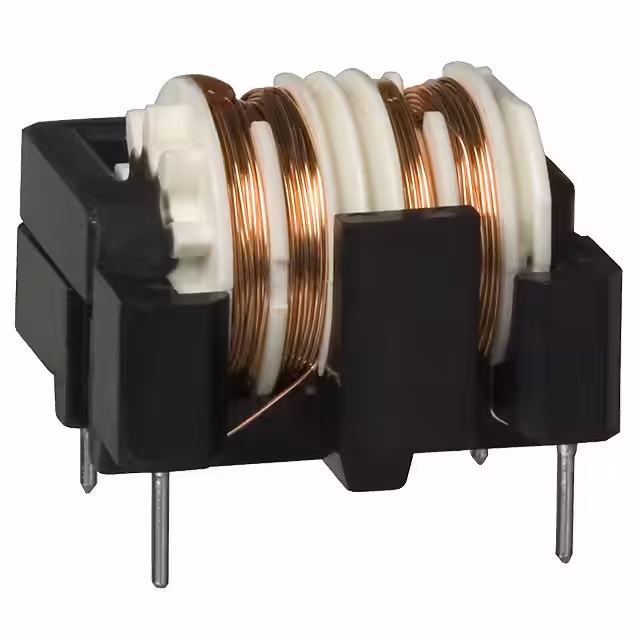

LF2115NP-222CMC 2.2MH 1.3A 2LN TH |
4,749 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.3A | 240mOhm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-392CMC 3.9MH 1A 2LN TH |
2,506 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 1A | 410mOhm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-103CMC 10MH 600MA 2LN TH |
1,286 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 600mA | 1Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-183CMC 18MH 500MA 2LN TH |
1,912 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 500mA | 1.63Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-223CMC 22MH 400MA 2LN TH |
4,701 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 400mA | 2.04Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-333CMC 33MH 300MA 2LN TH |
4,771 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 300mA | 3.42Ohm | - | - | - | - | - | - | - | - |
|

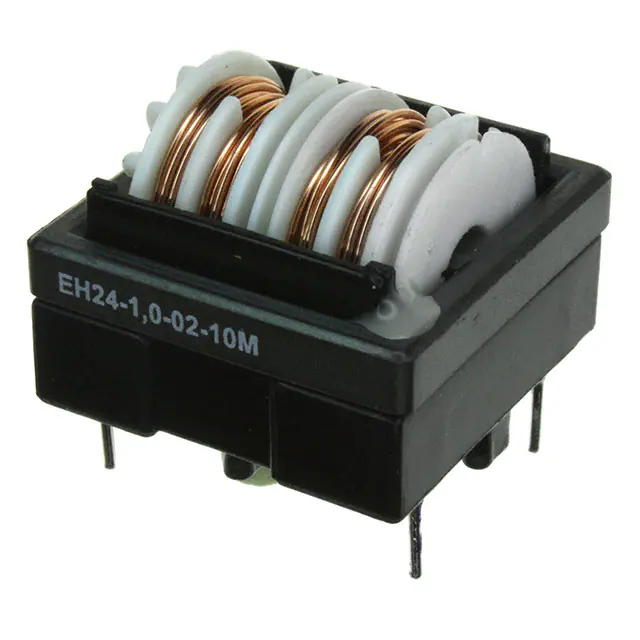

EH24-1.0-02-10MCMC 10MH 1A 2LN TH |
4,751 | 1.61 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 244mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

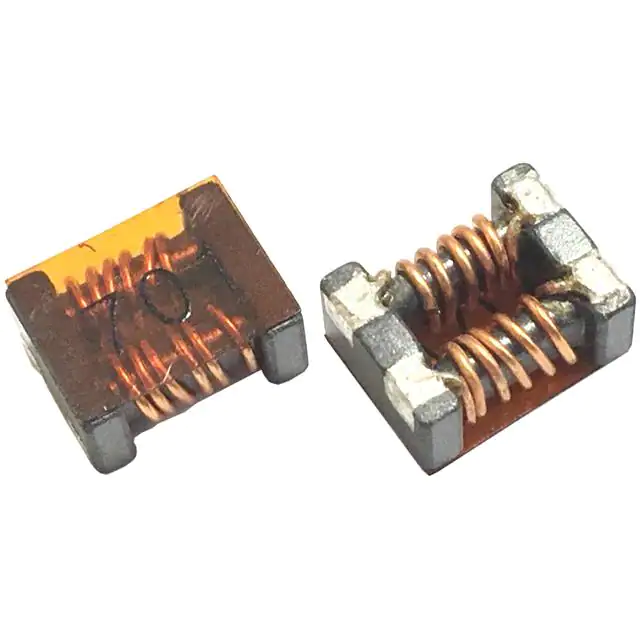

BPPM00151360551X00CMC 10A 2LN 550 OHM SMD |
4,442 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 3.8mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360701X00CMC 10A 2LN 700 OHM SMD |
2,958 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360152X00CMC 8.5A 2LN 1.5K OHM SMD |
4,466 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 8.5A | 9mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360301X00CMC 13A 2LN 300 OHM SMD |
4,456 | 1.82 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-0346N1RLCMC 35UH 2CH EXT TEMP 16P SMD |
3,883 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|

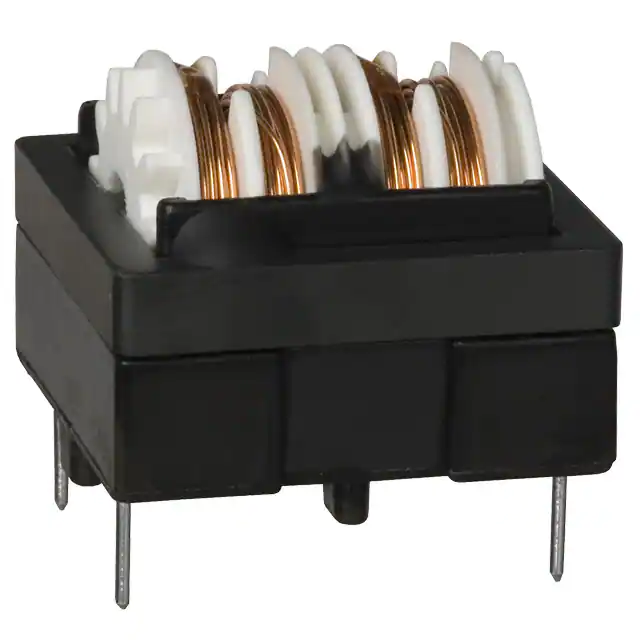

LF2420NP-252CMC 2.5MH 2A 2LN TH |
1,048 | 2.10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2A | 130mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-352CMC 3.5MH 1.7A 2LN TH |
4,592 | 2.10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1.7A | 180mOhm | - | - | - | - | - | - | - | - |
