Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NH-13140CMC 14MH 1.3A 2LN TH |
1,741 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 14 mH @ 10 kHz | 1.3A | 210mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-20064CMC 6.4MH 2A 2LN TH |
1,722 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M041350CMC 135MH 400MA 2LN TH |
2,387 | 3.14 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 135 mH @ 10 kHz | 400mA | 2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M15164CMC 16.4MH 1.5A 2LN TH |
1,772 | 3.14 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16.4 mH @ 10 kHz | 1.5A | 230mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M18125CMC 12.5MH 1.8A 2LN TH |
4,698 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 1.8A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
B82789S0223N001CHOKES |
1,177 | 0.00 |
|
Datasheet |
4-SMD, J-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82723J2501N001CMC 56MH 500MA 2LN TH |
2,788 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 2.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

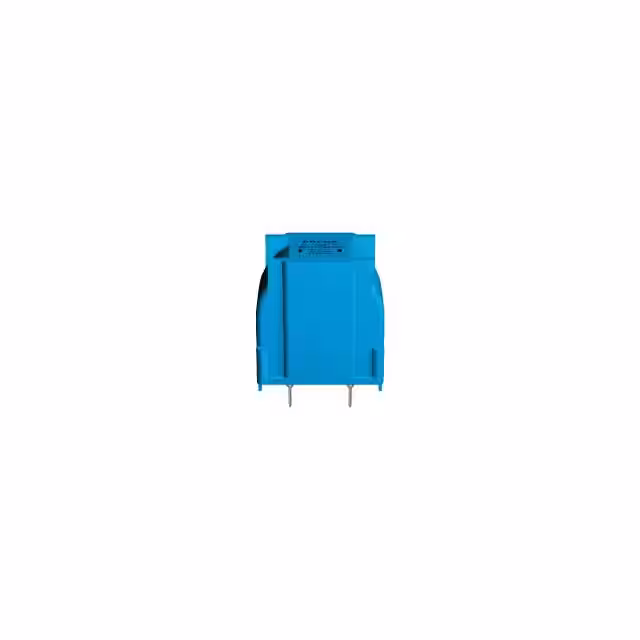

B82723J2102N002CMC 39MH 1A 2LN TH |
1,412 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82723J2602N001CMC 1MH 6A 2LN TH |
1,696 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82723J2601N001CMC 47MH 600MA 2LN TH |
3,246 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.65Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82723J2601N002CMC 39MH 600MA 2LN TH |
2,140 | 2.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 600mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
APPM00151365152XY0CMC 8.5A 2LN 1.5KOHM SMD AECQ200 |
3,963 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 50 MHz | - | 8.5A | 9mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365102XY0CMC 8.5A 2LN 1K OHM SMD AEC-Q200 |
4,397 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 8.5A | 9mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365301XY0CMC 13A 2LN 300 OHM SMD AEC-Q200 |
1,094 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 4.7mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365551XY0CMC 10A 2LN 550 OHM SMD AEC-Q200 |
3,281 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 3.8mOhm (Typ) | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365232XY0CMC 7A 2LN 2.3K OHM SMD AEC-Q200 |
4,123 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.3 kOhms @ 50 MHz | - | 7A | 11mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365322XY0CMC 6A 2LN 3.2K OHM SMD AEC-Q200 |
1,771 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 3.2 kOhms @ 40 MHz | - | 6A | 11.5mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00151365701XY0CMC 10A 2LN 700 OHM SMD AEC-Q200 |
3,486 | 1.77 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SN8D-400CMC 80UH 2A 2LN TH |
3,120 | 3.41 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | 2A | 72mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
570 16 100 30COMMON MODE CHOKE |
4,141 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
