Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BX8333NLCMC 16.5MH 2 LN |
4,522 | 1.51 |
|
Datasheet |
- | - | 2 | - | 16.5 mH @ 10 kHz | - | 1.65Ohm | - | - | - | - | - | - | - | - |
|
T8112NLCMC 1MH 700MA 2LN 900 OHM SMD |
1,580 | 1.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | 1 mH @ 100 kHz | 700mA | 300mOhm | 80V | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
T8113NLCMC 2.2MH 500MA 2LN 700 OHM SMD |
1,333 | 1.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | 2.2 mH @ 100 kHz | 500mA | 400mOhm | 80V | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
T8114NLCMC 400MA 2LN SMD |
4,925 | 1.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 400mA | 700mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
T8116NLCMC 470UH 700MA 2LN 800 OHM SMD |
3,629 | 1.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | 470 µH @ 100 kHz | 700mA | 300mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
7350-H-RCCMC 500UH 1.5A 2LN TH |
2,371 | 1.89 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | 500 µH @ 1 kHz | 1.5A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7354-H-RCCMC 8MH 400MA 2LN TH |
3,968 | 1.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 400mA | 2Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7355-H-RCCMC 10MH 350MA 2LN TH |
3,729 | 1.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 350mA | 2.2Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
750341634CMC 10MH 1A 2LN TH |
1,739 | 3.74 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 1A | 510mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NHS-041090CMC 109MH 400MA 2LN TH |
4,511 | 3.10 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 109 mH @ 10 kHz | 400mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-13110CMC 11MH 1.3A 2LN TH |
4,338 | 1.72 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.3A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
LG01-0346N1RLTRCMC 35UH 2CH EXT TEMP 16P SMD T/ |
3,157 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
SH-121CMC 3A 2LN TH |
1,773 | 1.68 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 0.35 µH @ 100 kHz | 3A | 11mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
APPM00121165801XY0CMC 8A 2LN 800 OHM SMD AEC-Q200 |
2,393 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 8A | 8mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00121165272XY0CMC 1.5A 2LN 2.7KOHM SMD AECQ200 |
1,646 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.7 kOhms @ 10 MHz | - | 1.5A | 50mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00121165222XY0CMC 1.8A 2LN 2.5KOHM SMD AECQ200 |
4,050 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.5 kOhms @ 10 MHz | - | 1.8A | 35mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
APPM00121165800XY0CMC 10A 2LN 230 OHM SMD AEC-Q200 |
2,315 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 2.2mOhm (Typ) | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
LG01-0346N1LFCMC 35UH 2CH EXT TEMP 16P SMD |
2,427 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|

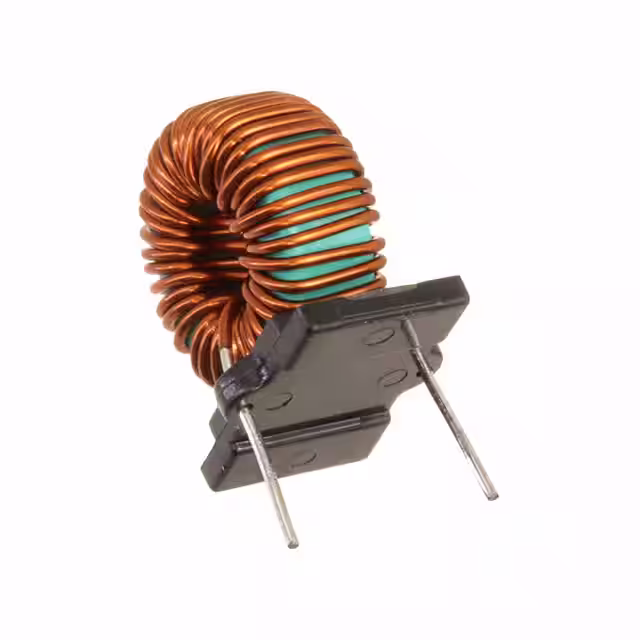

SN8S-400JACMC 46UH 2A 2LN TH |
4,188 | 1.73 |
|
Datasheet |
Horizontal, 2 PC Pin | Power Line | 2 | - | 46 µH @ 100 kHz | 2A | 52mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NH-041290CMC 129MH 400MA 2LN TH |
4,661 | 3.13 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 129 mH @ 10 kHz | 400mA | 1.85Ohm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
