Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7108CMC 2MH 2A 2LN TH |
4,021 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 2A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7109CMC 3MH 2A 2LN TH |
2,391 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 3 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

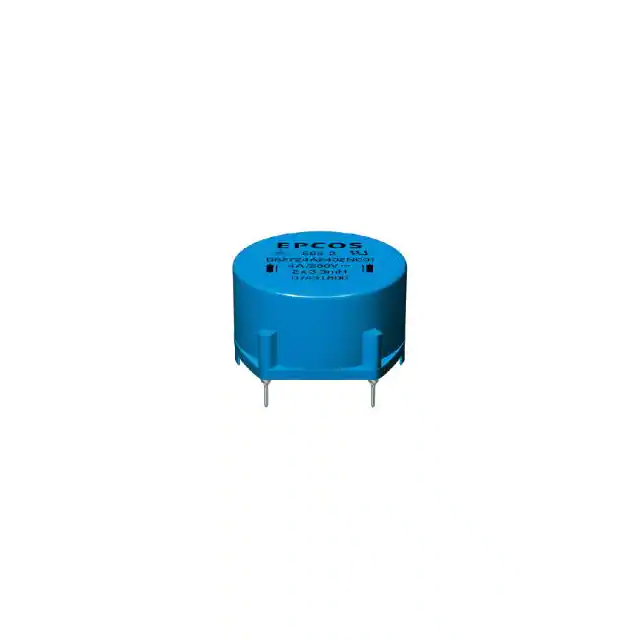

B82724A2222N020CMC 15MH 2.2A 2LN TH |
2,891 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.2A | 210mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2222N021CMC 20MH 2.2A 2LN TH |
2,284 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2.2A | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

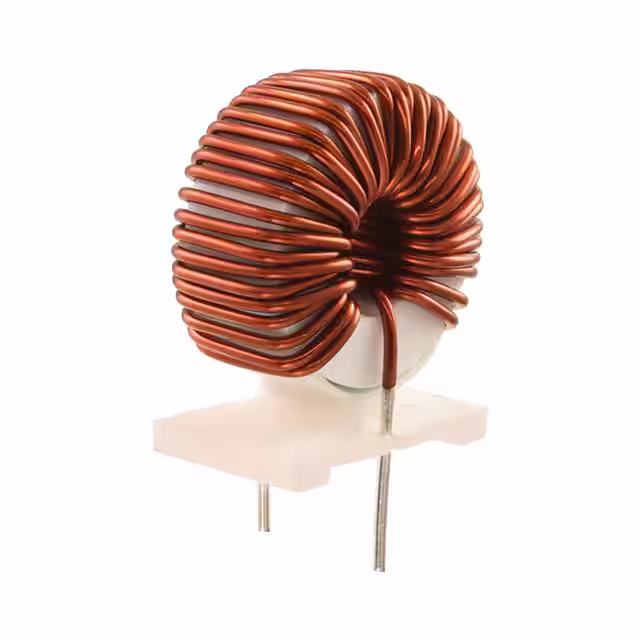

SN10-400JCMC 72UH 3A 2LN TH |
1,747 | 2.13 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 3A | 56mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
4,884 | 2.99 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

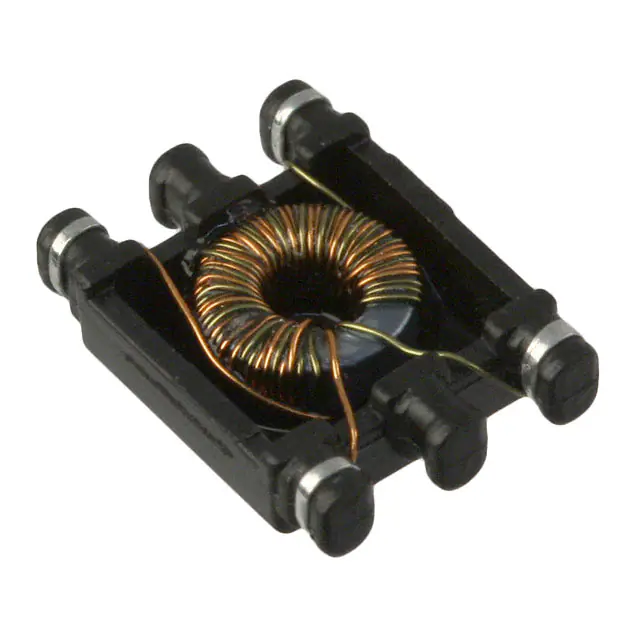

750040299CMC 47UH 3LN SMD |
2,178 | 1.86 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 3 | - | 47 µH @ 100 kHz | - | 500mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
TF3435VU-103Y5R0-01CMC 5A 2LN TH |
3,239 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A | 120mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF0804S-01CMC 1A 2LN TH |
4,662 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF0804S-02CMC 1A 2LN TH |
4,592 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 36mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
LG01-0346N2RLCMC 35UH 4CH EXT TEMP 16P SMD |
3,977 | 0.00 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 8 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG01-1006NF1RLCMC 100UH 2CH EXT TEMP 8P SMD |
1,109 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMS2-13-RCMC 1.07MH 580MA 2LN SMD |
4,613 | 2.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.07 mH @ 100 kHz | 580mA | 440mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
CMS2-0-RCMC 14UH 6A 2LN SMD |
2,738 | 2.31 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | - | 14 µH @ 100 kHz | 6A | 4mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
23Z106SMNL-TCMC 6LN SMD |
2,852 | 2.16 |
|
Datasheet |
16-SOIC (0.265", 6.73mm Width) | Signal Line | 6 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|

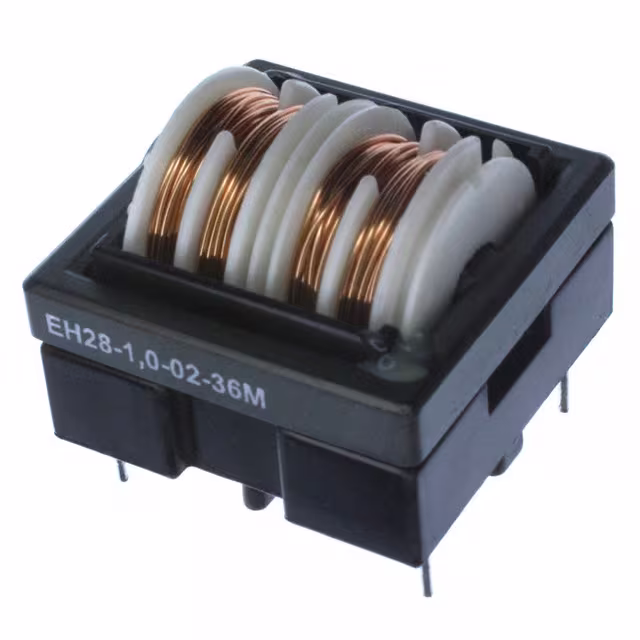

EH28-1.0-02-36MCMC 36MH 1A 2LN TH |
1,048 | 2.07 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 36 mH @ 400 Hz | 1A | 591mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82794C0106N465CMC 10MH 600MA 2LN SMD |
3,683 | 2.85 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 10 mH @ 10 kHz | 600mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82794C2106N465CMC 10MH 200MA 4LN SMD |
2,274 | 2.85 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.4Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82794C2475N465CMC 4.7MH 300MA 4LN SMD |
3,318 | 2.85 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 900mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82794C0286N465CMC 28MH 400MA 2LN SMD |
4,770 | 2.85 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 28 mH @ 10 kHz | 400mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
