Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS614-1-02CMC 120UH 1A 2LN TH |
3,969 | 3.70 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 120 µH @ 1 kHz | 1A (Typ) | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
DFKF-18-0002DFKF COMPENSATED CHOKE 0.6A 15MH |
1,191 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 600mA | 540mOhm (Typ) | - | 440V | -25°C ~ 100°C | - | cURus, UL | - | - | - |
|
CM2824E182R-10CMC 800MA 2LN 1.8KOHM SMD |
1,047 | 3.71 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 1.8 kOhms @ 100 MHz | - | 800mA | 260mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CLJ-2-203CMC 20MH 140MA 2LN SMD |
4,662 | 3.78 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | - | 20 mH @ 100 kHz | 140mA | 1.8Ohm (Typ) | 80V | 42V | -25°C ~ 85°C | - | - | - | - | - |
|
|
FL2D-80-5625.6MH @ 1 KHZ 2 LINE COMMON MODE |
3,170 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 1 kHz | 8A | 38mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
T60405R6131X402CMC 2A |
4,865 | 3.74 |
|
Datasheet |
- | - | - | - | - | 2A | - | - | - | - | - | - | - | - | - |
|

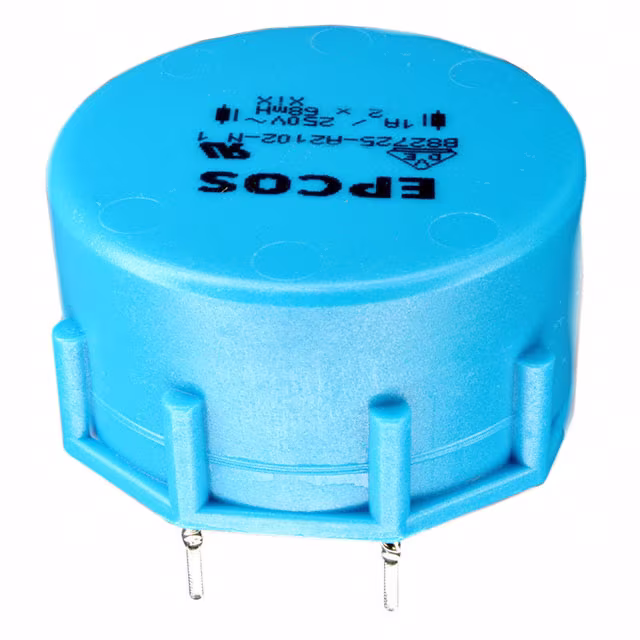

B82725A2102N001CMC 68MH 1A 2LN TH |
1,817 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82725A2122N020CMC 82MH 1.2A 2LN TH |
1,489 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 1.2A | 950mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82725A2143N020CMC 1.2MH 14A 2LN TH |
4,993 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 14A | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2402N020CMC 14MH 4A 2LN TH |
3,498 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 14 mH @ 10 kHz | 4A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2802N020CMC 3.9MH 8A 2LN TH |
1,514 | 5.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 8A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82725J2102N020CMC 68MH 1A 2LN TH |
4,075 | 5.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 1A | 1.05Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725J2202N020CMC 18MH 2A 2LN TH |
2,836 | 5.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 270mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725J2602N040CMC 7.5MH 6A 2LN TH |
4,953 | 5.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 6A | 40mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SPDL151306-800-2P-TCMC 9MA 2LN 800 OHM SMD |
3,260 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | - | 9mA | 10Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL151306-225-2P-TCMC 13MA 2LN 225 OHM SMD |
4,441 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 225 Ohms @ 100 MHz | - | 13mA | 5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL151306-1200-2P-TCMC 5MA 2LN 1.2K OHM SMD |
3,427 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 100 MHz | - | 5mA | 23Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
AMFC035-3NZ3A Common mode choke |
2,203 | 0.00 |
|
Datasheet |
- | - | - | - | - | 3A | 30mOhm (Typ) | 2000V (2kV) | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
AMFC4-6NZ6A Common mode choke |
2,399 | 0.00 |
|
Datasheet |
- | - | - | - | - | 6A | 35Ohm | 2000V (2kV) | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
PE-65950NLCMC 4LN TH |
2,809 | 3.97 |
|
Datasheet |
Vertical, 8 PC Pin | Signal Line | 4 | - | - | - | 1Ohm | - | - | - | - | - | - | - | - |
