Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FL4D-20-102A1MH @ 10 KHZ 4 LINE COMMON MODE |
2,767 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 50mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
CAV-1.2-10CMC 10MH 1.2A 2LN TH |
4,409 | 4.68 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 285mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-B5-131130H @ 10 KHZ 2 LINE COMMON MODE |
4,742 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 130 mH @ 10 kHz | 25A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|

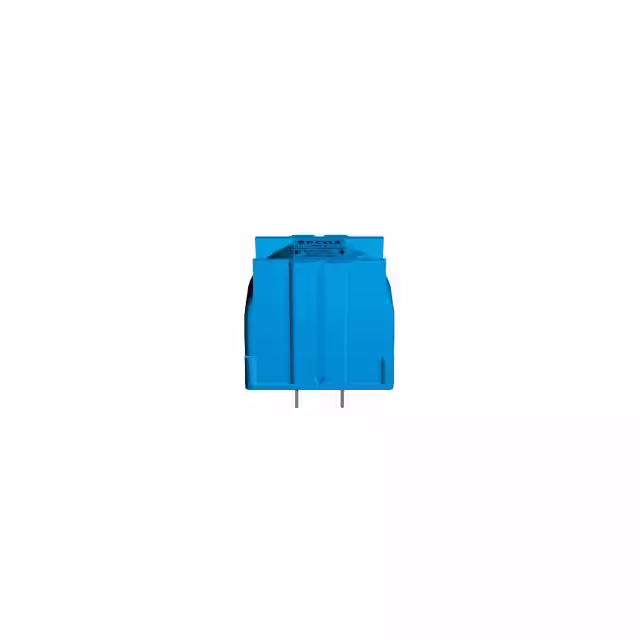

B82725J2103N021CMC 2.5MH 10A 2LN TH |
1,486 | 5.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 10A | 15mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DLW5BSN351SQ2LCMC 2A 2LN 350 OHM SMD |
4,203 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 350 Ohms @ 100 MHz | - | 2A | 40mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN102SQ2LCMC 1.5A 2LN 1K OHM SMD |
3,557 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
FL2D-30-702B7MH @ 10 KHZ 2 LINE COMMON MODE |
4,179 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 3A | 75mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
CM2824E702R-10CMC 700MA 2LN 800 OHM SMD |
1,222 | 4.06 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 800 Ohms @ 100 MHz | - | 700mA | 260mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
AMFC045-6NZ6A Common mode choke |
3,829 | 0.00 |
|
Datasheet |
- | - | - | - | - | 6A | 9mOhm (Typ) | 2000V (2kV) | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A0-3323.3MH @ 10 KHZ 2 LINE COMMON MOD |
4,576 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 10A | 15mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
PL8210TCMC 1.22A 2LN SMD |
2,212 | 4.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

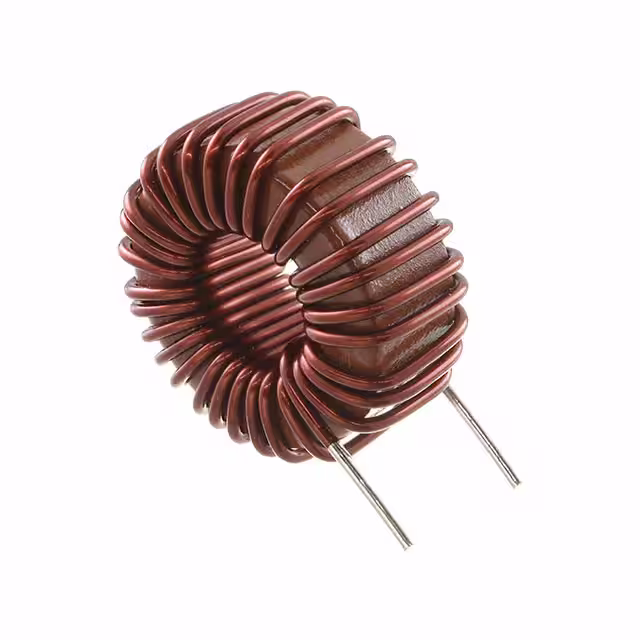

HHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
4,332 | 5.02 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 8A | 22.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ET2424-012CMC 24MH 600MA 2LN TH ESD |
2,026 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 24 mH @ 10 kHz | 600mA | 1.6Ohm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2424-013CMC 9.2MH 700MA 2LN TH ESD |
4,133 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.2 mH @ 10 kHz | 700mA | 750mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2424-014CMC 7.8MH 900MA 2LN TH ESD |
1,588 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.8 mH @ 10 kHz | 900mA | 500mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2424-015CMC 5.2MH 1A 2LN TH ESD |
2,543 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 10 kHz | 1A | 340mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2424-016CMC 3.6MH 1.5A 2LN TH ESD |
2,951 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 10 kHz | 1.5A | 250mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2424-017CMC 3.2MH 2A 2LN TH ESD |
2,125 | 5.13 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 10 kHz | 2A | 200mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
ET2432-019CMC 24MH 600MA 2LN TH ESD |
4,772 | 5.13 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 24 mH @ 10 kHz | 600mA | 1.6Ohm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET2432-020CMC 9.2MH 700MA 2LN TH ESD |
4,488 | 5.13 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.2 mH @ 10 kHz | 700mA | 750mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
