Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMFW24-1JZCMC 2LN TH INDUSTRIAL |
1,271 | 9.18 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 9V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
TCK-100CMC TH |
3,832 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PL8801NLTCMC 1.5A 2LN SMD |
2,235 | 6.90 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1.5A | 60mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8801TCMC 1.5A 2LN SMD |
2,677 | 6.90 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1.5A | 60mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMF1-5003SMCOMMON MODE TRANSFORMER CHOKE |
1,681 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 1A | 192mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

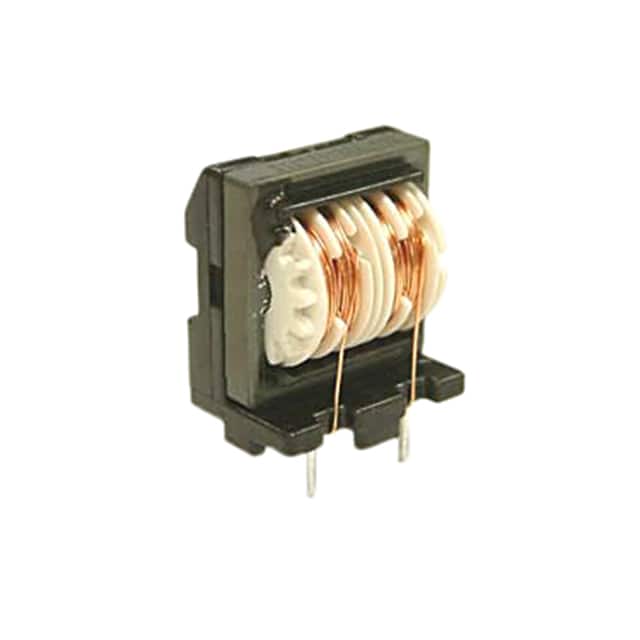

ET3542-051CMC 33MH 1.5A 2LN TH ESD |
3,376 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1.5A | 500mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET3542-052CMC 22MH 1.8A 2LN TH ESD |
2,836 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 1.8A | 400mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET3542-053CMC 18MH 2A 2LN TH ESD |
3,053 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 300mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET3542-055CMC 10MH 2.7A 2LN TH ESD |
1,757 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.7A | 150mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
ET3542-056CMC 8.1MH 3A 2LN TH ESD |
2,625 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.1 mH @ 10 kHz | 3A | 120mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
PL8804NLTCMC 500MA 2LN SMD |
2,856 | 7.49 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 500mA | 850mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8804TCMC 500MA 2LN SMD |
1,404 | 7.49 |
|
- |
Nonstandard | Power Line | 2 | - | - | 500mA | 850mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
TF3524B-202Y8R0-01CMC 8A 2LN TH |
1,455 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 8A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
PL8220NLTPOWER |
2,061 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 10 kHz | 6A | 9.4mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMF1-7503SMCOMMON MODE TRANSFORMER CHOKE |
4,943 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 10 kHz | 700mA | 354mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PL8217NLPOWER |
1,530 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 486 µH @ 10 kHz | 4.2A | 16mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8217POWER |
3,821 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 486 µH @ 10 kHz | 4.2A | 16mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
FL2D-D0-561560H @ 10 KHZ 2 LINE COMMON MODE |
1,515 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 560 mH @ 10 kHz | 40A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
PL8215NLPOWER |
3,112 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 536 µH @ 10 kHz | 3.8A | 17.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8215POWER |
2,019 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 536 µH @ 10 kHz | 3.8A | 17.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
