Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82625B2102M001CMC 5MH 1A 2LN TH PFC |
3,756 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | 1.45Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|

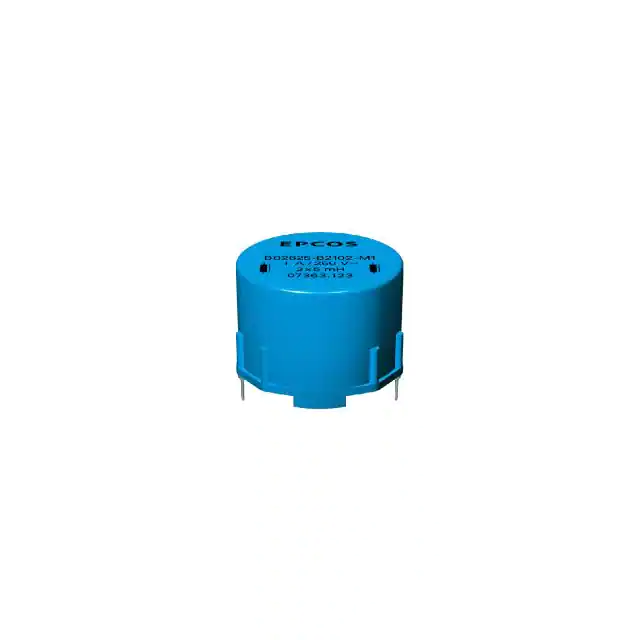

B82625B2202M001CMC 1.2MH 2A 2LN TH PFC |
3,724 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 2A | 420mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2302M001CMC 700UH 3A 2LN TH PFC |
2,353 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 3A | 210mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2402M001CMC 400UH 4A 2LN TH PFC |
3,592 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 4A | 120mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2502M001CMC 250UH 5A 2LN TH PFC |
1,904 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 250 µH @ 100 kHz | 5A | 72mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
CM9900R-154CMC 150UH 2.8A 2LN TH |
1,742 | 6.90 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 µH @ 1 kHz | 2.8A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
TCK-177PWR SUPP, SUPPLIES & COND |
2,001 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 398 µH @ 100 kHz | 10.05A | 9mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
PL8220NLPOWER |
3,780 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 10 kHz | 6A | 9.4mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
TF5228TU-202Y10R0-01CMC 10A 3LN TH |
3,897 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | - | 10A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-103Y3R0-01CMC 3A 2LN TH |
3,143 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-301Y20R0-01CMC 20A 2LN TH |
3,026 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 20A | 5mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-402Y6R0-01CMC 6A 2LN TH |
4,702 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 6A | 35mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-502Y5R0-01CMC 5A 2LN TH |
1,432 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-601Y15R0-01CMC 15A 2LN TH |
4,055 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 15A | 7mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524B-702Y4R0-01CMC 4A 2LN TH |
2,977 | 8.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 4A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
CMF1-1004SMCOMMON MODE TRANSFORMER CHOKE |
1,723 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 500mA | 658mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF1-1004SMLFCOMMON MODE TRANSFORMER CHOKE |
2,686 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 500mA | 658mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CAF-10-0.10CHOKE COM MODE 2X.10MH 10A T/H |
3,259 | 0.00 |
|
- |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 100 µH @ 10 kHz | 10A | 2mOhm (Typ) | - | - | -40°C ~ 125°C | - | EN, UL, VDE | - | - | - |
|
|
PL8800NLTCMC 3.6A 2LN SMD |
3,240 | 7.81 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 3.6A | 50mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8800TCMC 3.6A 2LN SMD |
1,423 | 7.81 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 3.6A | 50mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
