Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8117CMC 36MH 2.9A 2LN TH |
1,409 | 12.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A5-4724.7MH @ 10 KHZ 2 LINE COMMON MOD |
1,443 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 15A | 20mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6123X2266123X226 |
1,991 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 970 Ohms @ 100 kHz | 1.01 mH @ 100 kHz | 25A | 2.2mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6122X0086122X008 |
4,624 | 0.00 |
|
- |
Horizontal, 6 PC Pin | - | 2 | - | 9 mH @ 10 kHz | 10A | 10mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
CMF2-7503SMCOMMON MODE TRANSFORMER CHOKE |
4,149 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 750 µH @ 10 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
FD2D-40-2022MH @ 10 KHZ 1 LINE COMMON MODE |
1,874 | 0.00 |
|
Datasheet |
Horizontal, 2 PC Pin | Power Line | 2 | - | 2 H @ 10 kHz | 4A | 230mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF3-1004SMCOMMON MODE TRANSFORMER CHOKE |
3,922 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 1 kHz | 4A | 45mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF2-1004SMCOMMON MODE TRANSFORMER CHOKE |
4,987 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 1 mH @ 10 kHz | 1.2A | 210mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PL8802NLTCMC 2.5A 2LN SMD |
4,172 | 7.63 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8802TCMC 2.5A 2LN SMD |
4,898 | 7.63 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
AMFC004-40NZ40A Common mode choke |
1,206 | 0.00 |
|
Datasheet |
- | - | - | - | - | 40A | 2Ohm (Typ) | 2000V (2kV) | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF2-2503SMCOMMON MODE TRANSFORMER CHOKE |
2,973 | 0.00 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | 250 µH @ 10 kHz | 2.4A | 55mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
TCK-103INDUCTORS |
3,173 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 285 µH @ 100 kHz | 16A | 6mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-C5-1421400H @ 10 KHZ 2 LINE COMMON MOD |
1,945 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.4 H @ 10 kHz | 35A | 5mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
8118CMC 7.3MH 9.3A 2LN TH |
3,209 | 1.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8119CMC 4MH 14.5A 2LN TH |
1,210 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8120CMC 2.4MH 17A 2LN TH |
3,423 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

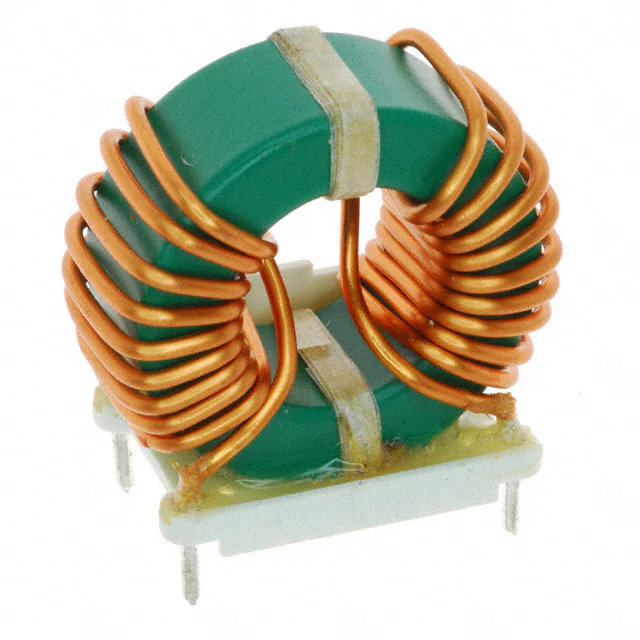

8121CMC 1MH 20A 2LN TH |
4,484 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

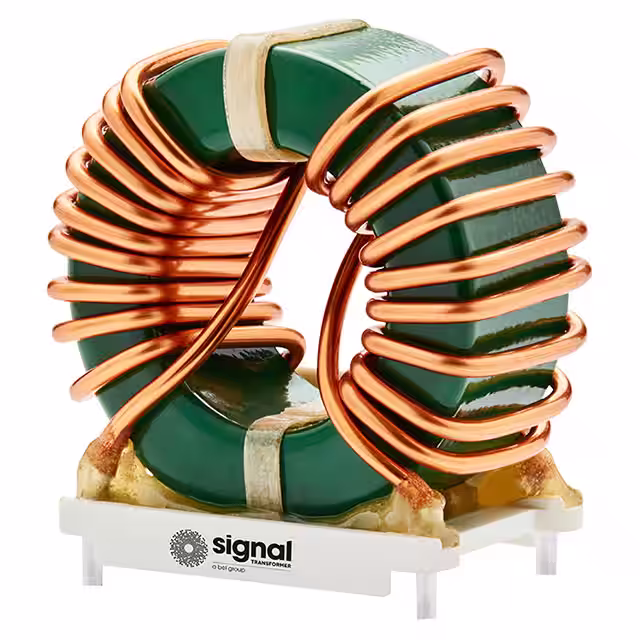

HCTC-1-20CMC 1MH 20A 2LN TH |
3,154 | 7.49 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A5-5625.6MH @ 10 KHZ 2 LINE COMMON MOD |
1,316 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 15A | 20mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
