Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

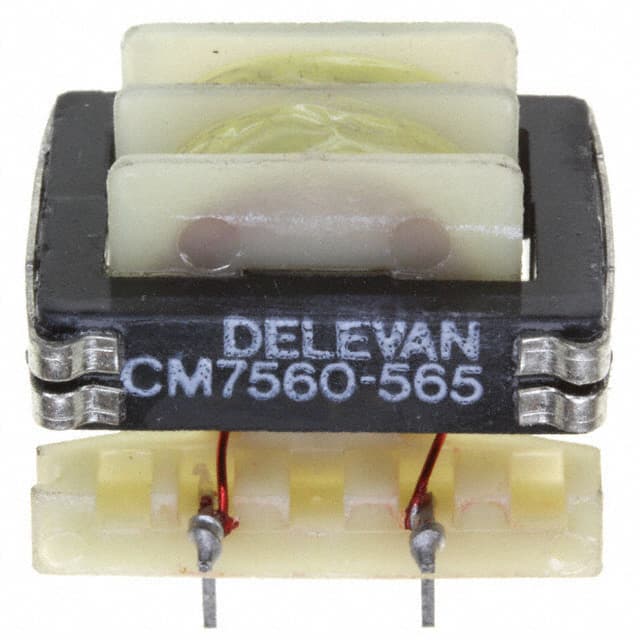

CM7560-565CMC 5.6MH 880MA 2LN TH |
3,167 | 17.28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 880mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

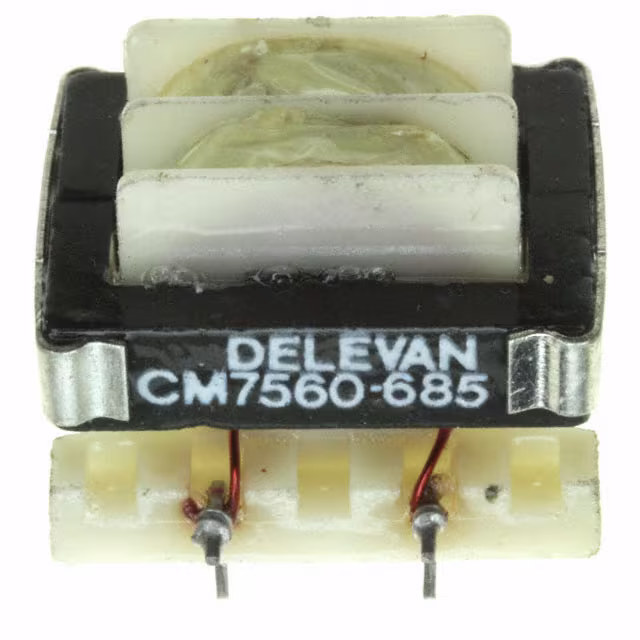

CM7560-685CMC 6.8MH 880MA 2LN TH |
1,597 | 17.28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 880mA | 600mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560-825CMC 8.2MH 880MA 2LN TH |
1,487 | 17.28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 1 kHz | 880mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

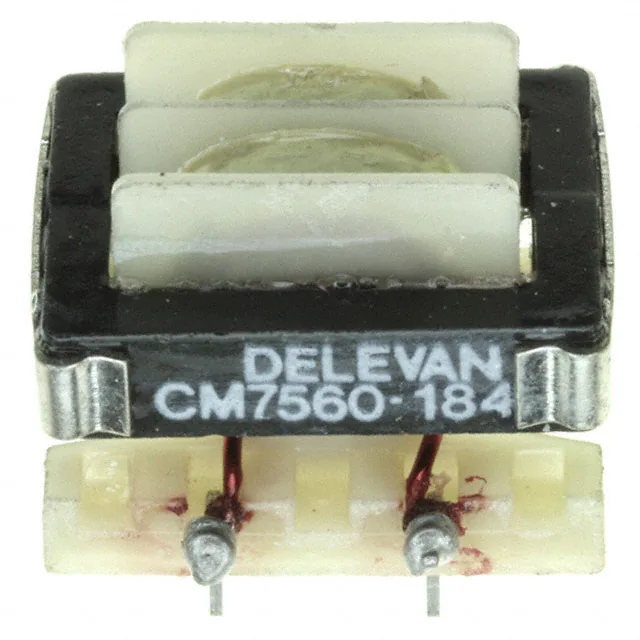

CM7560-184CMC 180UH 4.5A 2LN TH |
1,643 | 17.28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 180 µH @ 1 kHz | 4.5A | 19mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560R-104CMC 100UH 5.5A 2LN TH |
2,756 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-105CMC 1MH 2.8A 2LN TH |
3,852 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 2.8A | 65mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-124CMC 120UH 5.5A 2LN TH |
1,991 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 µH @ 1 kHz | 5.5A | 15mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-125CMC 1.2MH 2.2A 2LN TH |
1,401 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 2.2A | 95mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-154CMC 150UH 5.5A 2LN TH |
4,030 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 µH @ 1 kHz | 5.5A | 15mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-155CMC 1.5MH 1.7A 2LN TH |
2,951 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 1 kHz | 1.7A | 115mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-184CMC 180UH 4.5A 2LN TH |
1,662 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 180 µH @ 1 kHz | 4.5A | 19mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-185CMC 1.8MH 1.7A 2LN TH |
2,461 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.8 mH @ 1 kHz | 1.7A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-224CMC 220UH 4.5A 2LN TH |
2,317 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 220 µH @ 1 kHz | 4.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-225CMC 2.2MH 1.4A 2LN TH |
3,202 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 1.4A | 170mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-274CMC 270UH 4.5A 2LN TH |
4,062 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 270 µH @ 1 kHz | 4.5A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-275CMC 2.7MH 1.4A 2LN TH |
1,701 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 1 kHz | 1.4A | 180mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-334CMC 330UH 3.5A 2LN TH |
3,323 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 330 µH @ 1 kHz | 3.5A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-335CMC 3.3MH 1.1A 2LN TH |
2,510 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 1.1A | 320mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-395CMC 3.9MH 1.1A 2LN TH |
1,583 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 1.1A | 400mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-474CMC 470UH 3.5A 2LN TH |
3,386 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 470 µH @ 1 kHz | 3.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
