Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1011-254CMC 250UH 10A 2LN TH |
3,545 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 250 µH @ 1 kHz | 10A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-504CMC 500UH 8.6A 2LN TH |
2,707 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 500 µH @ 1 kHz | 8.6A | 8mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-754CMC 750UH 6.7A 2LN TH |
1,904 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 750 µH @ 1 kHz | 6.7A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-105CMC 1MH 5.7A 2LN TH |
4,398 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 5.7A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-175CMC 1.7MH 3.1A 2LN TH |
3,277 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-255CMC 2.5MH 2.8A 2LN TH |
2,192 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 2.8A | 73mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-335CMC 3.3MH 2.2A 2LN TH |
4,130 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2.2A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-505CMC 5MH 2A 2LN TH |
1,075 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-755CMC 7.5MH 1.4A 2LN TH |
3,985 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 7.5 mH @ 1 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-106CMC 10MH 1.2A 2LN TH |
3,702 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

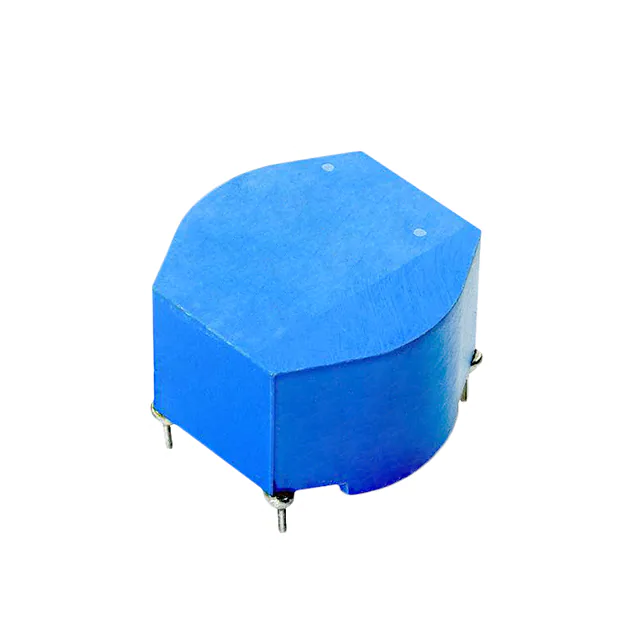

CM1011R-104CMC 100UH 12A 2LN TH |
1,554 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 12A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-105CMC 1MH 5.7A 2LN TH |
3,663 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 5.7A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-106CMC 10MH 1.2A 2LN TH |
4,656 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-175CMC 1.7MH 3.1A 2LN TH |
3,290 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-254CMC 250UH 10A 2LN TH |
1,482 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 250 µH @ 1 kHz | 10A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-335CMC 3.3MH 2.2A 2LN TH |
4,541 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2.2A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-505CMC 5MH 2A 2LN TH |
1,261 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-754CMC 750UH 6.7A 2LN TH |
3,682 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 750 µH @ 1 kHz | 6.7A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-755CMC 7.5MH 1.4A 2LN TH |
1,628 | 20.20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 7.5 mH @ 1 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
DFK-40-0005CMC 15A 2LN TH |
2,985 | 23.28 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 15A | 10mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
